Product Features
Product Description

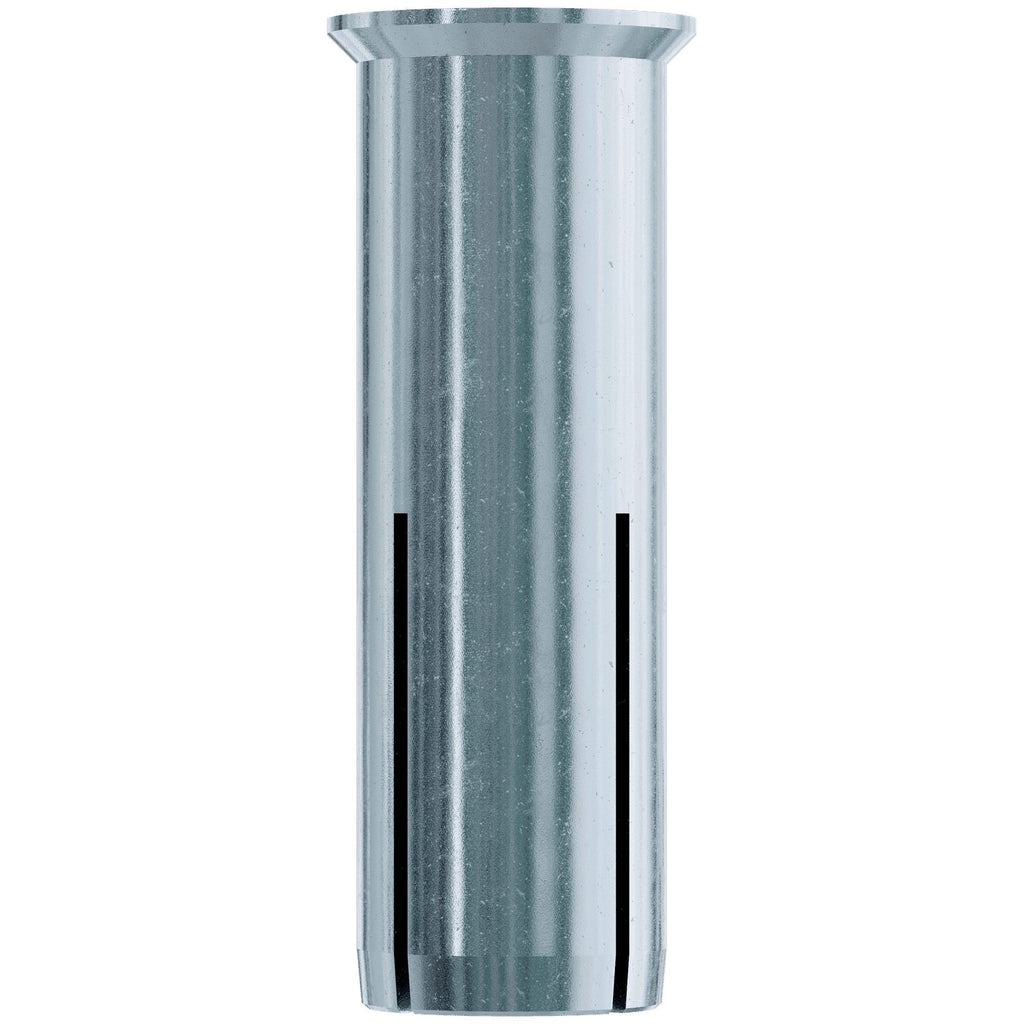

Simpson Strong-Tie DIABL50 DIAB Lipped Drop-In Internally Threaded Anchor for 1/2-in. Rod is a displacement-controlled expansion anchor engineered by Simpson Strong-Tie for fast, accurate installation into concrete and masonry base materials. The improved geometry of the preassembled expansion plug delivers enhanced setting capability, requiring minimum effort and up to 40% fewer hammer hits than previous drop-in anchor designs - making it an economical choice for threaded rod connections requiring flush, lipped installation.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Lipped for flush installation
- Zinc-plated carbon steel construction for corrosion resistance
- Length: 2 in.
- Drill bit diameter: 5/8 in.
- Rod diameter: 1/2 in.
Specifications
- MPN: DIABL50
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Length (in.): 2
- Thread Length (in.): 3/4
- TPI: 13
- Bolt/Rod Diameter (in.): 1/2
- Drill Bit Diameter (in.): 5/8
- Anchor Type: Displacement-Controlled Expansion Anchor
- Packaging: Packs of 50 and Cartons of 200
- Country of Origin: China
Frequently Asked Questions
- What tools are required to install the Simpson Strong-Tie DIABL50 anchor?
- The DIABL50 installs with the DIABST hand-setting tool model DIABST50 or the power-setting tool model DIABST50-SDS. These dedicated setting tools drive the expansion plug toward the bottom of the anchor to properly displace and set it within the base material.
- How do I know when the DIABL50 anchor has been correctly set?

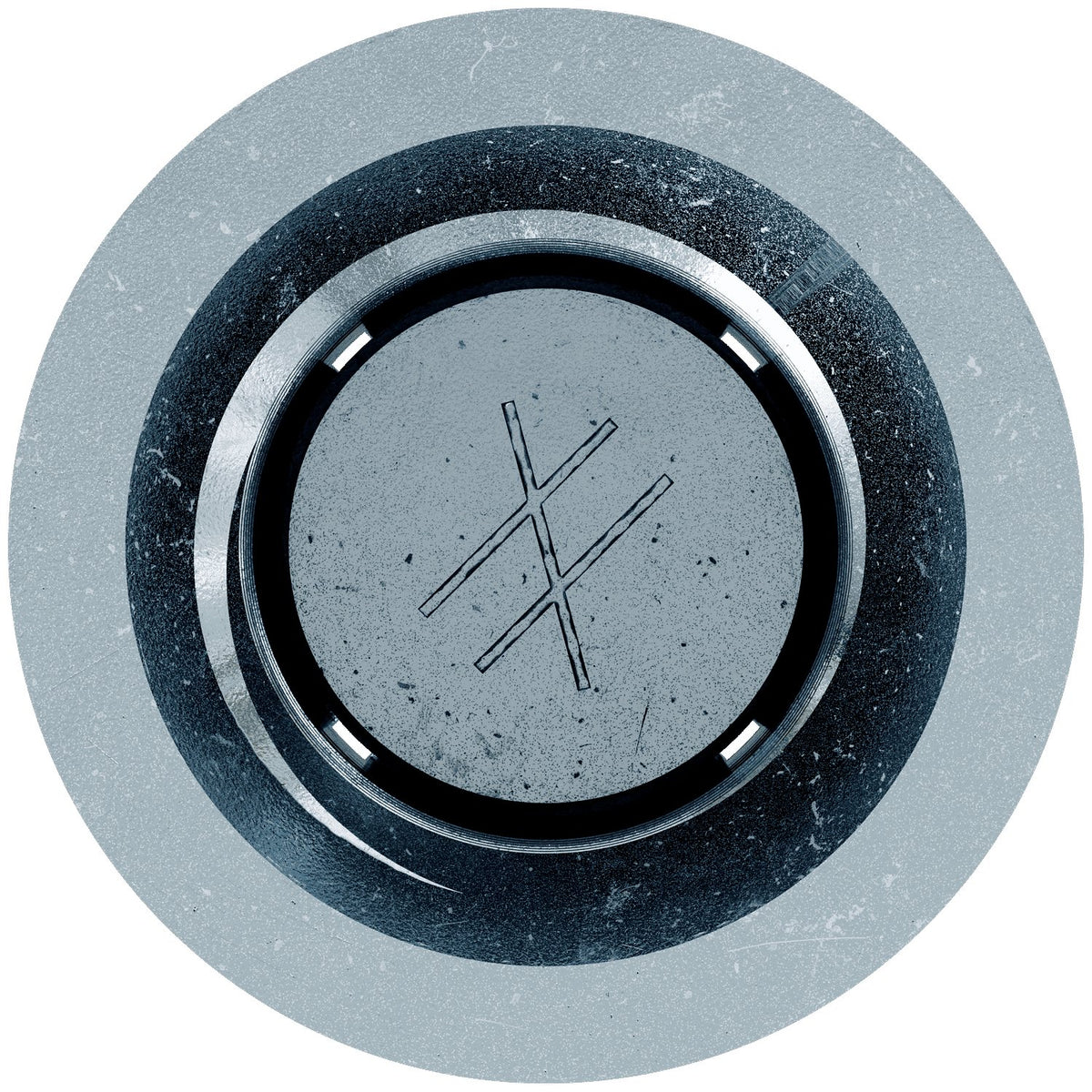

- The DIAB anchor features a positive-set marking system located at the top of the anchor. This indication marker provides a clear visual confirmation that the anchor has been properly and fully set in the base material, eliminating guesswork during installation.
- What size drill bit is required for the DIABL50 drop-in anchor?
- A 5/8-in. drill bit is required to prepare the hole for the DIABL50 anchor. The anchor itself accepts a 1/2-in. threaded rod and has a thread pitch of 13 TPI with a thread length of 3/4 in.
- What does "lipped" mean for the DIABL50, and why does it matter?
- The lipped design of the DIABL50 allows the anchor to sit flush with the surface of the base material upon installation. This ensures a clean, level finish that is ideal for applications where a protruding anchor would interfere with the connected hardware or structural component.
Note: Product dimensions may differ from picture. Please see item description for specifications.
