Product Features
Product Description

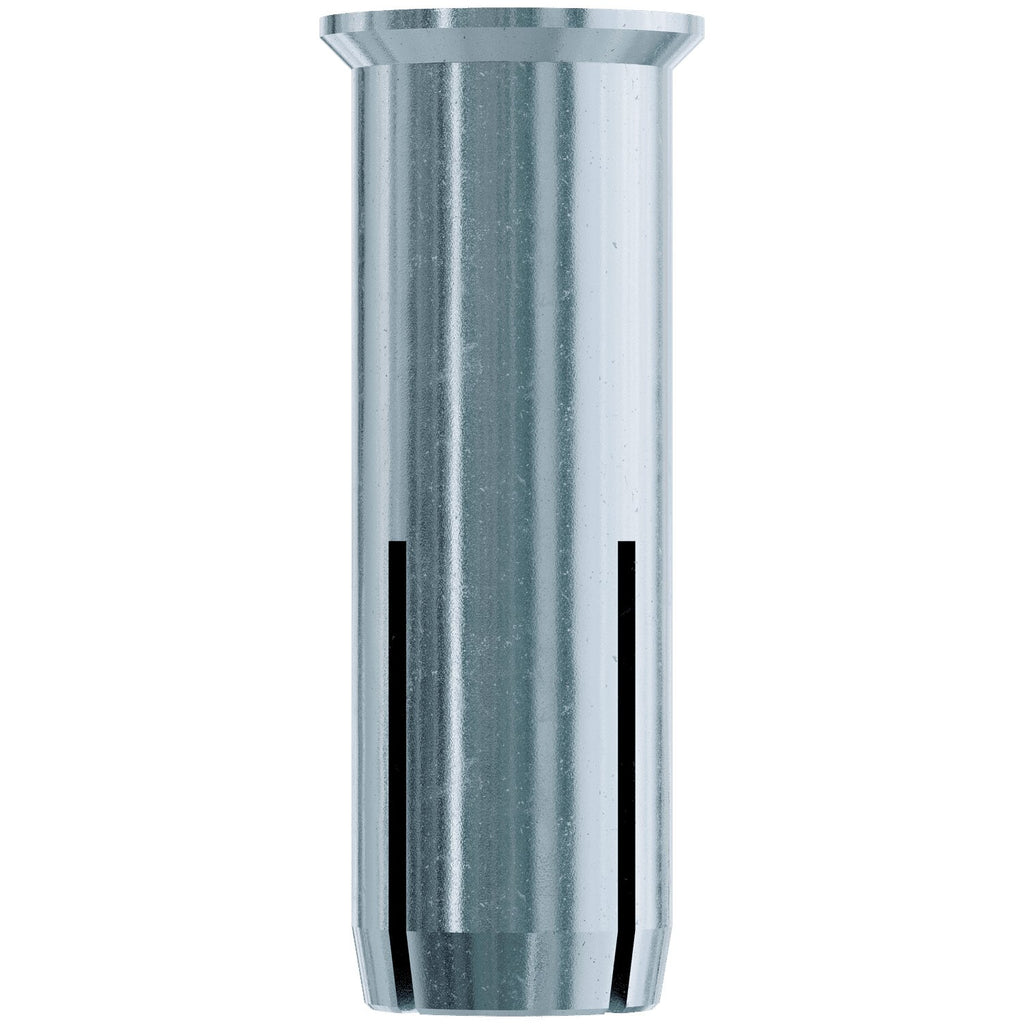

Simpson Strong-Tie DIABL37 DIAB Lipped Drop-In Internally Threaded Anchor for 3/8-in. Rod is a displacement-controlled expansion anchor engineered by Simpson Strong-Tie for fast, reliable flush installation into concrete and masonry base materials. Featuring improved geometry for smooth and accurate placement, this internally threaded drop-in anchor sets with 40% fewer hammer hits than previous designs - making it the ideal choice for contractors and installers who demand both speed and confidence on the job.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Lipped for flush installation
- Zinc-plated carbon steel construction
- Length: 1-9/16 in.
- Drill bit diameter: 1/2 in.
- Rod diameter: 3/8 in.
- Installs with DIABST hand-setting tool model DIABST37 or power-setting tool model DIABST37-SDS
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: DIABL37
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Length: 1-9/16 in.
- Thread Length: 5/8 in.
- TPI: 16
- Bolt / Rod Diameter: 3/8 in.
- Drill Bit Diameter: 1/2 in.
- Packaging: Packs of 50 and Cartons of 250
- Country of Origin: China
Frequently Asked Questions
- How do I know when the DIABL37 anchor is properly set?

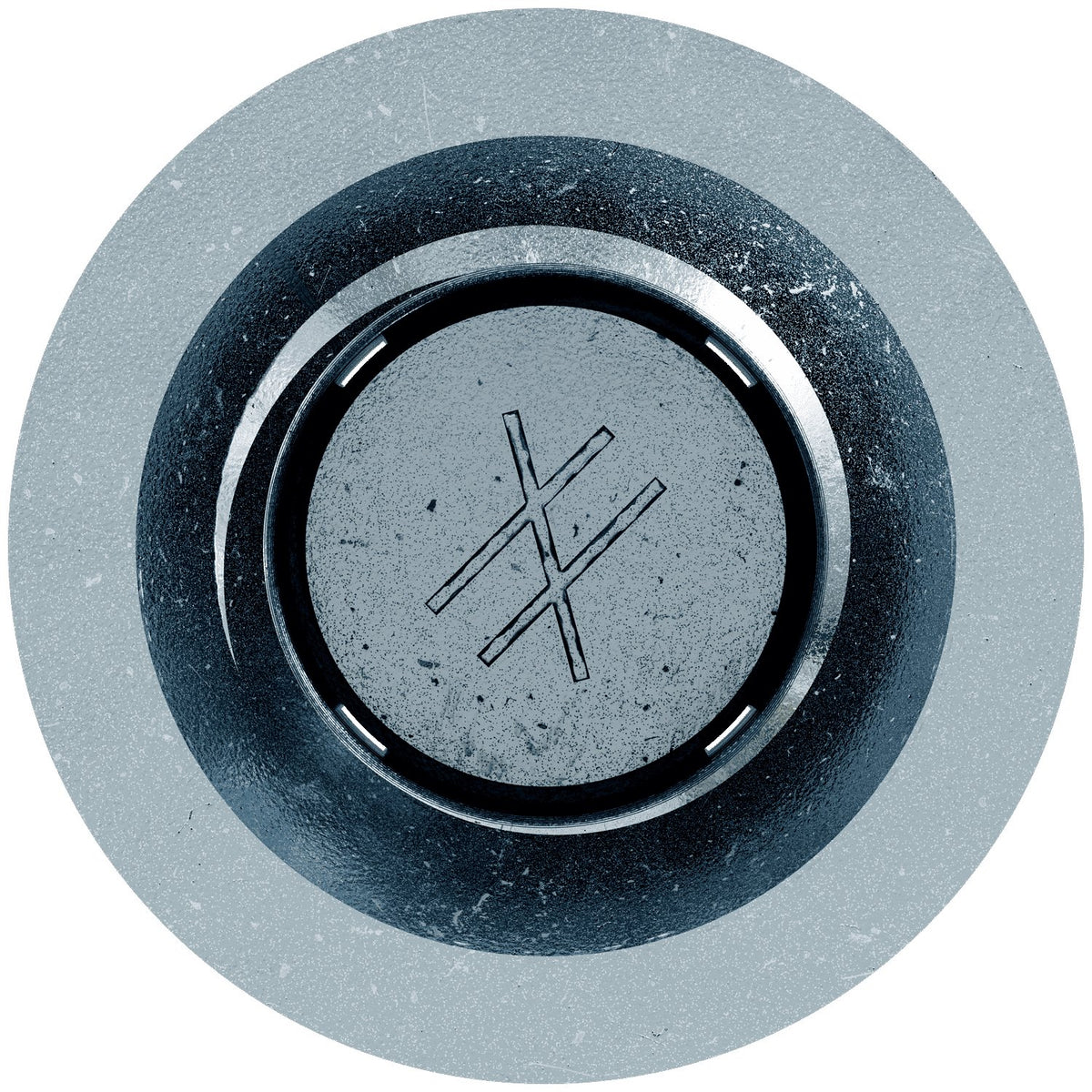

- The DIABL37 features a positive-set marking system located at the top of the anchor. Once the anchor is driven to the correct depth, the marking indicator becomes visible, confirming that proper installation has taken place - eliminating guesswork on the job site.
- What tools are required to install the DIABL37 drop-in anchor?
- The DIABL37 installs with the DIABST hand-setting tool model DIABST37 or the power-setting tool model DIABST37-SDS. These setting tools drive the expansion plug toward the bottom of the anchor to complete the displacement-controlled expansion process.
- What drill bit size is needed to install the DIABL37 anchor?
- A 1/2-in. diameter drill bit is required to create the correct hole size for the DIABL37 anchor. This ensures a proper fit and optimal expansion within the base material.
- What rod or bolt size is compatible with the DIABL37 internally threaded anchor?
- The DIABL37 is designed to accept a 3/8-in. diameter threaded rod or bolt. The anchor features 3/8-in. internal threading with 16 TPI (threads per inch) and a 5/8-in. thread length to provide a secure connection.
Note: Product dimensions may differ from picture. Please see item description for specifications.
