Product Features
Product Description

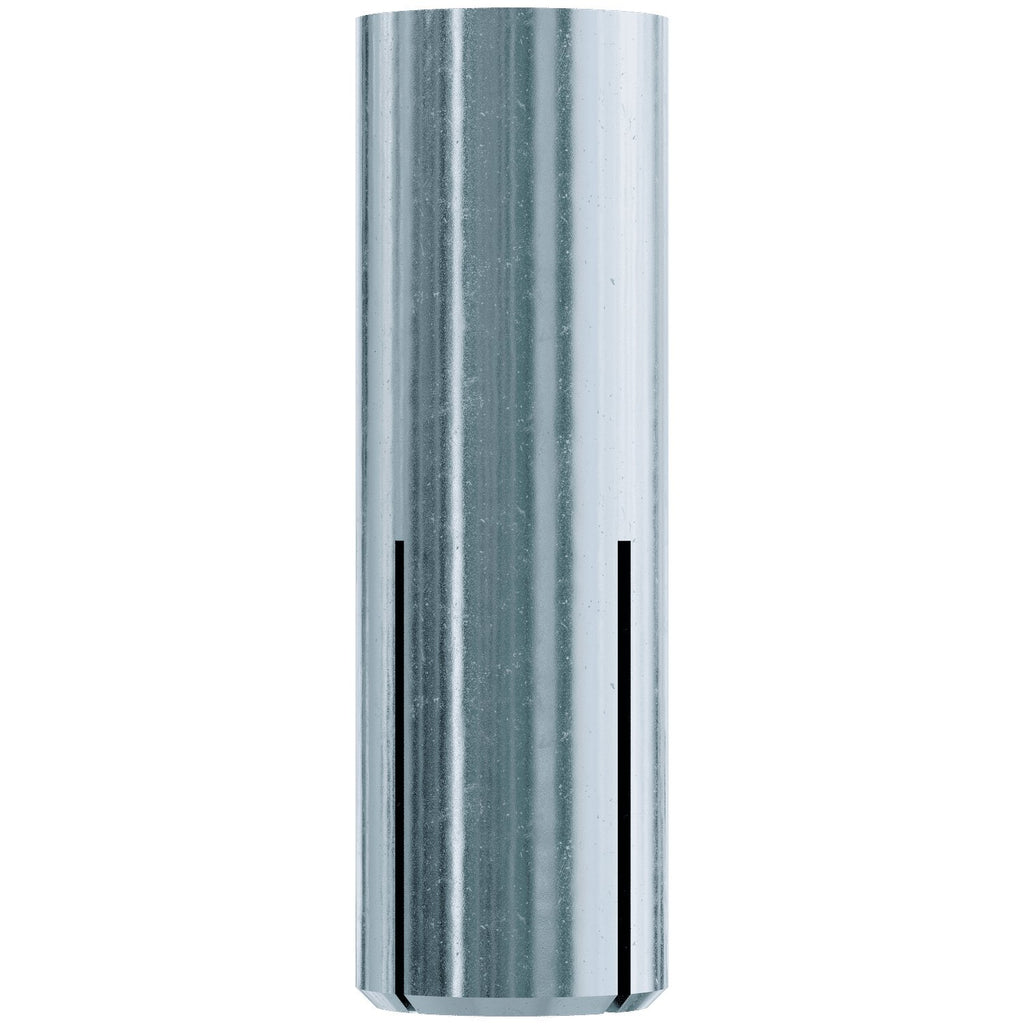

Simpson Strong-Tie DIAB75C DIAB Drop-In Internally Threaded Coil-Thread Anchor for 3/4-in. Rod is a displacement-controlled expansion anchor engineered by Simpson Strong-Tie for fast, accurate installation into concrete and masonry base materials. Featuring improved geometry in its preassembled expansion plug, this internally threaded drop-in anchor sets with 40% fewer hammer hits than previous designs, making it an efficient and economical choice for securing 3/4-in. coil-thread rod.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Coil-thread for 3/4 in. coil-thread rod
- Zinc-plated carbon steel
- Length: 3-1/8 in.
- Drill bit diameter: 1 in.
- Rod diameter: 3/4 in.
Specifications
- MPN: DIAB75C
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Length (in.): 3-1/8
- Thread Length (in.): 1-1/4
- TPI: 4-1/2
- Bolt / Rod Diameter (in.): 3/4
- Drill Bit Diameter (in.): 1
- Packaging: Packs of 20 and Cartons of 80
- Country of Origin: China
Install With
- Simpson Strong-Tie DIAB75C Drop-In Coil-Thread Anchors
- Installs with DIABST hand-setting tool model DIABST75 (sold separately)
Frequently Asked Questions
- What type of rod is the DIAB75C compatible with?
- The DIAB75C is designed for use with 3/4 in. coil-thread rod, featuring internal coil-thread geometry to ensure a secure and compatible connection.
- What drill bit size is required to install the DIAB75C?
- Installation of the DIAB75C requires a 1 in. diameter drill bit to properly prepare the hole in the base material.
- How do I know when the DIAB75C anchor is properly set?

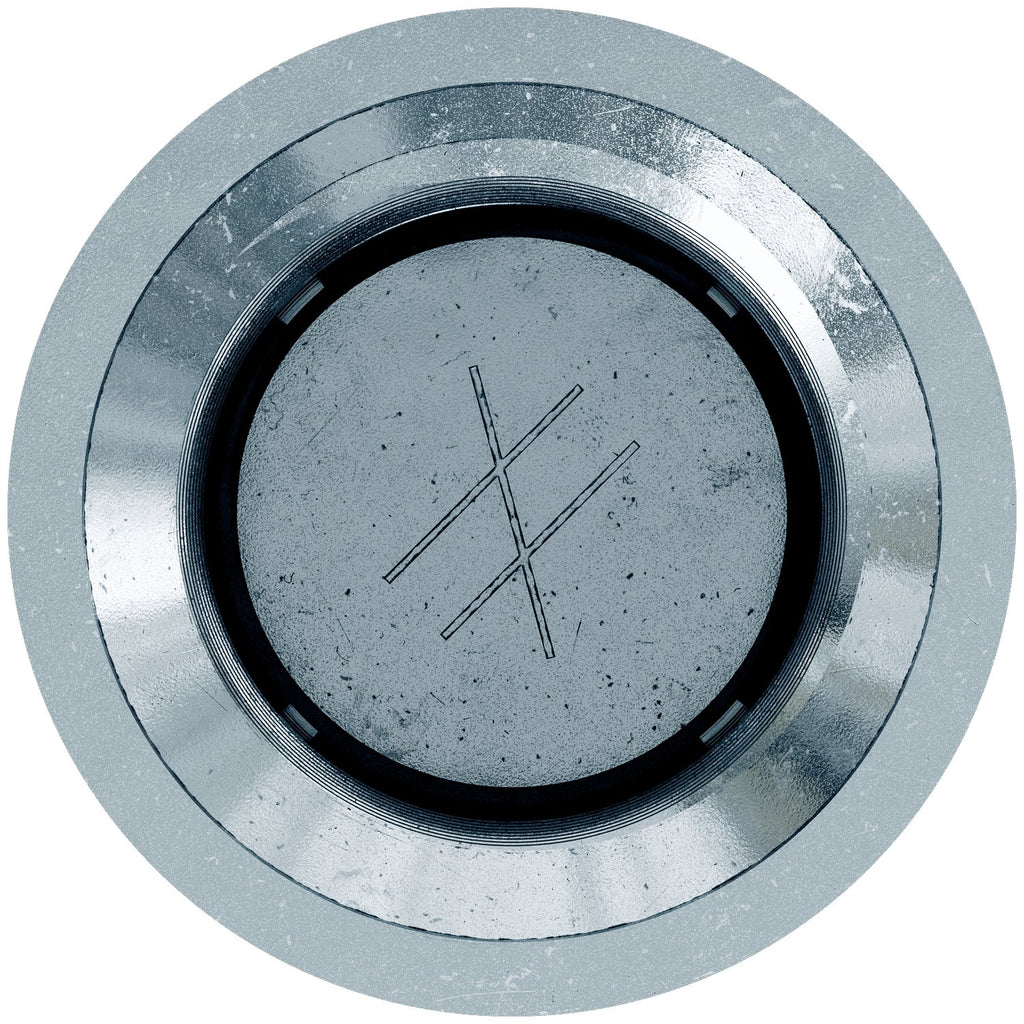

- The DIAB75C features a positive-set marking system - an indication marker located at the top of the anchor that clearly confirms when the anchor has been properly and fully set.
- What tool is used to install the DIAB75C drop-in anchor?
- The DIAB75C installs with the DIABST hand-setting tool, model DIABST75, which drives the expansion plug toward the bottom of the anchor to achieve proper displacement-controlled expansion.
Note: Product dimensions may differ from picture. Please see item description for specifications.
