Product Features
Product Description

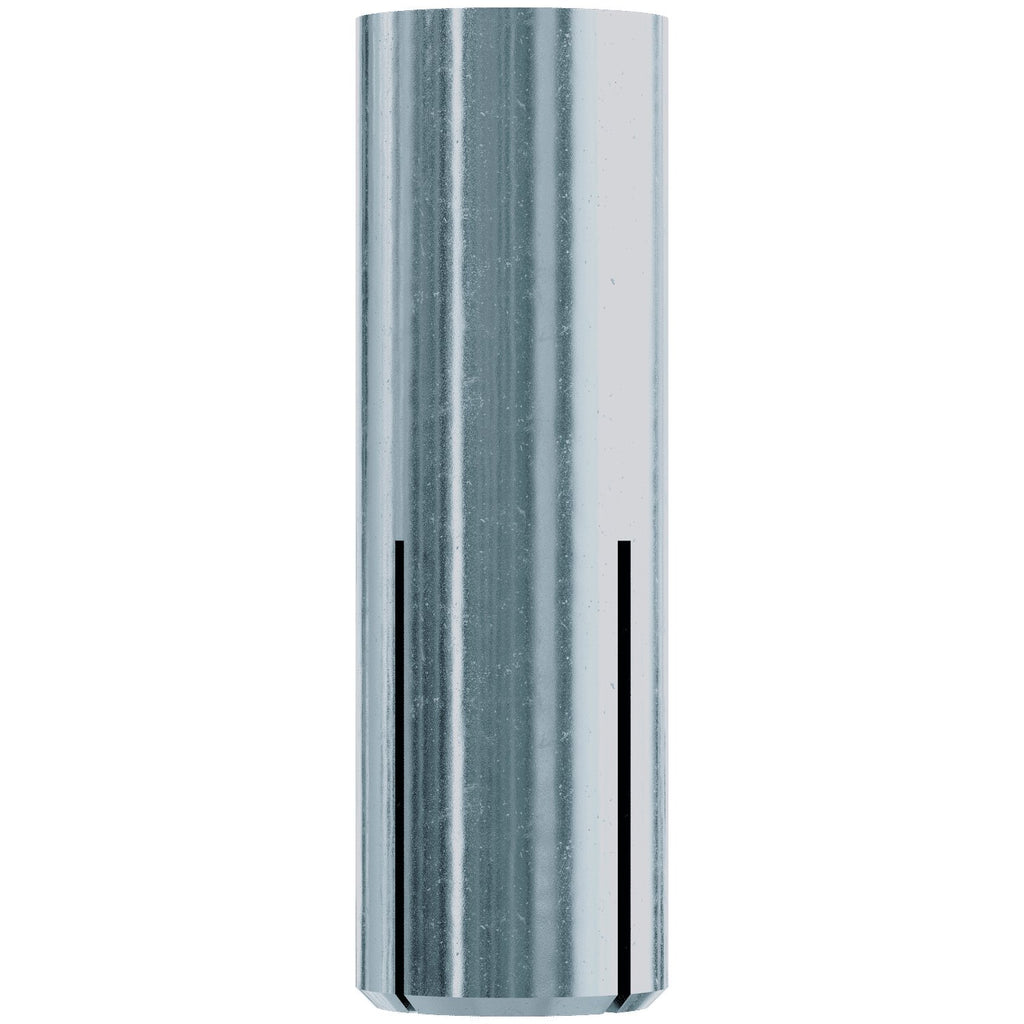

Simpson Strong-Tie DIAB75 3/4-in. Drop-In Internally Threaded Anchor is a displacement-controlled expansion anchor from Simpson Strong-Tie engineered for smooth, accurate installation into concrete base materials. Featuring improved geometry in its preassembled expansion plug, this internally threaded drop-in anchor sets with 40% fewer hammer hits than previous designs, making it one of the fastest and most economical drop-in anchors available for 3/4-in. threaded rod applications.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Zinc-plated carbon steel construction for durability and corrosion resistance
- Length: 3-1/8 in.
- Drill bit diameter: 1 in.
- Rod diameter: 3/4 in.
- Displacement-controlled expansion mechanism ensures consistent, reliable setting performance
- Installs with DIABST hand-setting tool model DIABST75
Specifications
- MPN: DIAB75
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Length: 3-1/8 in.
- Thread Length: 1-1/4 in.
- TPI: 10
- Bolt/Rod Diameter: 3/4 in.
- Drill Bit Diameter: 1 in.
- Packaging: Packs of 20 and Cartons of 80
- Country of Origin: China
Frequently Asked Questions
- What size threaded rod does the DIAB75 accept?
- The DIAB75 is designed to accept a 3/4-in. diameter threaded rod with 10 threads per inch (TPI).
- What drill bit size is required to install the DIAB75?
- A 1-in. diameter drill bit is required to bore the hole for proper installation of the DIAB75 drop-in anchor.
- How do I know when the DIAB75 anchor is properly set?

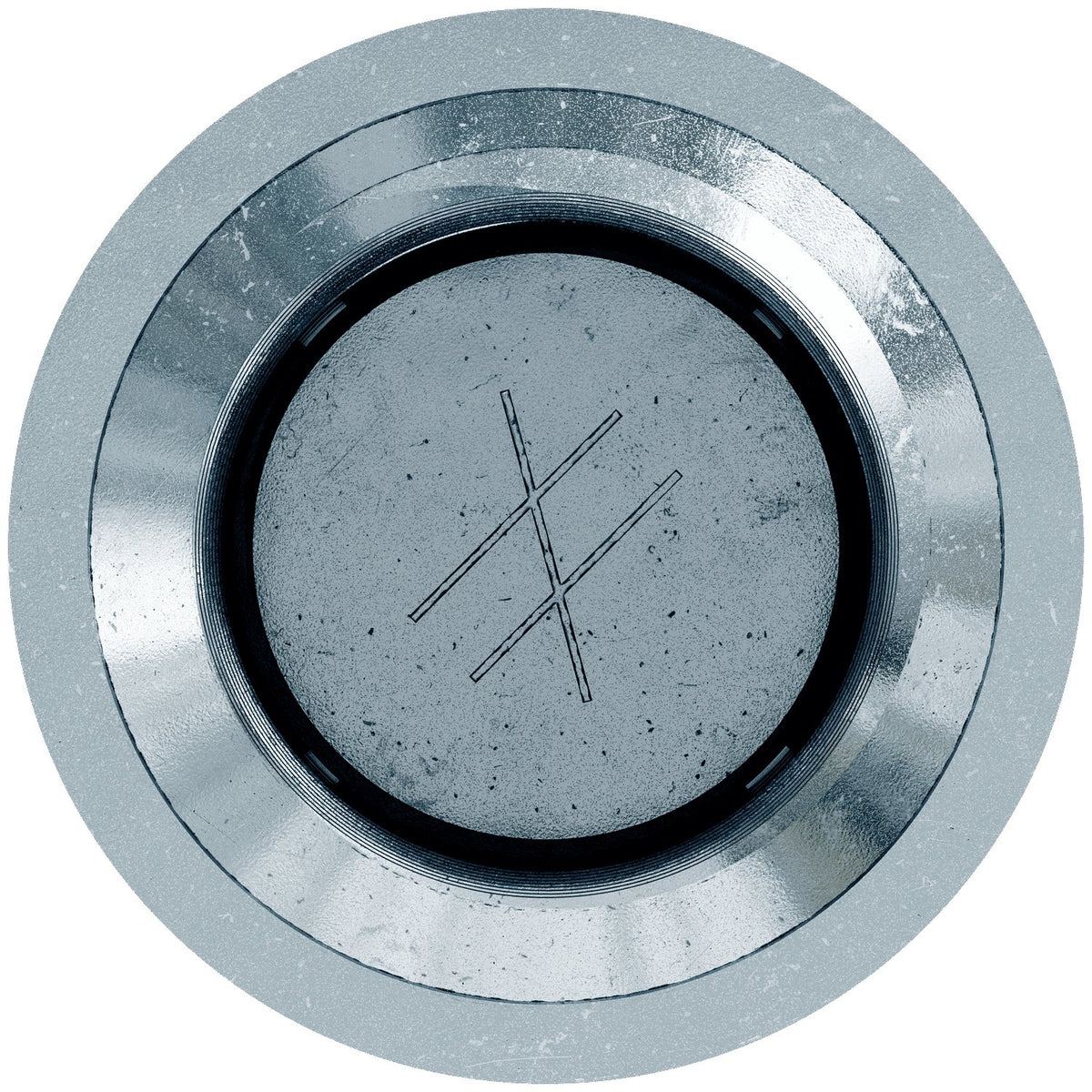

- The DIAB75 features a positive-set marking system with an indication marker located at the top of the anchor. When this marker reaches the surface of the base material, it visually confirms that the anchor has been properly and fully set.
- What setting tool is required to install the DIAB75?
- The DIAB75 installs with the DIABST hand-setting tool, model DIABST75, which drives the expansion plug toward the bottom of the anchor to achieve a secure, displacement-controlled expansion set.
Note: Product dimensions may differ from picture. Please see item description for specifications.
