Product Features
Product Description

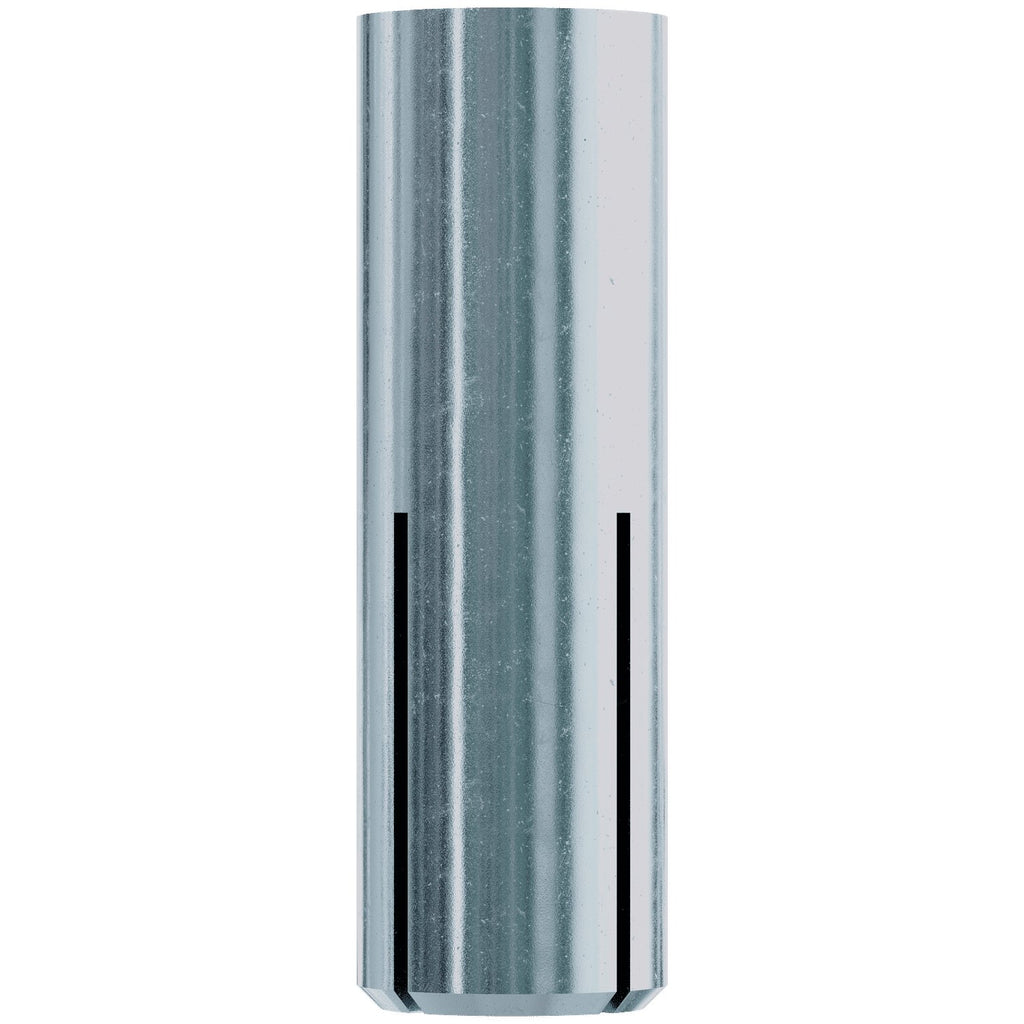

Simpson Strong-Tie DIAB50C DIAB Drop-In Internally Threaded Coil-Thread Anchor for 1/2-in. Rod is a displacement-controlled expansion anchor from Simpson Strong-Tie engineered for fast, accurate installation into concrete and masonry base materials. Featuring improved geometry for smooth setting and a positive-set marking system, this internally threaded anchor accepts 1/2-in. coil-thread rod and sets with 40% fewer hammer hits than previous drop-in anchor designs - reducing installation effort while confirming proper placement every time.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Coil-thread for 1/2 in. coil-thread rod
- Zinc-plated carbon steel construction
- Length: 2 in.
- Drill bit diameter: 5/8 in.
- Rod diameter: 1/2 in.
Specifications
- MPN: DIAB50C
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Length: 2 in.
- Thread Length: 3/4 in.
- TPI: 6
- Bolt/Rod Diameter: 1/2 in.
- Drill Bit Diameter: 5/8 in.
- Thread Type: Coil-Thread
- Packaging: Packs of 50 and Cartons of 200
- Country of Origin: China
Frequently Asked Questions
- What setting tools are compatible with the DIAB50C anchor?
- The DIAB50C installs with the DIABST hand-setting tool model DIABST50 or the power-setting tool model DIABST50-SDS.
- How do I know when the DIAB50C anchor is properly set?

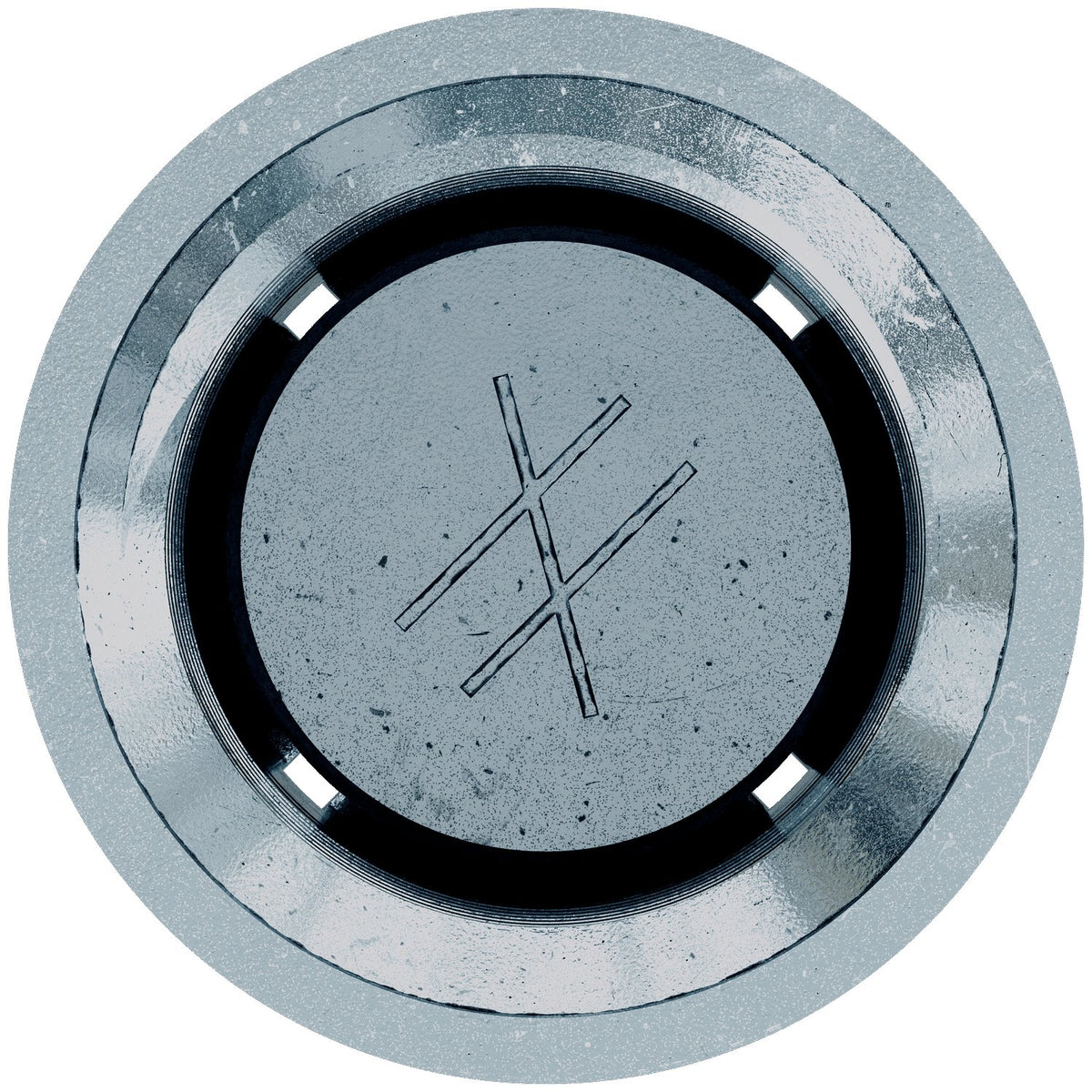

- The anchor features a positive-set marking system with an indication marker at the top of the anchor that clearly shows when proper installation has taken place.
- What drill bit size is required to install the DIAB50C?
- A 5/8 in. drill bit diameter is required when preparing the hole for the DIAB50C drop-in anchor.
- What rod size does the DIAB50C accept?
- The DIAB50C is designed for use with 1/2 in. coil-thread rod, with 6 TPI (threads per inch) and a 3/4 in. thread length.
Note: Product dimensions may differ from picture. Please see item description for specifications.
