Product Features
Product Description

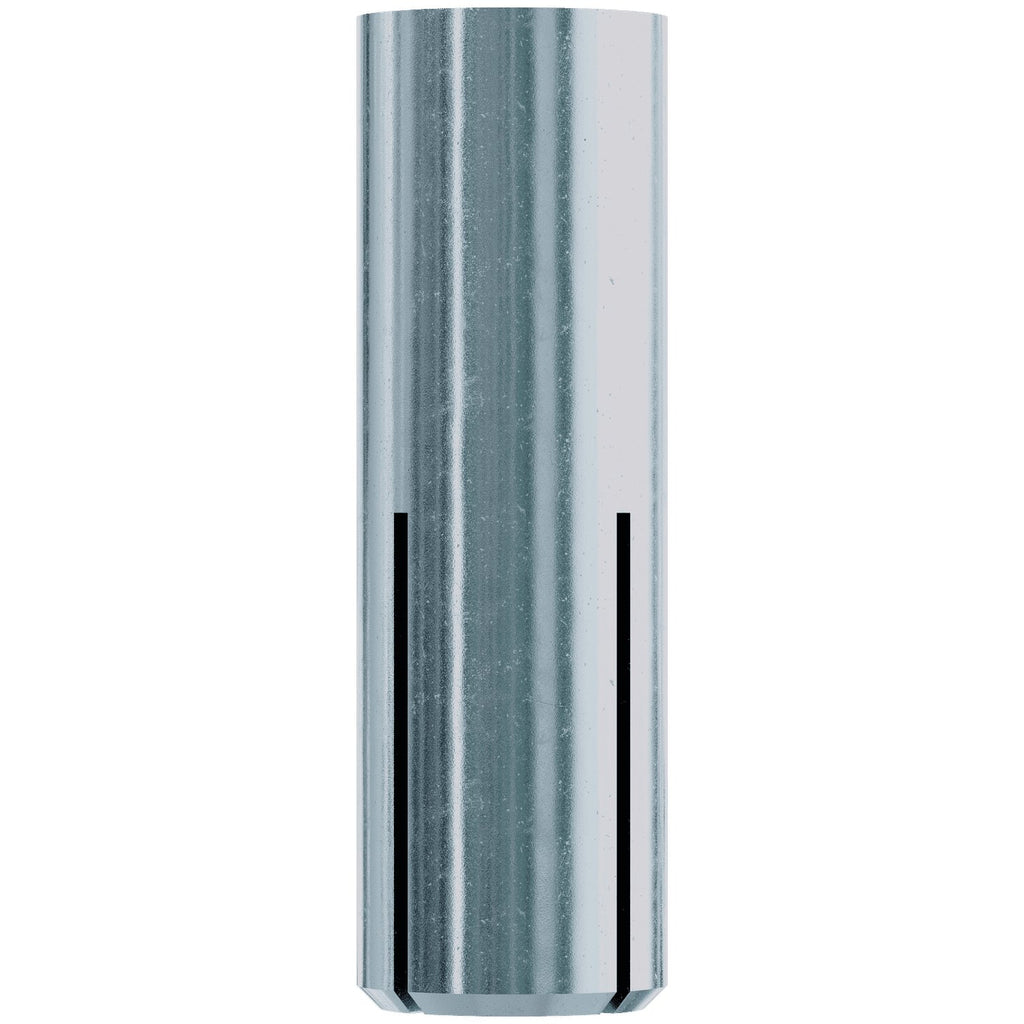

The Simpson Strong-Tie DIAB50 Drop-In Internally Threaded Anchor is a displacement-controlled expansion anchor engineered for fast, reliable installation into concrete base materials. Featuring improved geometry for smooth and accurate setting, this zinc-plated carbon steel anchor accepts 1/2-in. threaded rod and sets with 40% fewer hammer hits than previous drop-in anchor designs - delivering quick and economical installation with less effort.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Displacement-controlled expansion design for accurate, reliable setting
- Improved geometry for smooth installation into base materials
- Zinc-plated carbon steel construction
- Internally threaded to accept 1/2-in. threaded rod
- Installs with DIABST hand-setting tool model DIABST50 or power-setting tool model DIABST50-SDS
Specifications
- Brand: Simpson Strong-Tie
- Model Number (MPN): DIAB50
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Length: 2 in.
- Thread Length: 3/4 in.
- Threads Per Inch (TPI): 13
- Bolt/Rod Diameter: 1/2 in.
- Drill Bit Diameter: 5/8 in.
- Packaging: Packs of 50 and Cartons of 200
- Country of Origin: China
Frequently Asked Questions
- What size threaded rod does the DIAB50 accept?
- The DIAB50 is internally threaded to accept 1/2-in. diameter threaded rod with a thread pitch of 13 TPI (threads per inch).
- What drill bit size is required to install the DIAB50?
- A 5/8-in. diameter drill bit is required to drill the hole for proper installation of the DIAB50 drop-in anchor.
- What tools are needed to set the DIAB50 anchor?
- The DIAB50 installs with the DIABST hand-setting tool model DIABST50 or the power-setting tool model DIABST50-SDS. Both options drive the expansion plug toward the bottom of the anchor to properly set it.
- How do I know when the DIAB50 anchor is properly set?

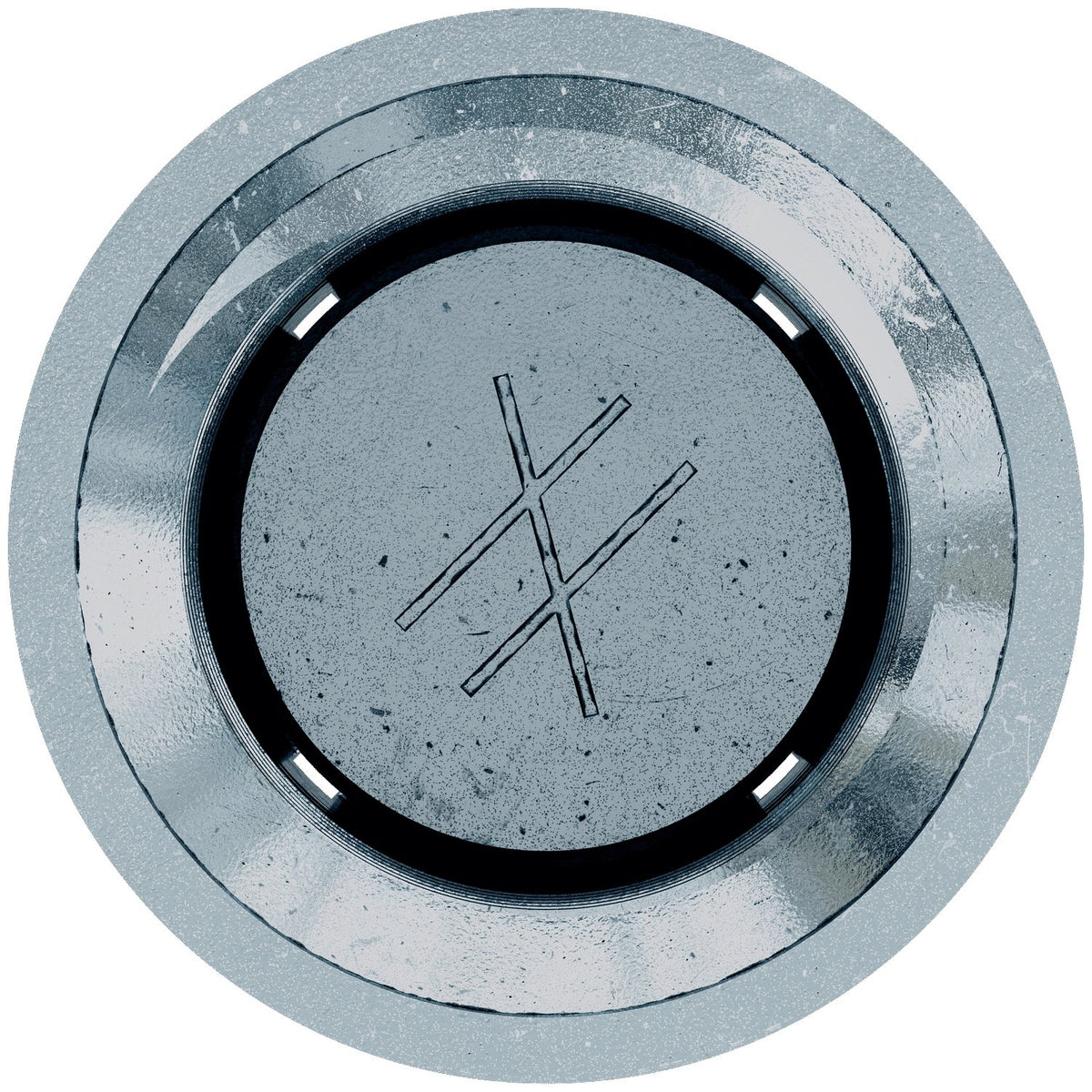

- The DIAB50 features a positive-set marking system - an indication marker at the top of the anchor that clearly shows when the anchor has been properly set, confirming correct placement before use.
Note: Product dimensions may differ from picture. Please see item description for specifications.
