Product Features
Product Description

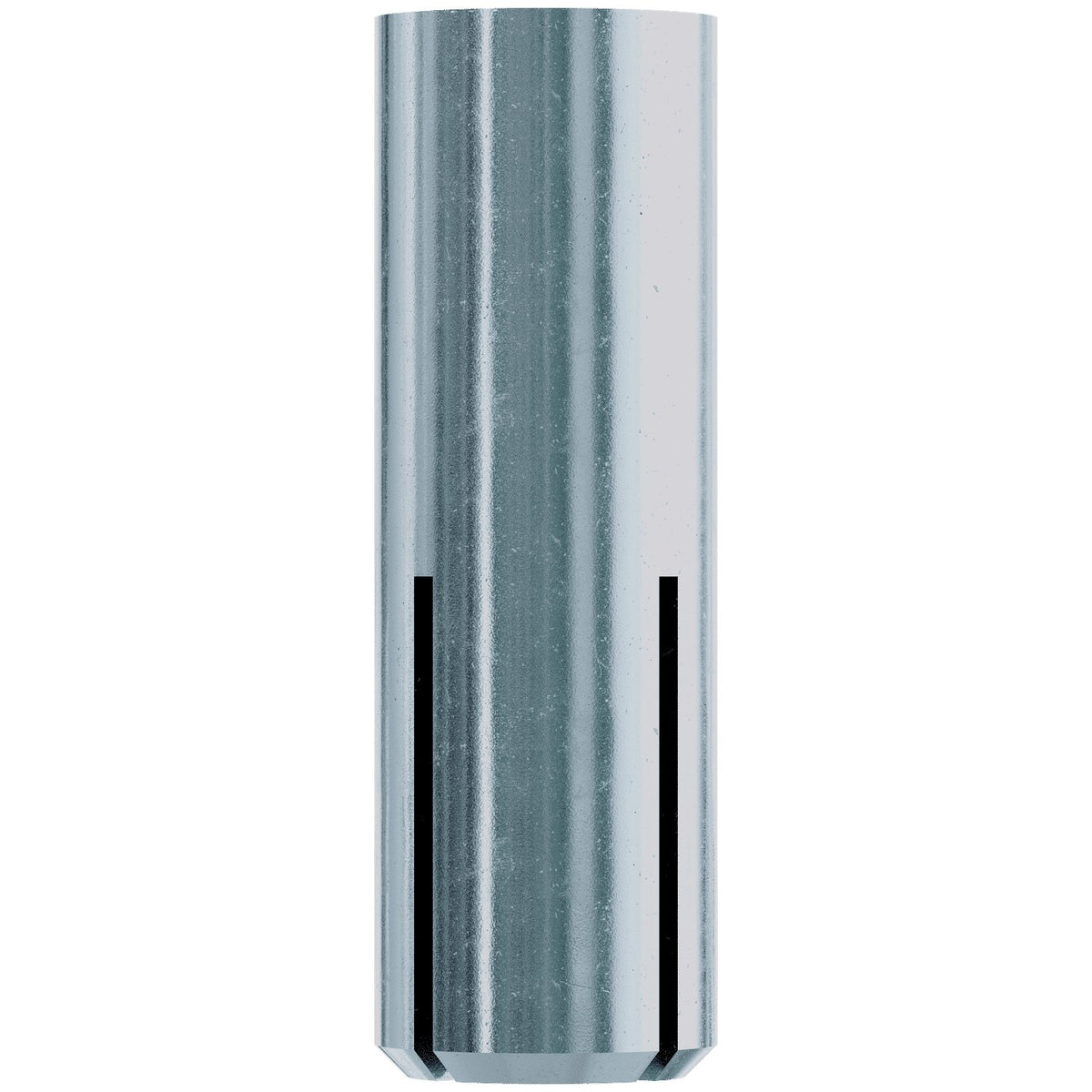

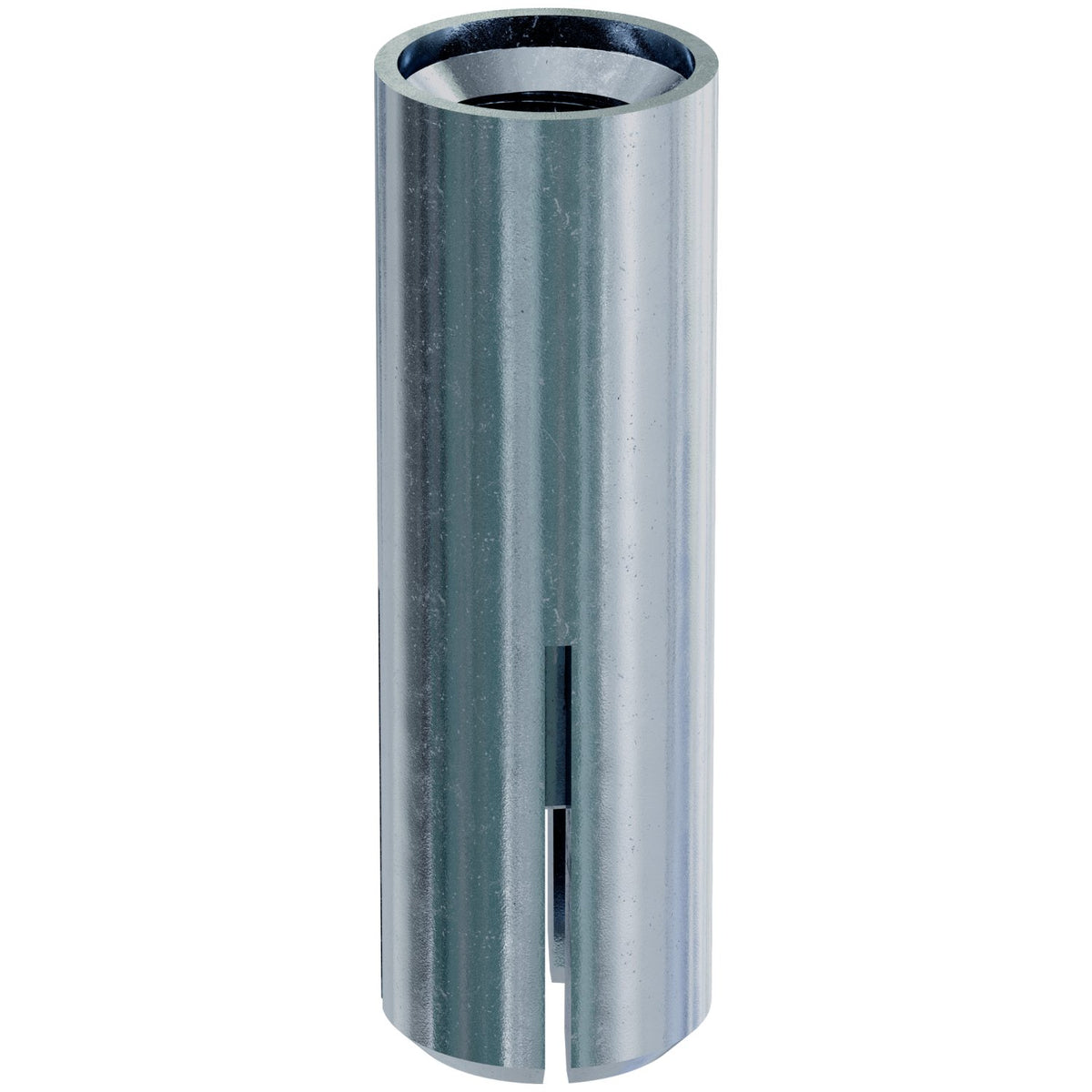

The Simpson Strong-Tie DIAB37 Drop-In Internally Threaded Anchor is a displacement-controlled expansion anchor engineered by Simpson Strong-Tie for fast, reliable anchoring of 3/8-in. threaded rod into concrete base materials. Featuring improved geometry for smooth and accurate installation, this anchor sets with 40% fewer hammer hits than previous drop-in anchor designs, making it an economical choice for high-volume anchoring applications.
Key Features
- Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set
- Improved geometry in the preassembled expansion plug enhances setting capability for smooth and accurate installation
- Displacement-controlled expansion anchor easily set by driving the plug toward the bottom of the anchor

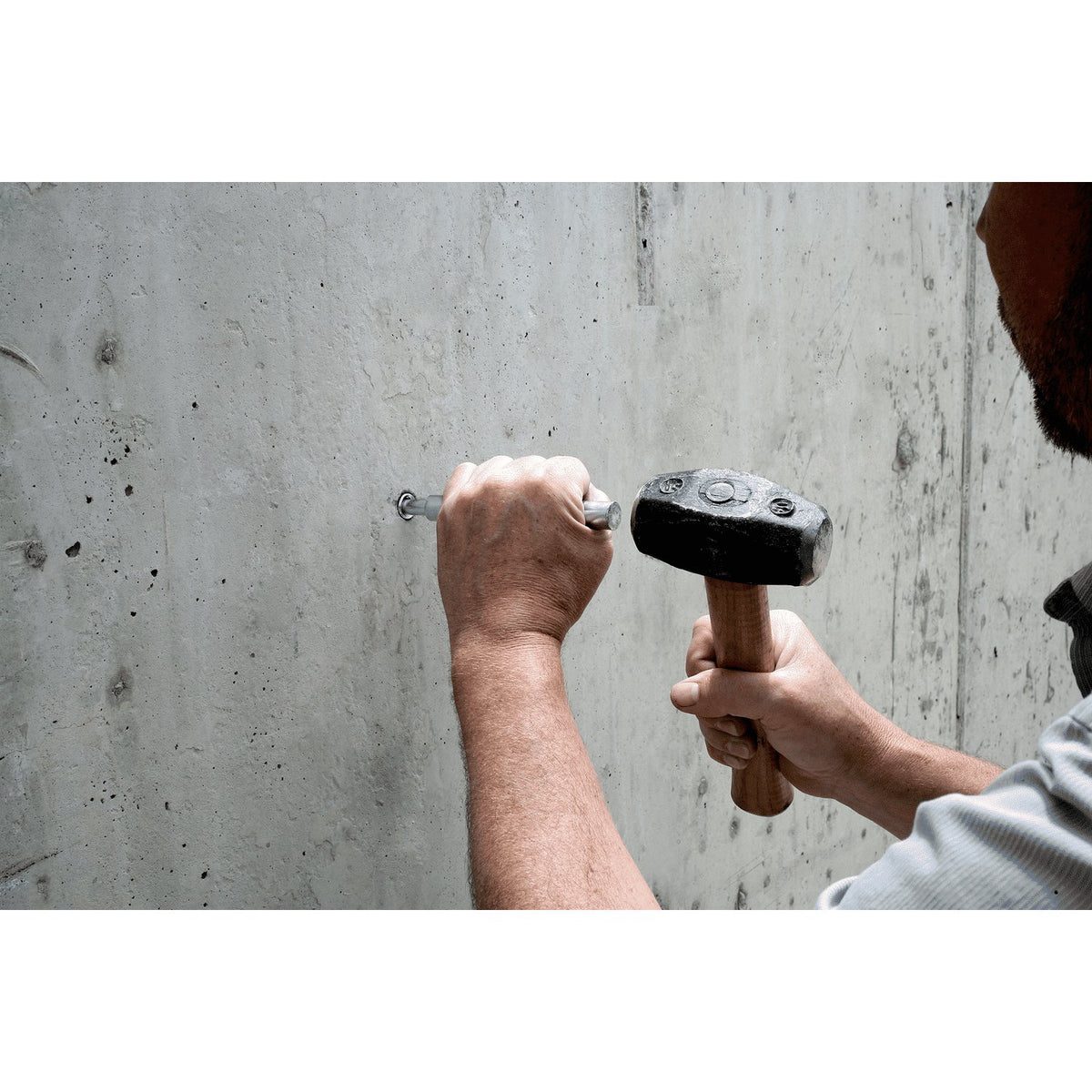

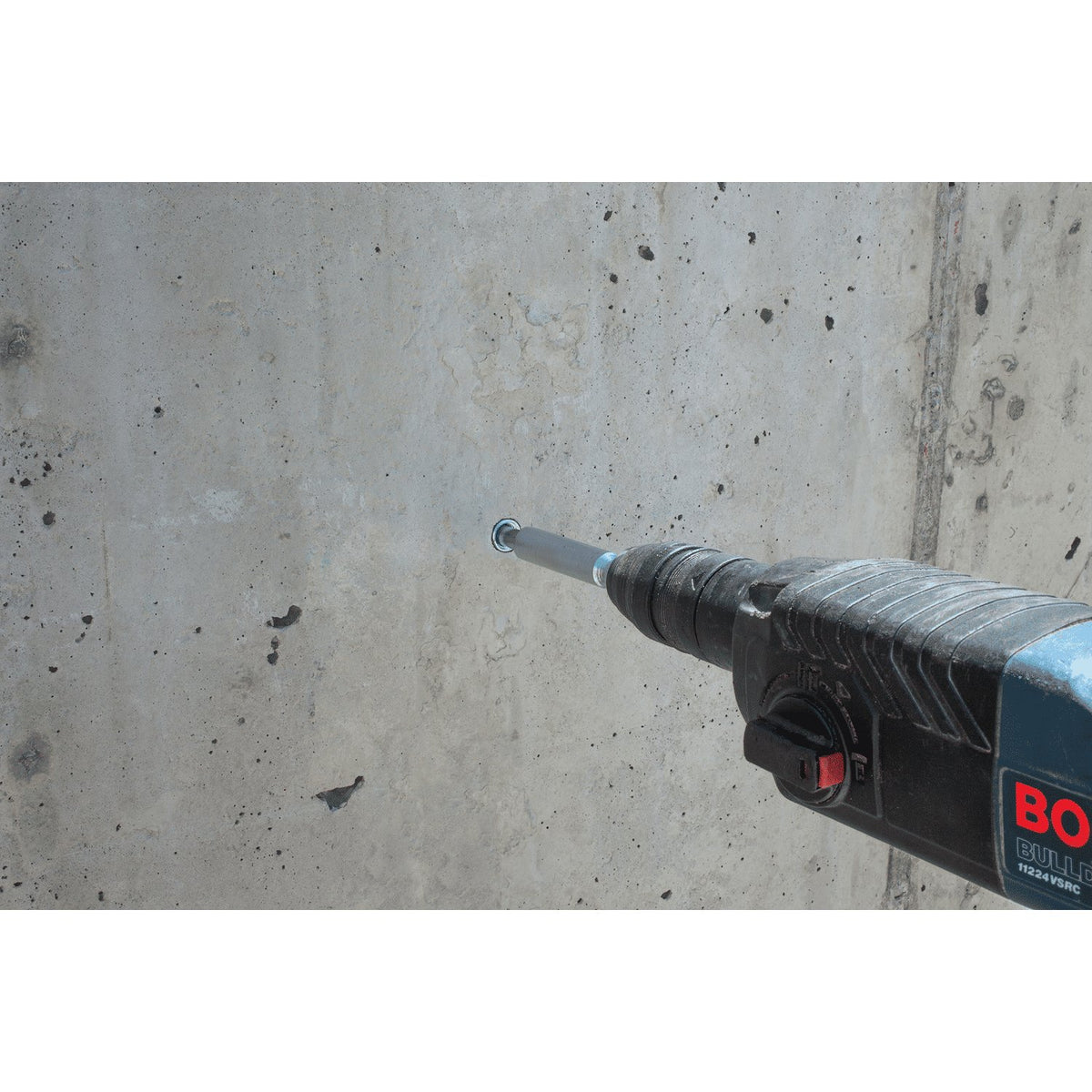

- Installs with DIABST hand-setting tool model DIABST37 or power-setting tool model DIABST37-SDS
- Zinc-plated carbon steel construction
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: DIAB37
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Bolt / Rod Diameter: 3/8 in.
- Length: 1-9/16 in.
- Thread Length: 5/8 in.
- TPI: 16
- Drill Bit Diameter: 1/2 in.
- Packaging: Packs of 50 and Cartons of 250
- Country of Origin: China
Frequently Asked Questions
- What size threaded rod does the DIAB37 anchor accept?
- The DIAB37 is designed for use with 3/8-in. diameter threaded rod. It features 16 TPI (threads per inch) internal threading with a thread length of 5/8 in.
- What drill bit size is required to install the DIAB37 drop-in anchor?
- Installation requires a 1/2-in. diameter drill bit to prepare the hole in the base material prior to setting the anchor.
- What tools are needed to properly set the DIAB37 anchor?
- The DIAB37 installs with the DIABST hand-setting tool model DIABST37 or the power-setting tool model DIABST37-SDS. The anchor is set by driving the expansion plug toward the bottom of the anchor using one of these setting tools.
- How do I know when the DIAB37 anchor is properly installed?

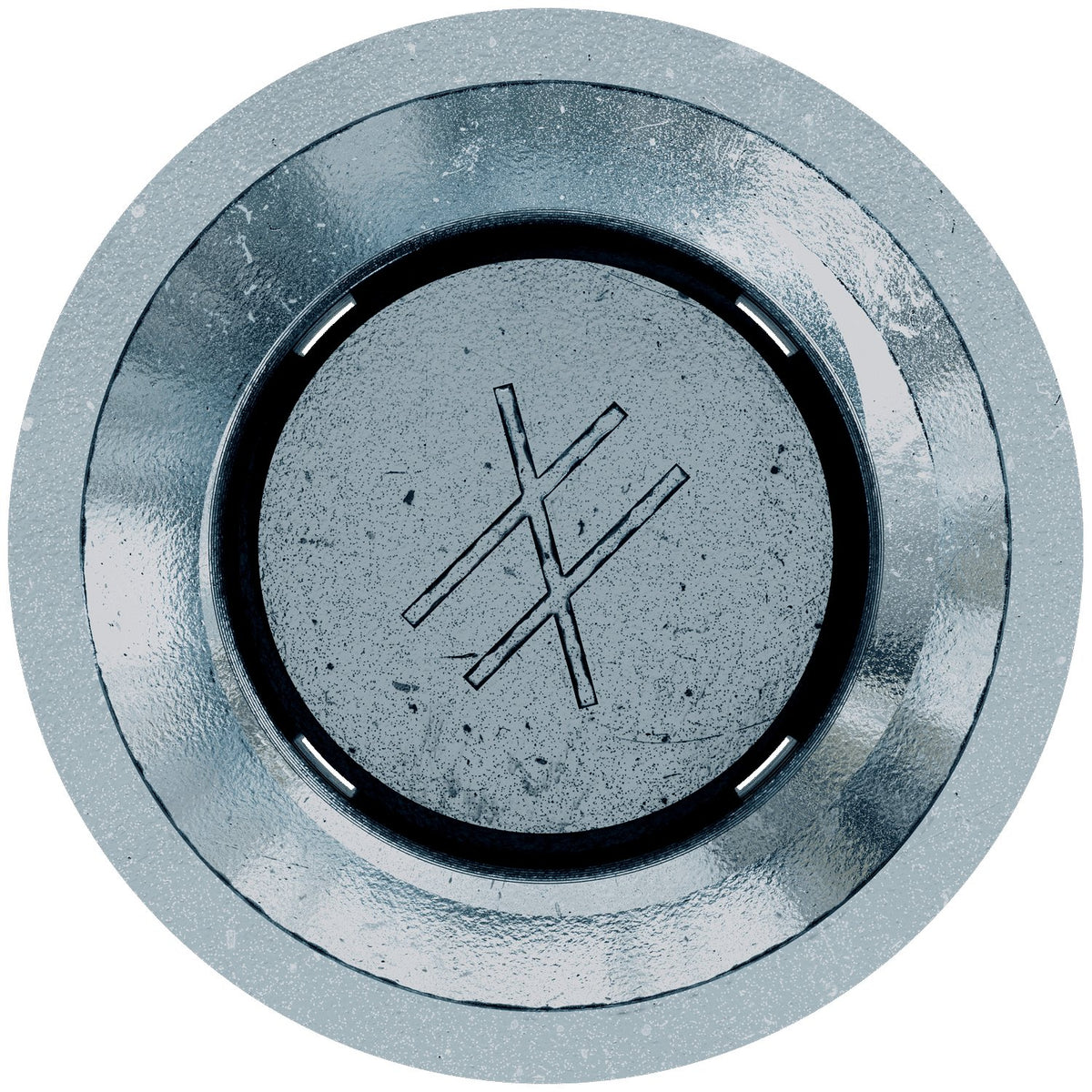

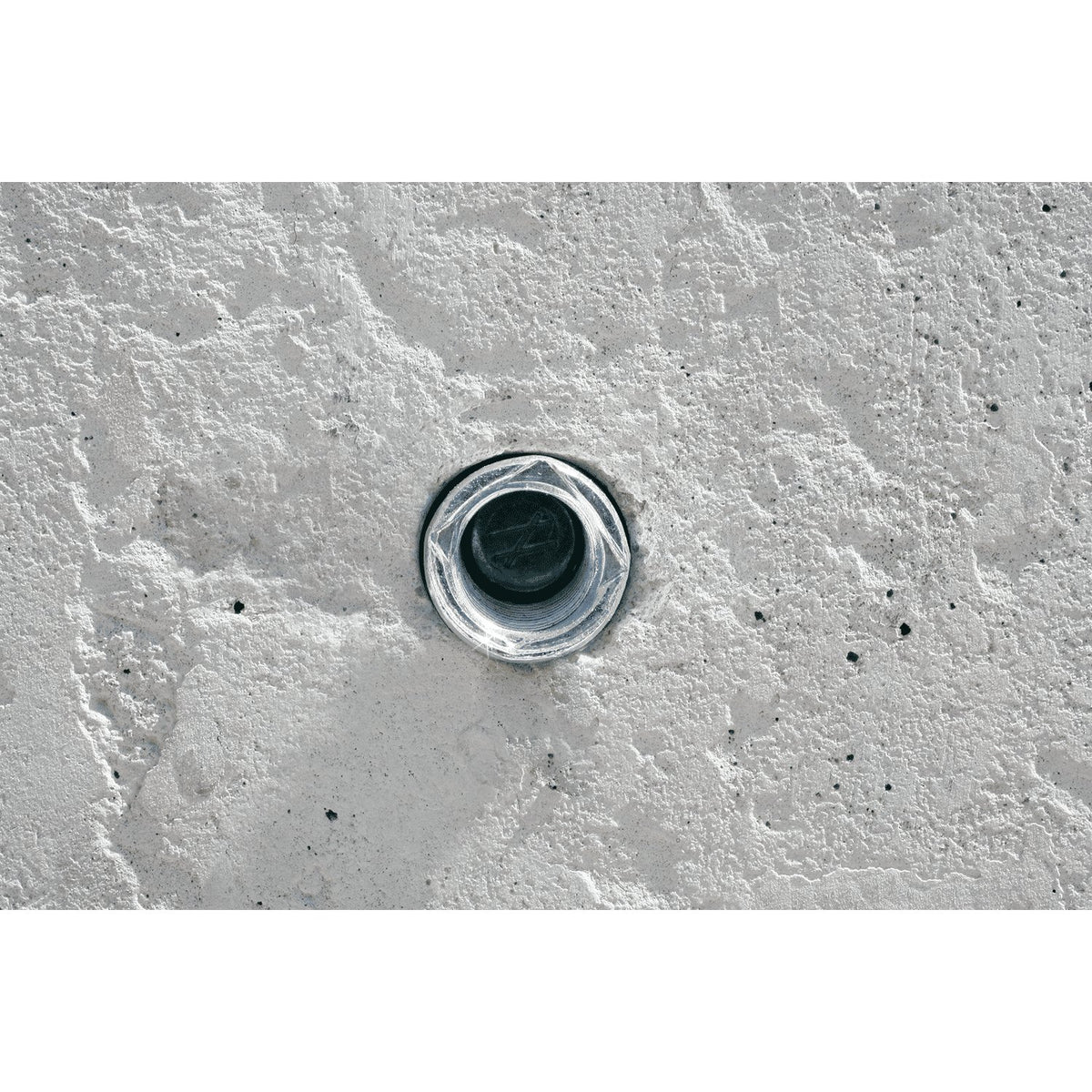

- The DIAB37 features a positive-set marking system with an indication marker located at the top of the anchor. When the anchor has been driven to the correct depth, this marker becomes visible, confirming that proper placement and full expansion have been achieved.
Note: Product dimensions may differ from picture. Please see item description for specifications.
