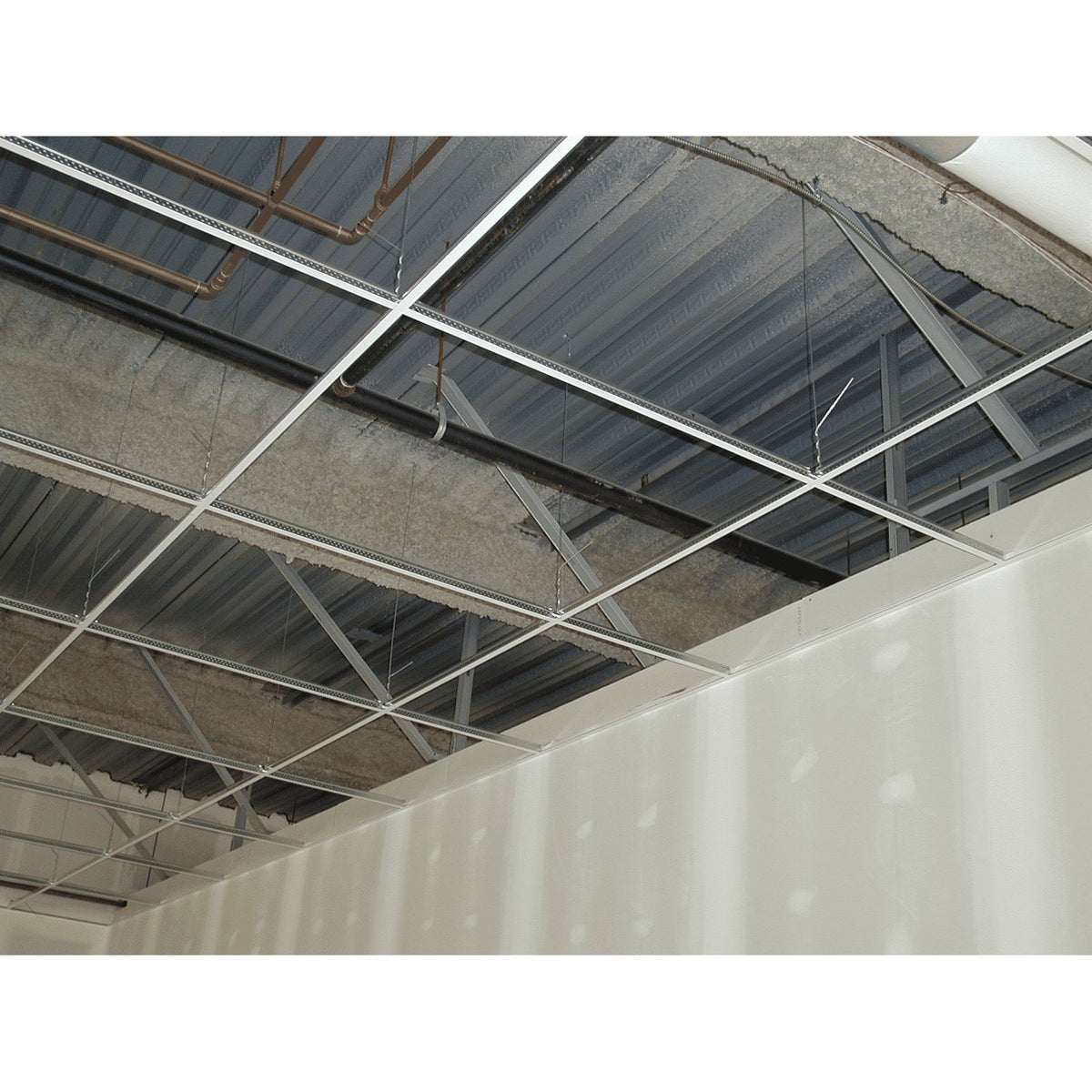

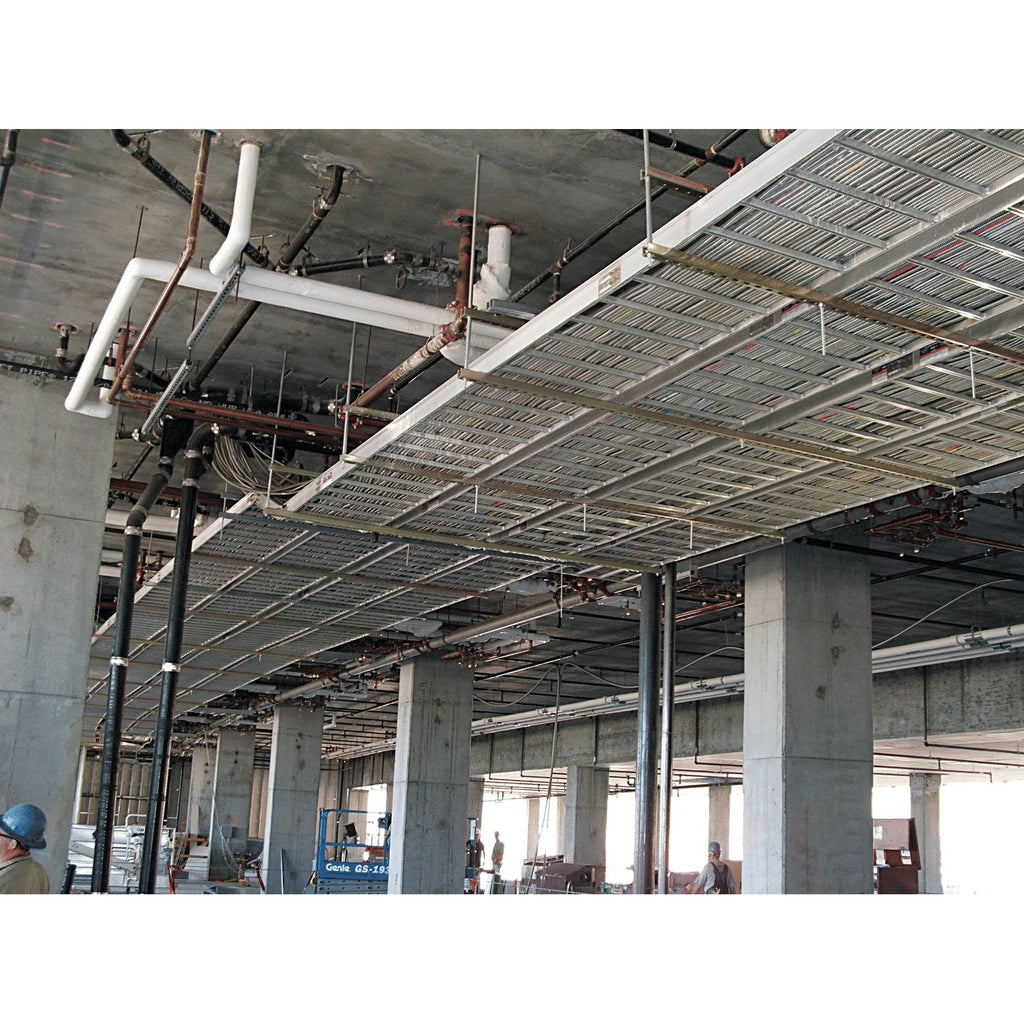

Simpson DIA50S DIAS Short Drop-In Internally Threaded Anchor for 1/2-in. Rod by Simpson is a flush-mount expansion anchor engineered for concrete applications where shallow embedment is essential. The short DIAS design enables secure, internally threaded anchorage while helping avoid contact with rebar or pre-stressed and post-tensioned cables beneath the surface.
Key Features
- Flush-mount expansion anchor for concrete applications
- Lipped edge of DIAS eliminates need for precisely drilled hole depth

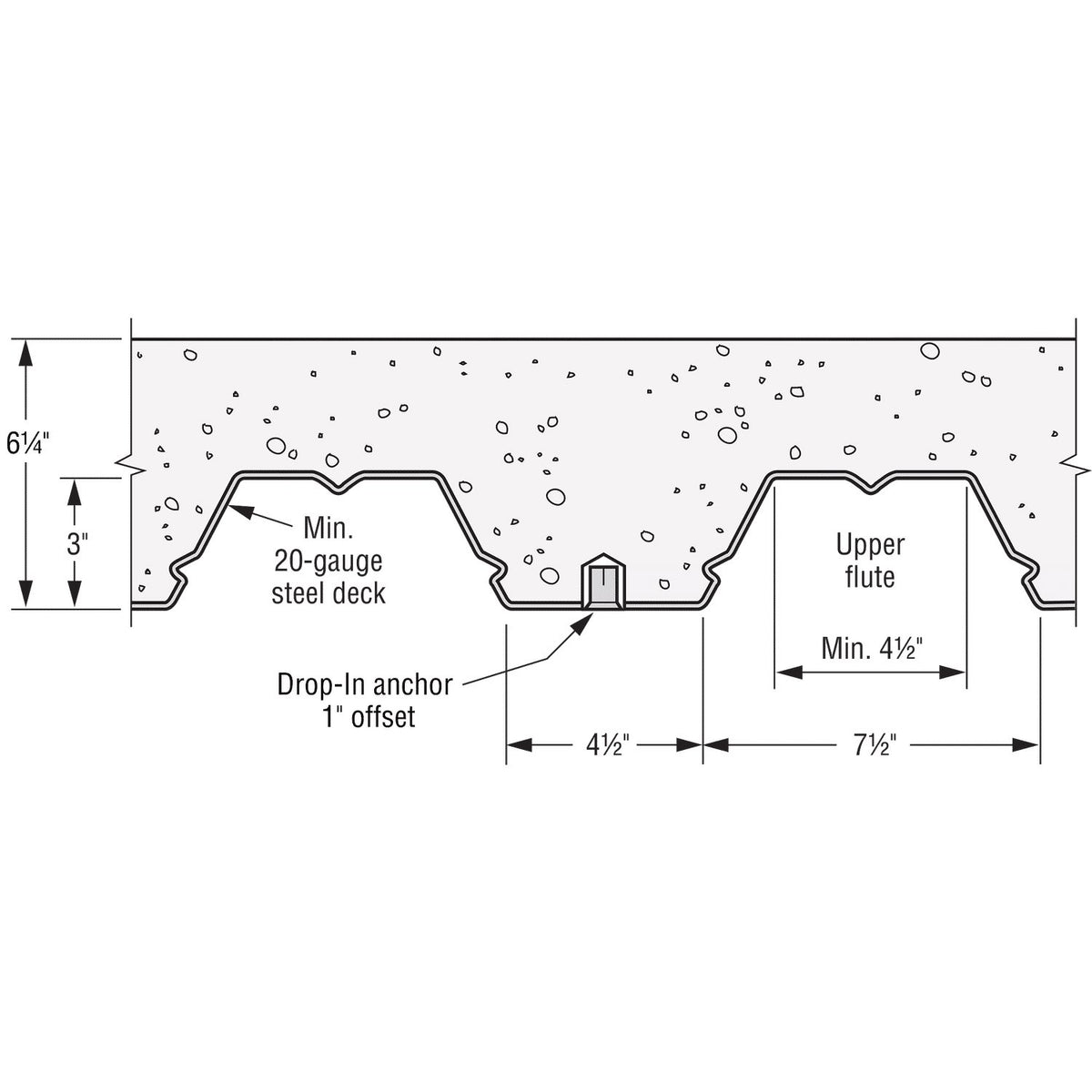

- Short length of DIAS enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
- Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
- Rod size: 1/2 in.

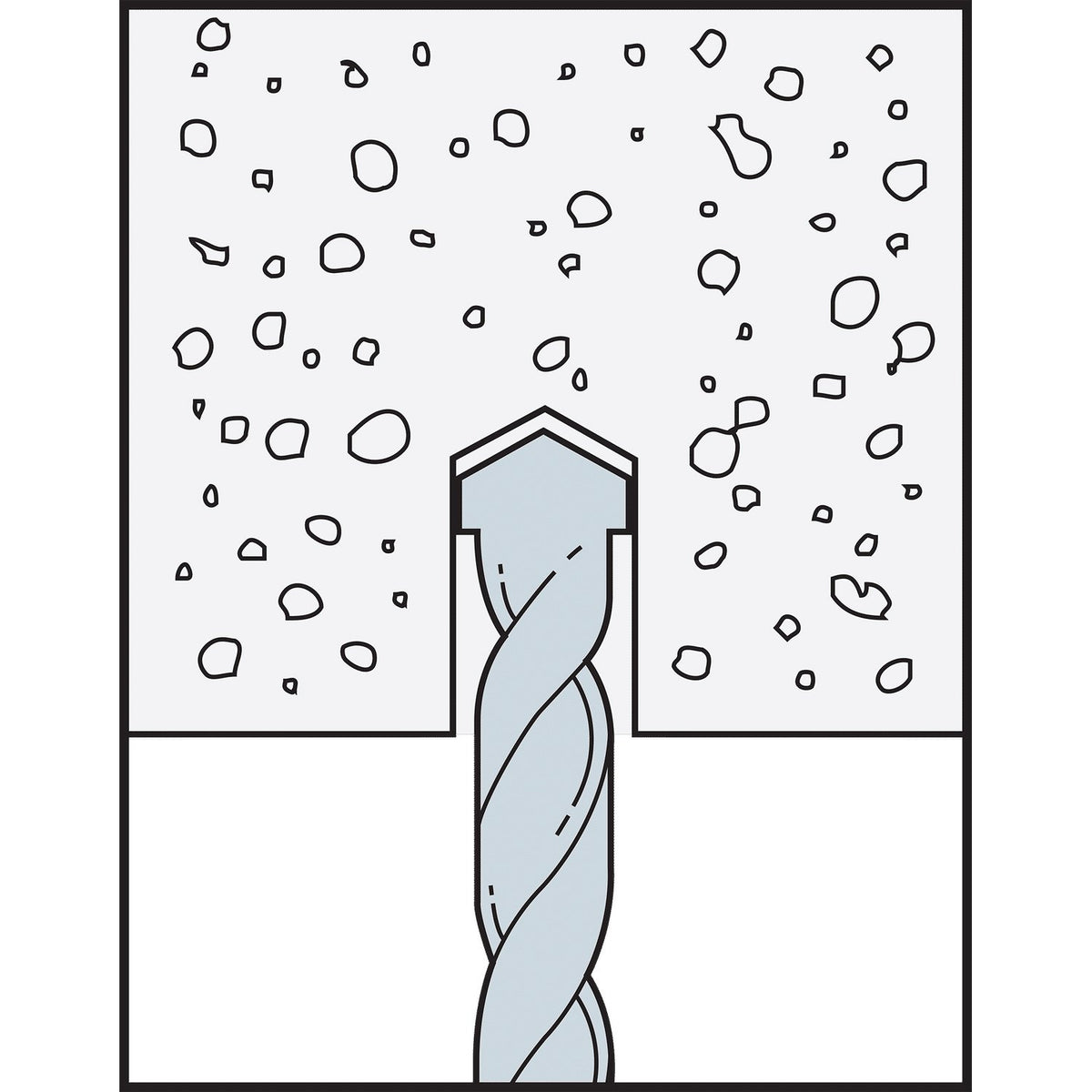

- Drill bit diameter: 5/8 in.
- Length: 1 in.
- Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
Specifications
- MPN: DIA50S
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Bolt/Rod Diameter (in.): 1/2
- Drill Bit Diameter (in.): 5/8
- Length (in.): 1
- Thread Length (in.): 5/16
- TPI: 13
- Packaging: Packs of 50 and Cartons of 200
- Country of Origin: Taiwan
Frequently Asked Questions
- What is the purpose of the lipped edge on the DIAS short drop-in anchor?
- The lipped edge of the DIAS anchor eliminates the need for a precisely drilled hole depth, making installation more forgiving and consistent across varying drilling conditions.
- Why would I choose the short DIAS version over a standard-length drop-in anchor?
- The short length of the DIAS enables shallow embedment, which helps avoid drilling into rebar or pre-stressed and post-tensioned cables that may be present within the base material.
- Does the DIA50S include a setting tool?

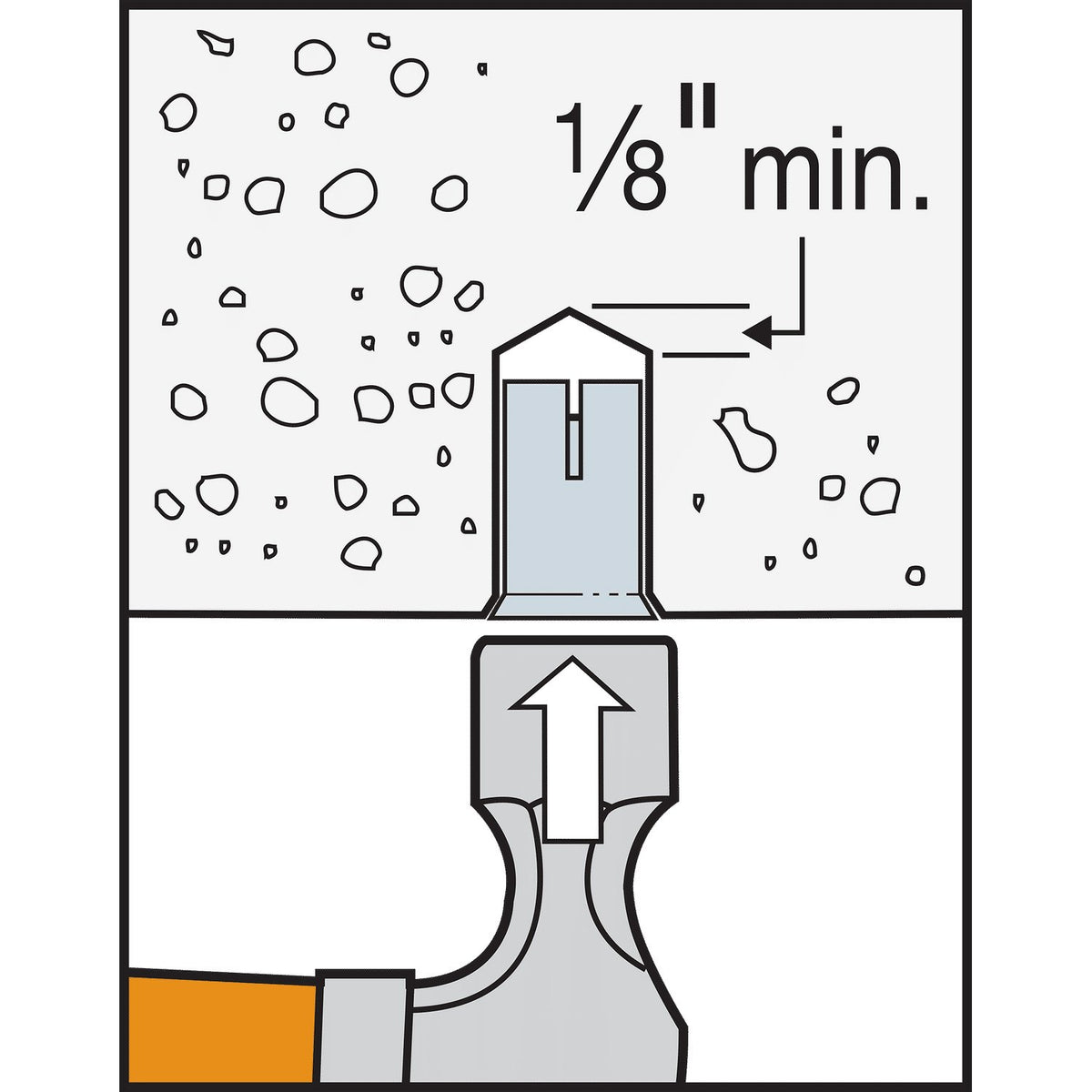

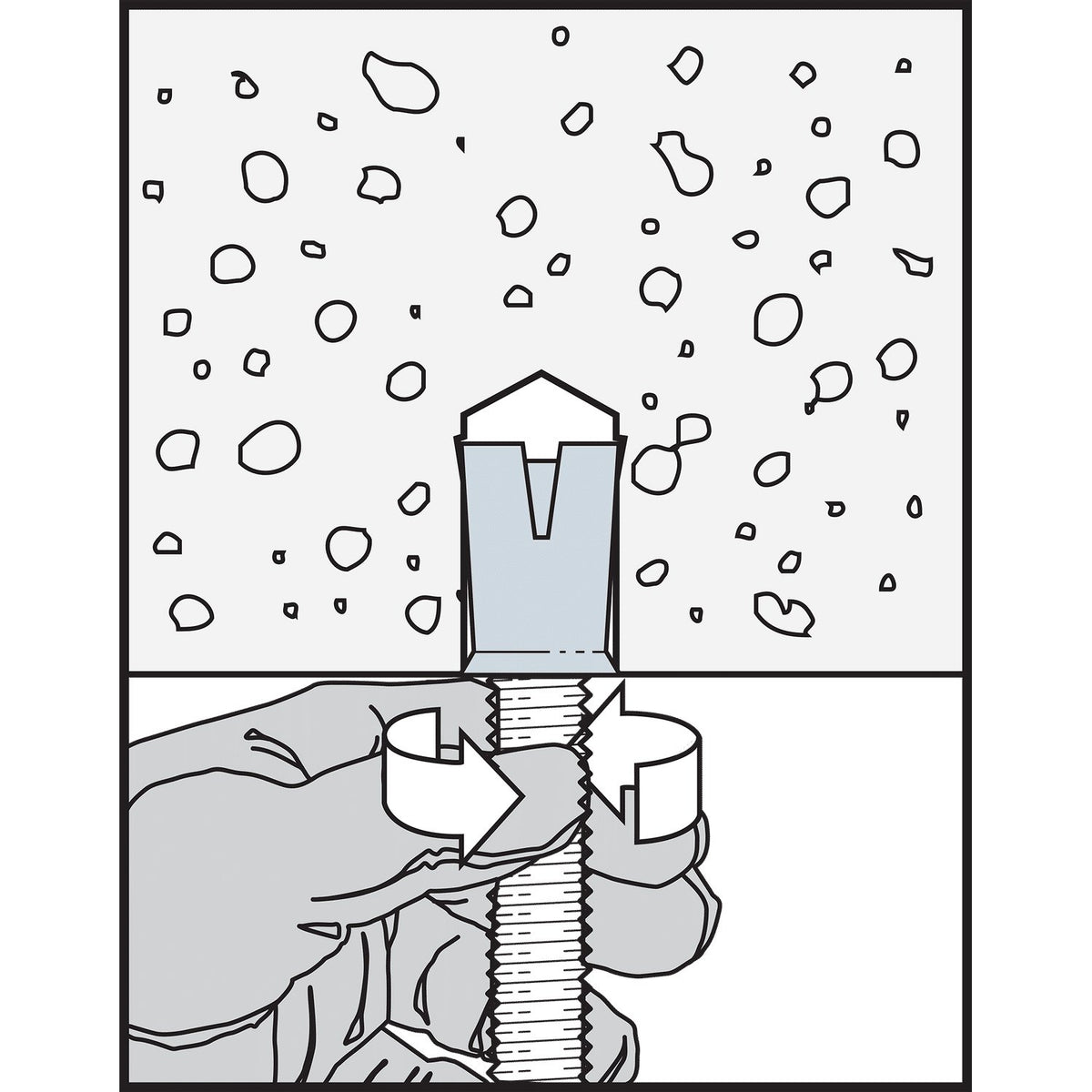

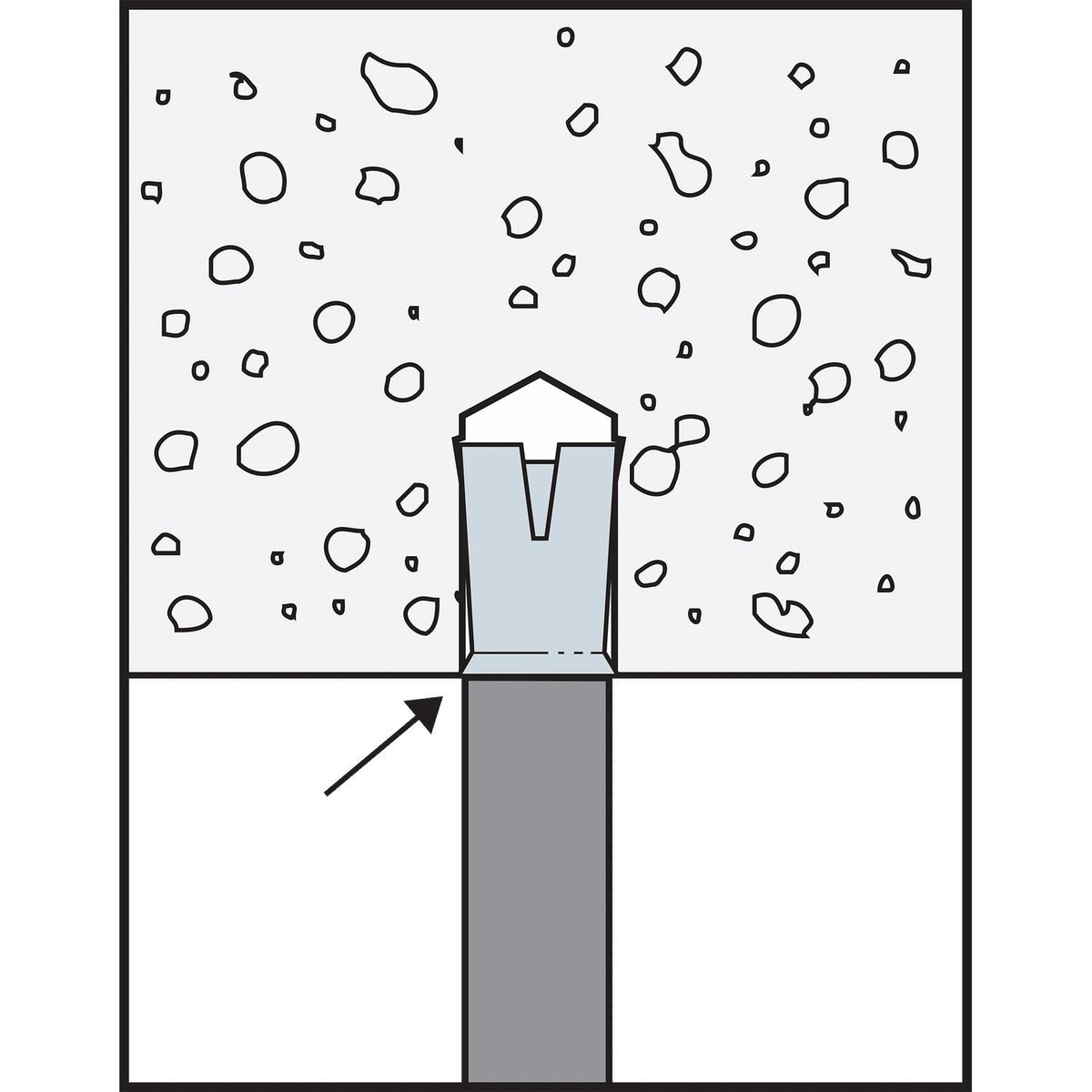

- Yes. Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation.
- What happens if the drilled hole is oversized?
- Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity. It is important to use the specified 5/8 in. drill bit diameter for proper installation.
Note: Product dimensions may differ from picture. Please see item description for specifications. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
