Product Description

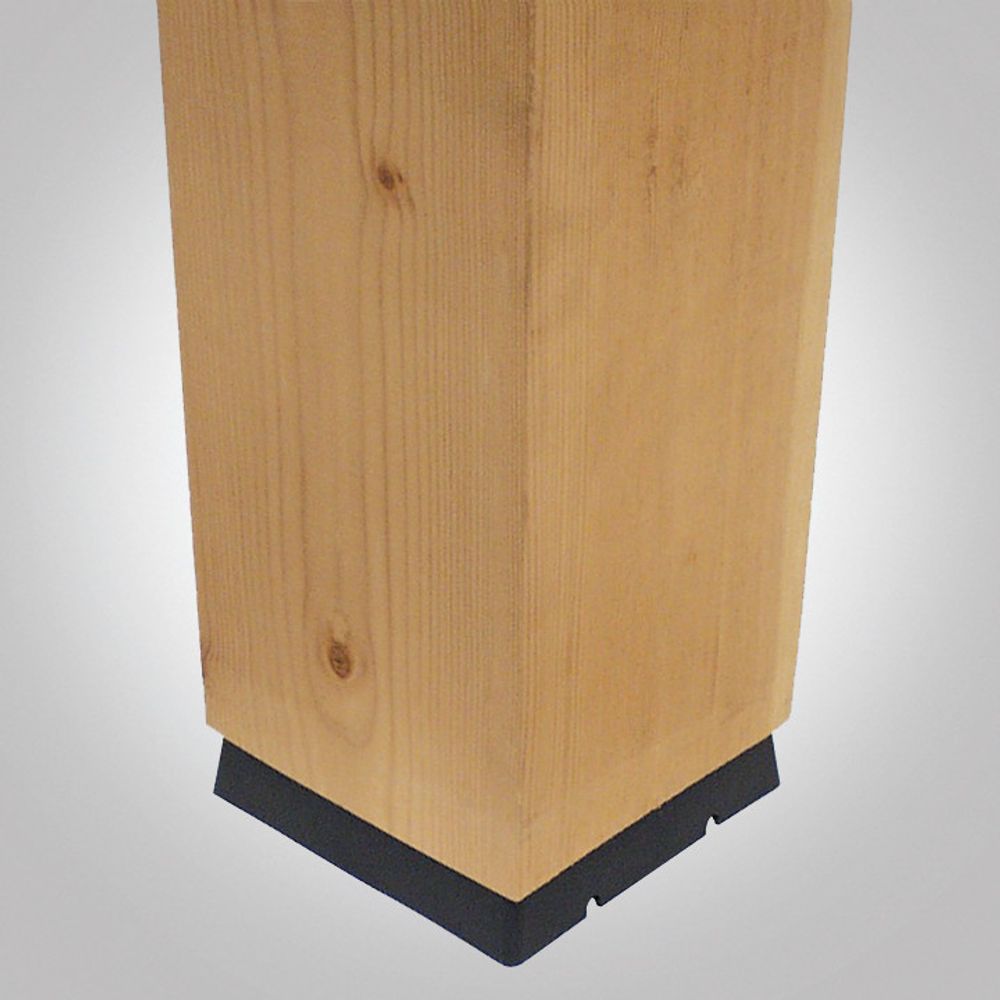

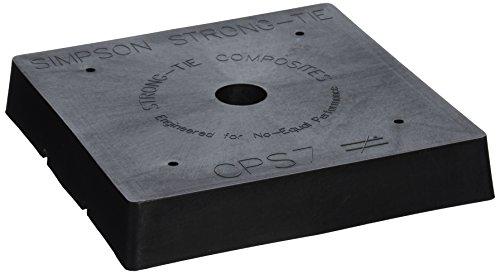

Simpson CPS7 CPS Composite Plastic Standoff for 8x8 by Simpson Strong-Tie is a composite-plastic standoff post base engineered for use with nominal 8x8 solid wood posts and columns. Suitable for both indoor and outdoor applications, the CPS7 attaches to the bottom of the column and to concrete using a threaded rod and epoxy, providing the code-required 1-inch standoff that helps protect structural posts from ground moisture and concrete contact. Its durable engineered composite plastic construction and black finish deliver long-lasting performance and a clean, custom appearance.
Key Features
- Use with nominal 8x8 post or column
- Provides code-required 1-in. standoff
- Engineered composite plastic
- Black finish for a custom look
- Designed for use both indoors and outdoors
- Load rated for structural reliability
- Attaches to the bottom of the solid wood column and to concrete with threaded rod and epoxy
- Made in the United States

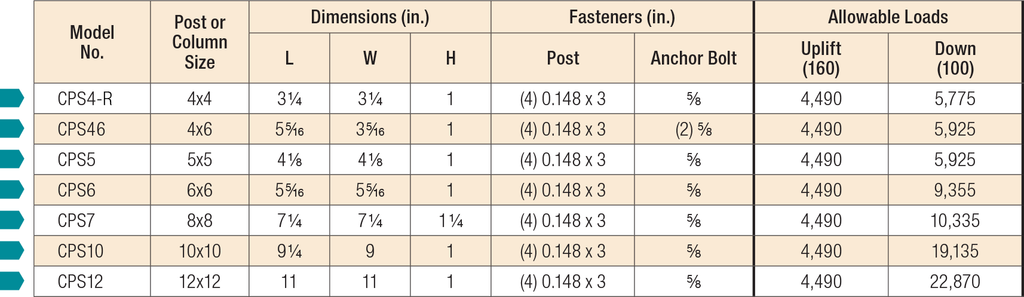

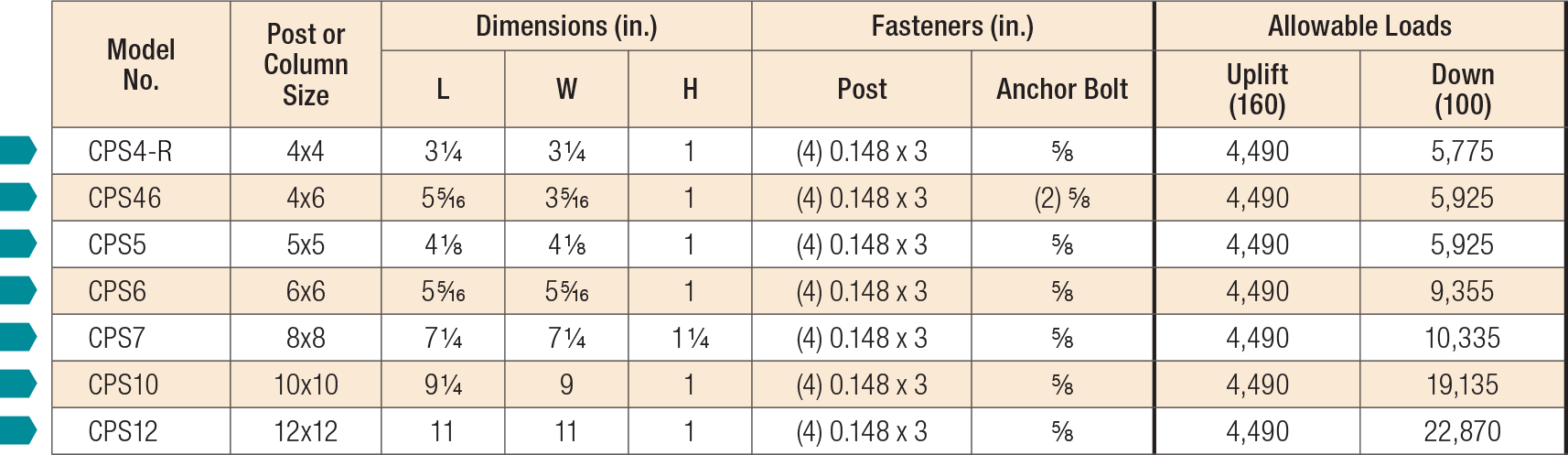

Specifications
- Manufacturer Part Number (MPN): CPS7
- Brand: Simpson Strong-Tie
- Member Size: 8x8
- Material: Composite Plastic
- Finish: Composite Plastic (Black)
- Standoff Height: 1 in. (code-required)
- Installation Fasteners (sold separately): (4) 0.148-in. x 3-in. nails and (1) 5/8-in. diameter anchor bolt
- Country of Origin: United States
Approved Applications
- Nominal 8x8 solid wood post and column bases
- Indoor structural column installations
- Outdoor structural column installations
- Concrete-to-column connections using threaded rod and epoxy
Frequently Asked Questions
- What size post or column is the CPS7 designed to fit?
- The CPS7 is designed for use with a nominal 8x8 post or column.
- Can the CPS7 be used outdoors?
- Yes. The CPS is a composite-plastic standoff base designed for use both indoors and outdoors. The engineered composite plastic will not rust, making it well suited for exterior applications.
- What fasteners are required to install the CPS7?
- Installation requires (4) 0.148-in. x 3-in. nails and (1) 5/8-in. diameter anchor bolt. The base attaches to the bottom of the solid wood column and to concrete with threaded rod and epoxy.
- Does the CPS7 provide the standoff distance required by code?
- Yes. The CPS7 provides the code-required 1-in. standoff between the base of the post or column and the concrete surface.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
