Product Features
Product Description
Simpson CISLV32 CI-SLV Super-Low-Viscosity Structural Injection Epoxy (32 oz.) by Simpson Strong-Tie is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding, and flood coat filling of concrete cracks when substrate temperatures are between 60 deg.F (16 deg.C) and 90 deg.F (32 deg.C). Its ultra-low surface tension allows deep penetration into narrow cracks, delivering a chemically bonded structural repair that seals out moisture and protects embedded rebar from corrosion.
Key Features
- Meets the requirements of ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
- Chemically bonds with the concrete to provide a structural repair; CI-SLV seals the crack from moisture, protecting rebar in the concrete from corrosion
- Moisture-tolerant; can be used on dry and damp surfaces
- Low surface tension allows the material to effectively penetrate narrow cracks
- Formulated for maximum penetration under pressure
- Suitable for pressure injection or gravity-feed applications
- Non-shrink and resistant to oils, salts and mild chemicals
- Can be used with metered pressure-injection equipment
- Freeze-thaw resistant
- Dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool
Specifications
- MPN: CISLV32
- Brand: Simpson Strong-Tie
- Capacity: 32 oz. (946 mL)
- Packaging Type: Cartridge
- Color: Clear
- Viscosity: 150 cP
- Crack Width Range: Hairline cracks (0.002") up to 1/4" (6 mm)
- Yield: 231 in.3/US gal. (0.001 m3/L)
- Substrate Temperature Range: 60 deg.F (16 deg.C) - 90 deg.F (32 deg.C)
- Standards Compliance: ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
- Compatible Dispensing Tools: Simpson Strong-Tie ADT30S and ADT30P
- Country of Origin: United States
Approved Applications
- Pressure-injection of cracks in structural concrete
- Gravity-feed and flood coat of cracks in horizontal concrete
- Repair of hairline cracks (0.002") and cracks up to 1/4" (6 mm) in width
- Structural repairs requiring chemically bonded crack filling
- Underwater pressure-injection applications
What's Included

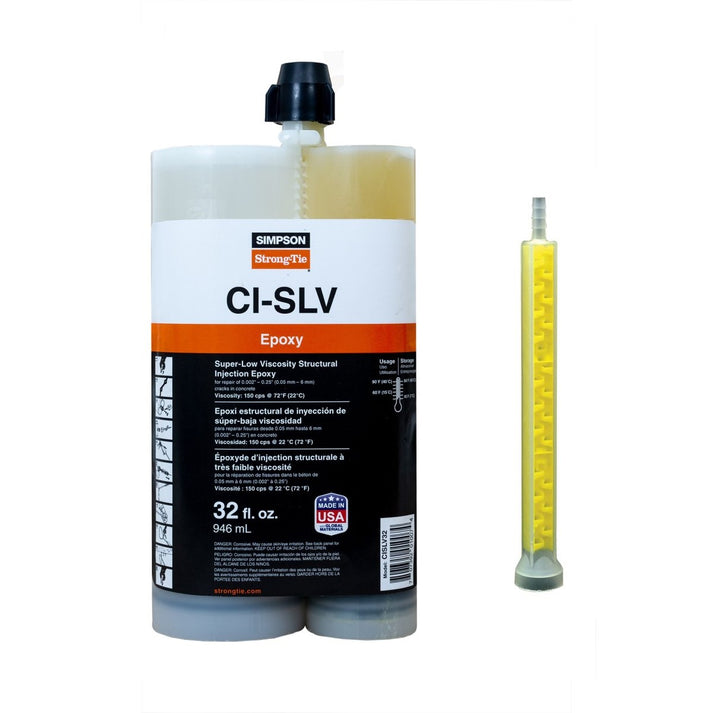

Each pack contains (1) CISLV32 Super-Low-Viscosity Structural Injection Epoxy, EMNO22 mixing nozzle.
Frequently Asked Questions
- What types of surfaces is the CI-SLV epoxy compatible with?
- The CI-SLV is moisture-tolerant and can be used on both dry and damp concrete surfaces, making it suitable for a wide range of field conditions including underwater pressure-injection applications.
- What crack widths can this epoxy effectively fill?
- Due to its super-low viscosity of 150 cP and low surface tension, the CI-SLV is formulated to penetrate and fill hairline cracks as narrow as 0.002" and cracks up to 1/4" (6 mm) in width.
- What dispensing tools are compatible with the CISLV32 cartridge?
- The 32 oz. side-by-side cartridge is compatible with Simpson Strong-Tie ADT30S (manual) and ADT30P (pneumatic) dispensing tools, and is dispensed through the included EMNO22 static mixing nozzle.
- Does the CI-SLV epoxy provide a structural repair, or does it only seal cracks?
- The CI-SLV chemically bonds with the concrete to provide a full structural repair. In addition, it seals the crack from moisture, protecting rebar embedded in the concrete from corrosion. It is also non-shrink and resistant to oils, salts, and mild chemicals.
