Product Features
Product Description

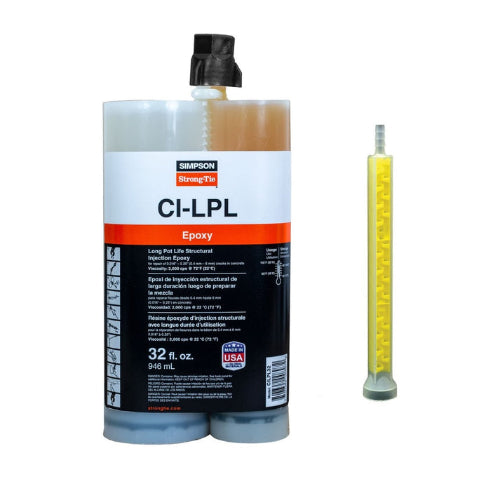

Simpson CILPL32 CI-LPL Long Pot Life Structural Injection Epoxy (32 oz.) from Simpson Strong-Tie is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding, and flood coat filling of concrete cracks when substrate temperatures are between 60 deg.F (16 deg.C) and 110 deg.F (43 deg.C). Formulated for maximum penetration under pressure, CI-LPL chemically bonds with concrete to deliver a true structural repair while sealing cracks from moisture to protect embedded rebar from corrosion.
Key Features
- Meets the requirements of ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
- Chemically bonds with the concrete to provide a structural repair; CI-LPL seals the crack from moisture, protecting rebar in the concrete from corrosion
- Moisture-tolerant, can be used on dry and damp surfaces
- Low surface tension at elevated temperatures allows the material to effectively penetrate narrow cracks
- Formulated for maximum penetration under pressure
- Suitable for pressure injection or gravity-feed applications
- Can be used with metered pressure-injection equipment
- Formulated for use in hot environments to 110 deg.F
- Non-shrink, resistant to oils, salts and mild chemicals, and freeze-thaw resistant
- Made in the United States
Specifications
- MPN: CILPL32
- Brand: Simpson Strong-Tie
- Capacity: 32 oz.
- Packaging Type: Cartridge
- Color: Amber
- Yield: 231 in.3/US gal. (0.001 m3/L)
- Viscosity: Low-viscosity (2,000 cP)
- Substrate Temperature Range: 60 deg.F (16 deg.C) - 110 deg.F (43 deg.C)
- Crack Width Range: 1/64 - - 1/4 - (0.4 - 6 mm)
- Standards: ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
- Country of Origin: United States
Approved Applications
- Pressure-injection of cracks in structural concrete
- Gravity-feed of cracks in horizontal concrete
- Low-viscosity epoxy repair of fine to medium width cracks 1/64 - - 1/4 - (0.4 - 6 mm) in width
- Structural repairs requiring a chemically bonded, load-bearing fix
- Underwater pressure-injection applications
- Use with metered pressure-injection equipment
- Flood coat filling of concrete cracks
What's Included
Each pack contains (1) CILPL32 Long-Pot-Life Structural Injection Epoxy, EMNO22 mixing nozzle.
Frequently Asked Questions
- What substrate temperature range is required when using CI-LPL?
- CI-LPL is designed for use when substrate temperatures are between 60 deg.F (16 deg.C) and 110 deg.F (43 deg.C), making it well suited for hot-weather concrete repair applications.
- Can CI-LPL be used on wet or damp concrete surfaces?
- Yes. CI-LPL is moisture-tolerant and can be applied to both dry and damp concrete surfaces, which makes it effective in a wide range of field conditions including underwater pressure-injection applications.
- What dispensing tools are compatible with the CI-LPL 32 oz. cartridge?
- The CI-LPL 32 oz. cartridge is compatible with the Simpson Strong-Tie ADT30S and ADT30P dispensing tools. The cartridge can be dispensed using either a manual or pneumatic dispensing tool through a static mixing nozzle.
- What crack widths can CI-LPL effectively fill?
- CI-LPL's low viscosity (2,000 cP) and low surface tension at elevated temperatures allow it to penetrate and repair fine to medium width cracks ranging from 1/64 - to 1/4 - (0.4 to 6 mm) in width under both pressure-injection and gravity-feed conditions.
