Product Features
Product Description

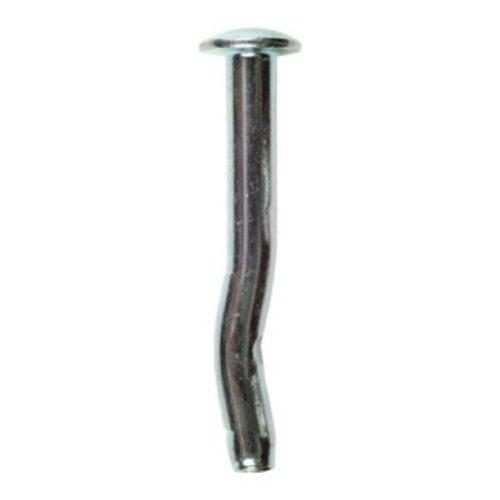

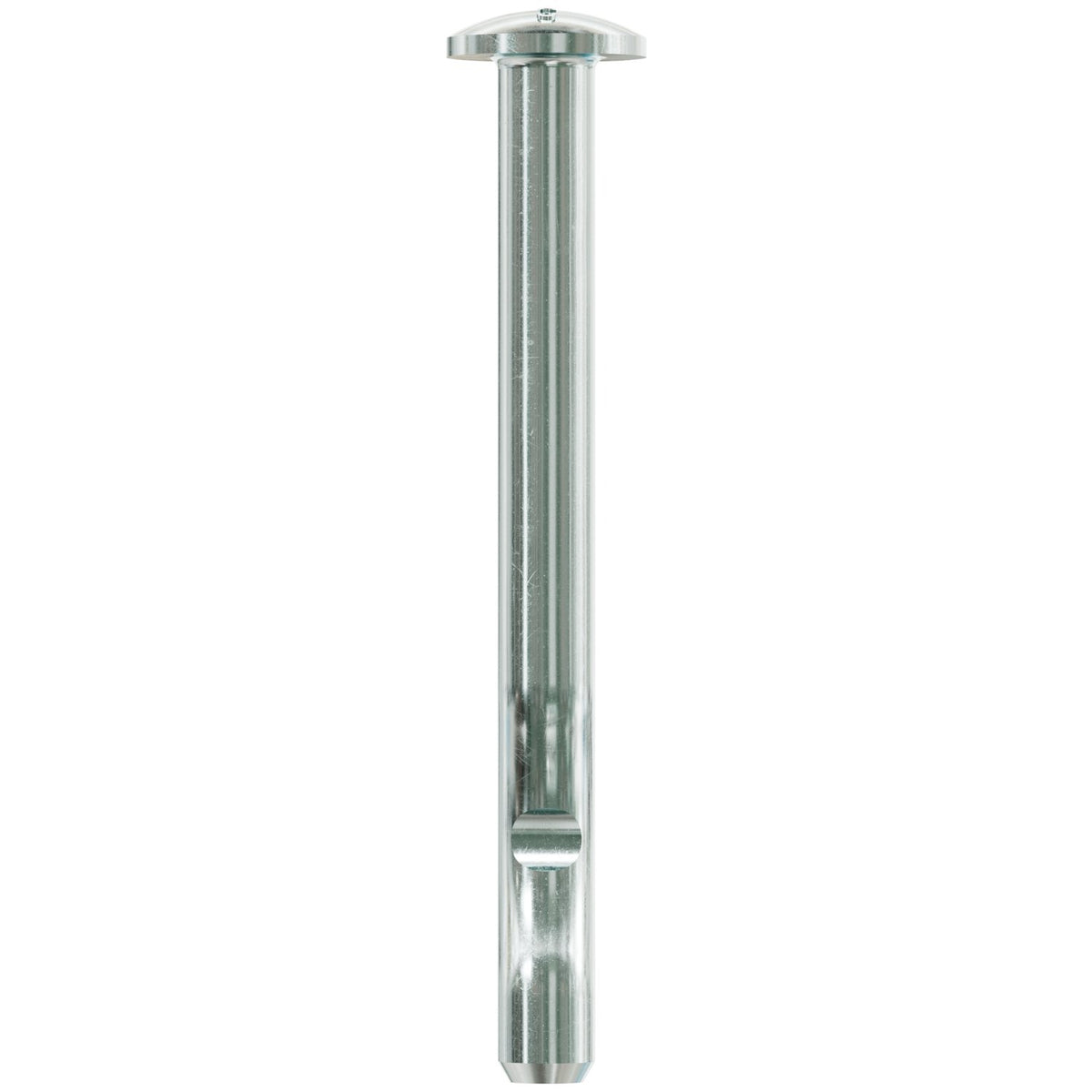

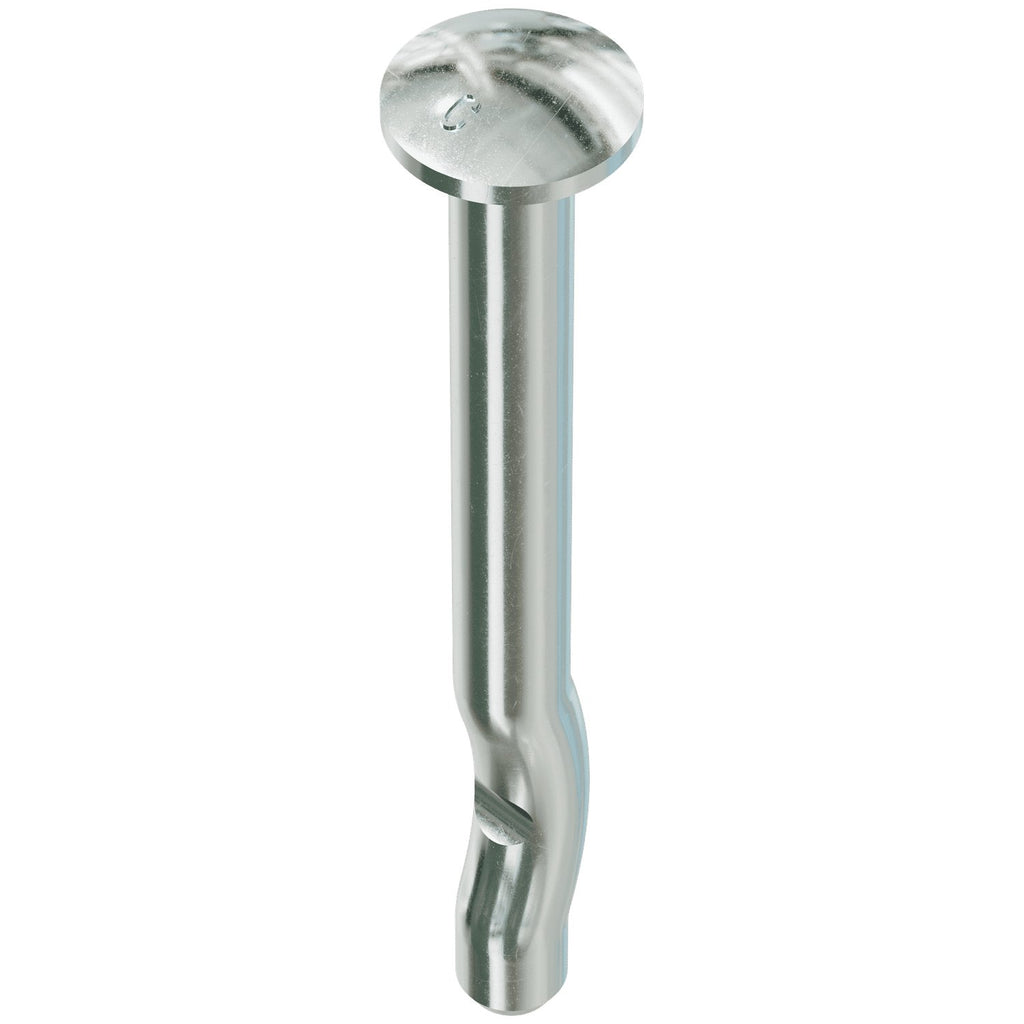

Simpson Strong-Tie CD25212M Crimp Drive 1/4 in. x 2-1/2 in. Zinc-Plated Mushroom Head Anchor is an easy-to-install expansion anchor engineered by Simpson Strong-Tie for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure, speeding up installation and reducing overall project time. The low-profile mushroom head delivers a tamper-proof solution ideal for fastening wood or light-gauge steel to concrete substrates.
Key Features
- Unique curved shaft design that provides secure placement
- Speeds up anchor installation by eliminating need for additional tightening
- Mushroom head provides a tamper-proof solution
- Zinc-plated carbon-steel anchor for corrosion resistance
- Preformed curvature acts as a built-in expansion mechanism - no secondary tightening required
- Compatible with concrete and grout-filled block substrates
Specifications
- MPN: CD25212M
- Brand: Simpson Strong-Tie
- Size: 1/4 in. x 2-1/2 in.
- Head Type: Mushroom Head
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Packaging: Packs of 100 and Cartons of 500
- Country of Origin: Taiwan
Approved Applications
- Fastening wood or light-gauge steel to concrete and grout-filled block
- Attaching concrete formwork
- Hanging overhead support for sprinkler pipes
- Installing suspended ceiling panels
- Any application requiring a tamper-proof mushroom head anchor
Frequently Asked Questions
- What substrates is the Simpson Strong-Tie CD25212M Crimp Drive anchor designed for?
- The CD25212M Crimp Drive anchor is specifically designed for use in concrete and grout-filled block, making it suitable for a wide range of structural fastening applications in these materials.
- Does the CD25212M require a secondary tightening step after installation?
- No. The preformed curvature along the anchor's shaft serves as a built-in expansion mechanism that secures the anchor in place upon installation, completely eliminating the need for any secondary tightening procedure.
- Why does the CD25212M feature a mushroom head?
- The mushroom head design provides a tamper-proof solution, making it ideal for applications where security and resistance to unauthorized removal are important considerations.
- What material and coating are used on the CD25212M anchor?
- The CD25212M is constructed from carbon steel with a zinc-plated finish, which provides a level of corrosion resistance suitable for the anchor's intended concrete and grout-filled block applications.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
