Product Features
Product Description

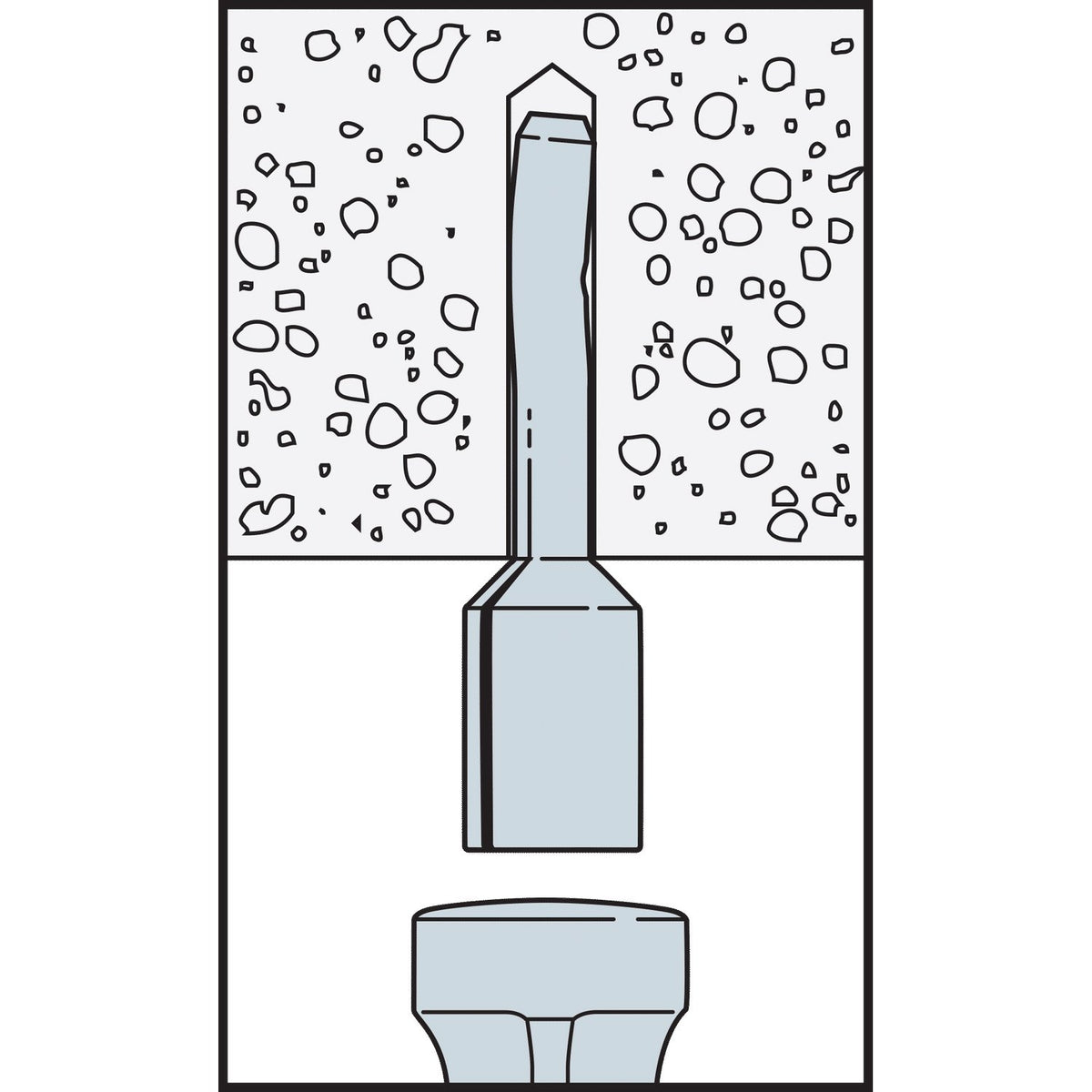

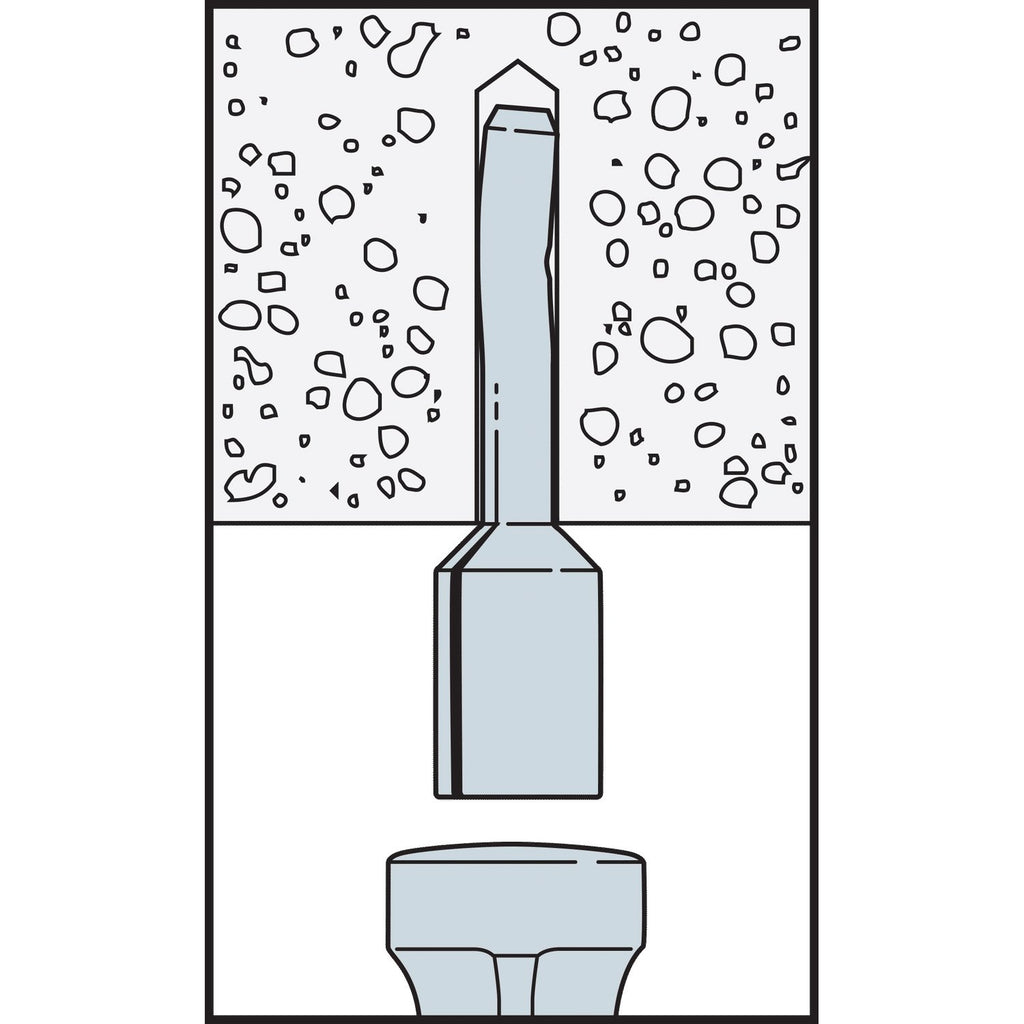

The Simpson Strong-Tie CD25114RC Crimp Drive 1/4 in. Zinc-Plated Rod-Coupler Head Anchor is an easy-to-install expansion anchor engineered by Simpson Strong-Tie for use in concrete and grout-filled block. Its preformed curvature along the shaft creates an expansion mechanism that secures the anchor firmly in place, eliminating the need for a secondary tightening procedure and significantly speeding up the installation process. The rod-coupler head style is specifically designed to accommodate threaded rod attachments, making it an ideal choice for overhead support and suspended system applications.
Key Features
- Unique curved shaft design that provides secure placement
- Speeds up anchor installation by eliminating need for additional tightening

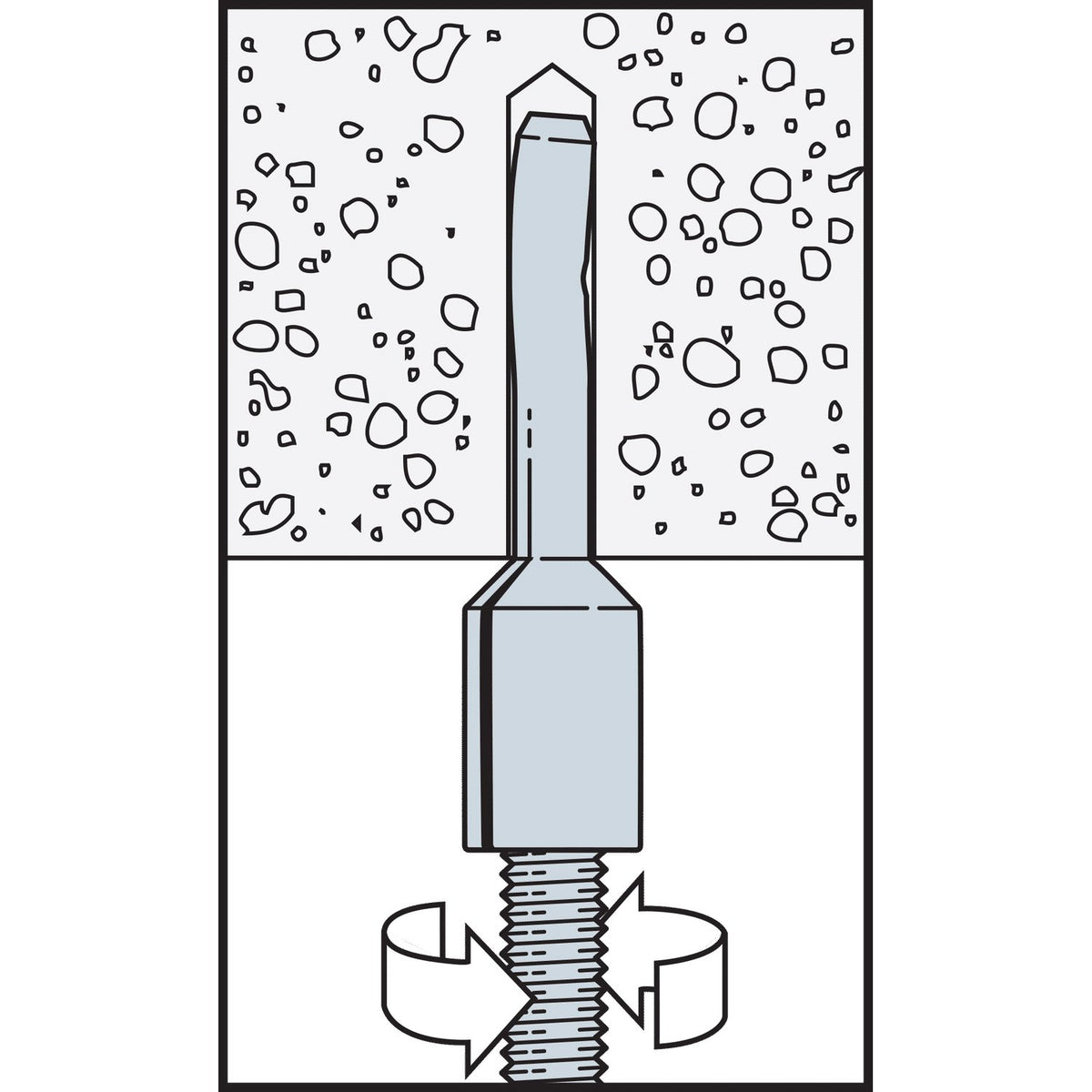

- Rod-coupler head allows for threaded rod attachments
- Zinc-plated carbon-steel anchor
- Size: 1/4 in.
Specifications
- MPN: CD25114RC
- Brand: Simpson Strong-Tie
- Head Type: Rod-Coupler Head
- Size: 1/4 in.
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Packaging: Packs of 100 and Cartons of 500
- Country of Origin: Taiwan
Approved Applications
- Installation in concrete substrates
- Installation in grout-filled block

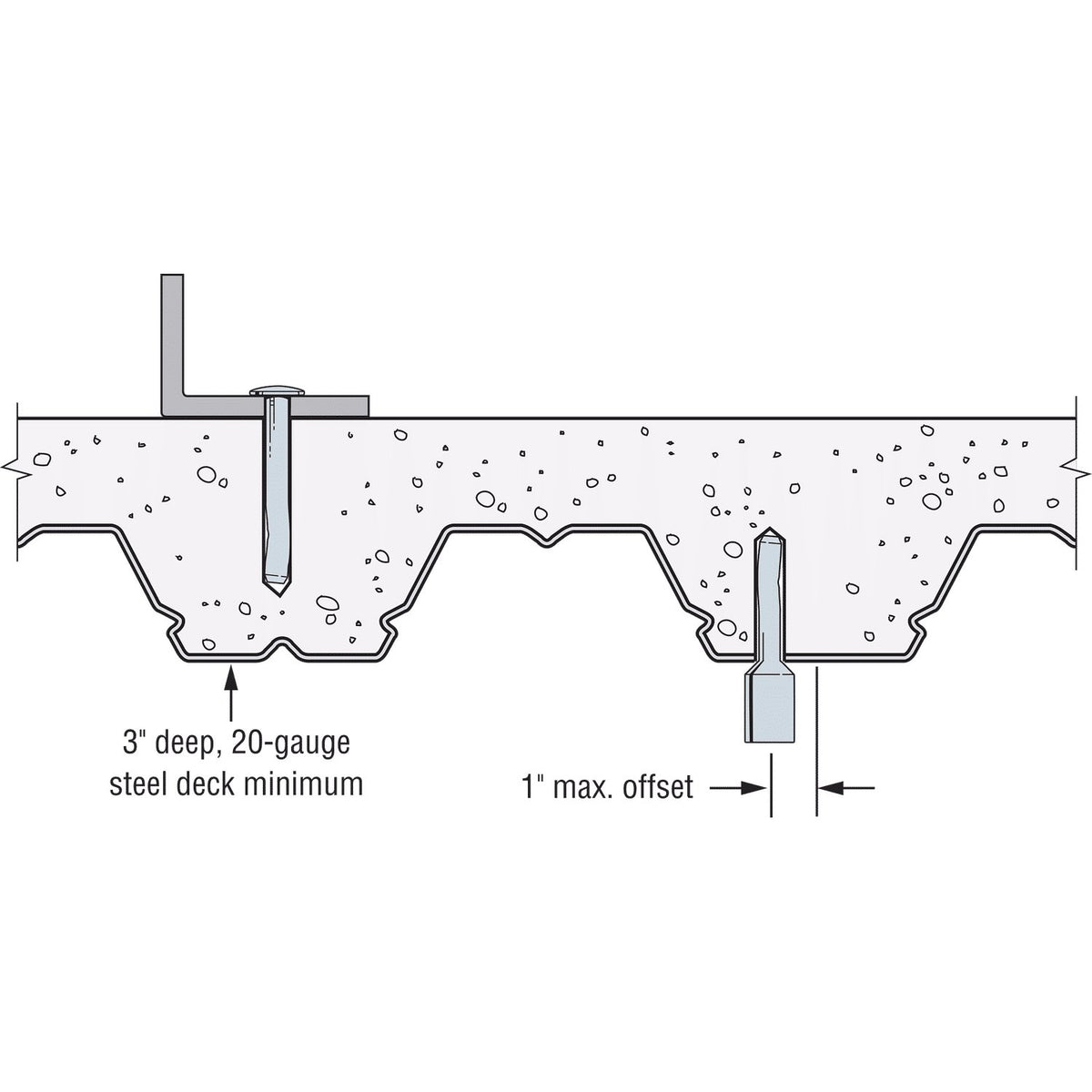

- Fastening wood or light-gauge steel to concrete or grout-filled block
- Attaching concrete formwork
- Hanging overhead support for sprinkler pipes
- Supporting suspended ceiling panels via threaded rod attachments
Frequently Asked Questions
- What makes the Crimp Drive anchor faster to install than traditional expansion anchors?
- The preformed curvature along the shaft acts as a built-in expansion mechanism that secures the anchor in place upon installation, eliminating the need for a secondary tightening procedure and reducing overall installation time.
- What substrate materials is the Simpson CD25114RC designed for use in?
- The CD25114RC Crimp Drive anchor is designed specifically for use in concrete and grout-filled block applications.
- Why is the rod-coupler head style used on this anchor?
- The rod-coupler head is designed to allow for threaded rod attachments, making it well-suited for overhead support applications such as hanging sprinkler pipes or suspending ceiling panels.
- What material and finish is the CD25114RC anchor made from?
- The CD25114RC anchor is constructed from carbon steel with a zinc-plated finish, which provides a protective coating for the anchor during use.
Note: Product dimensions may differ from picture.
