Product Features
Product Description

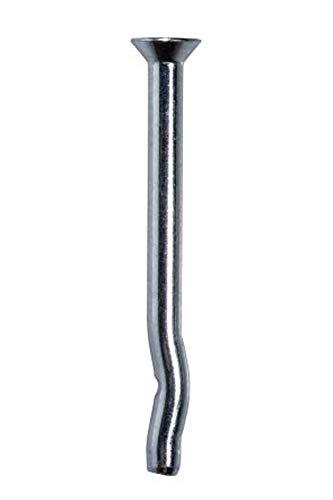

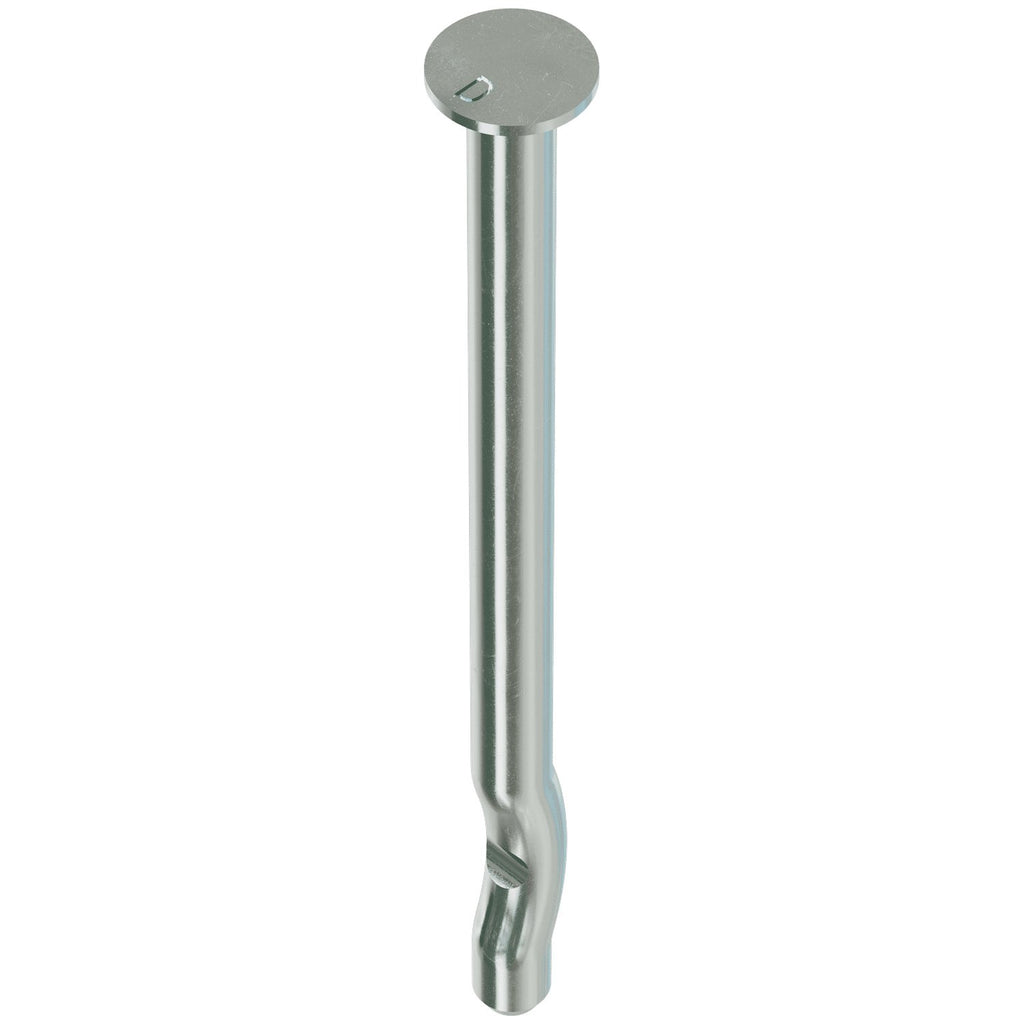

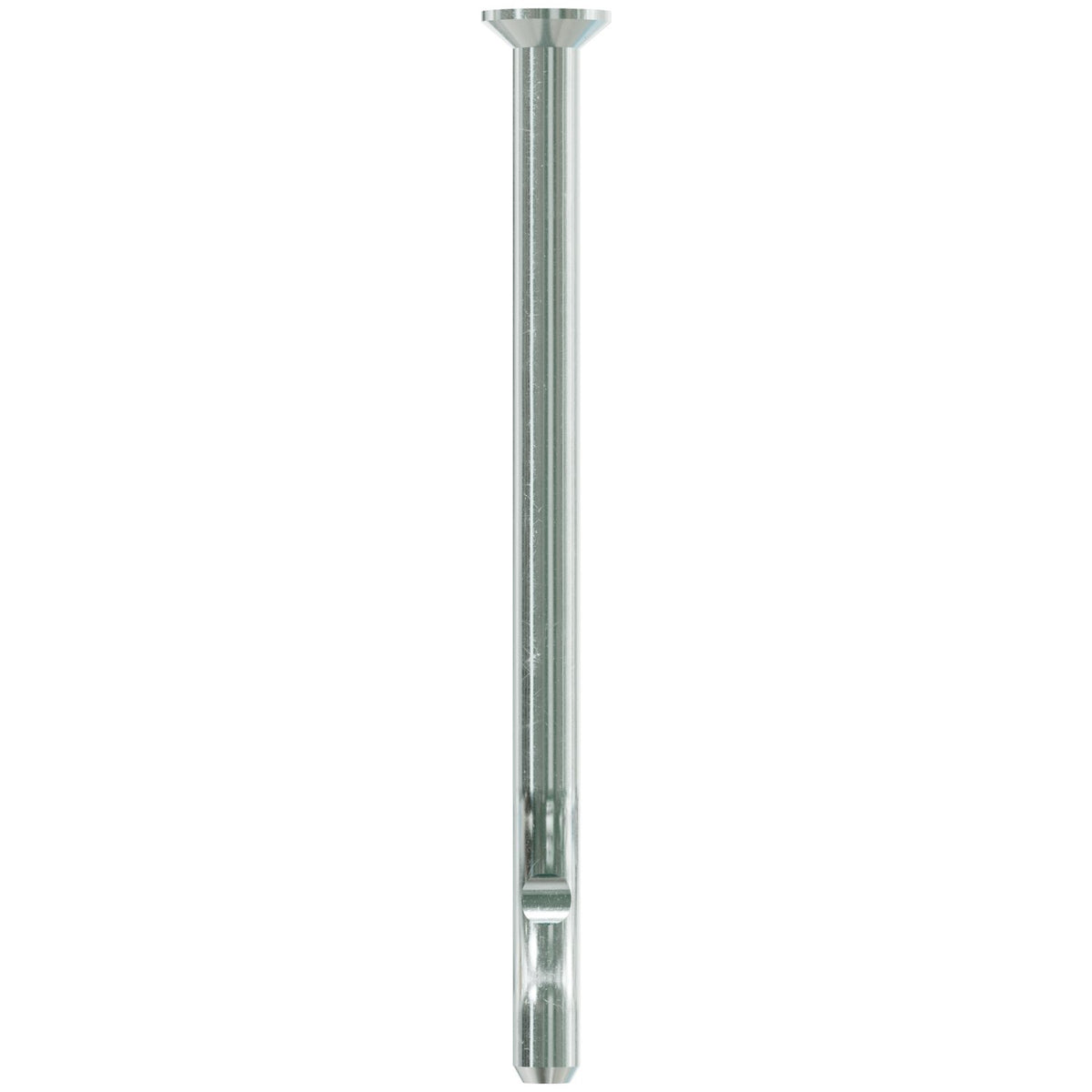

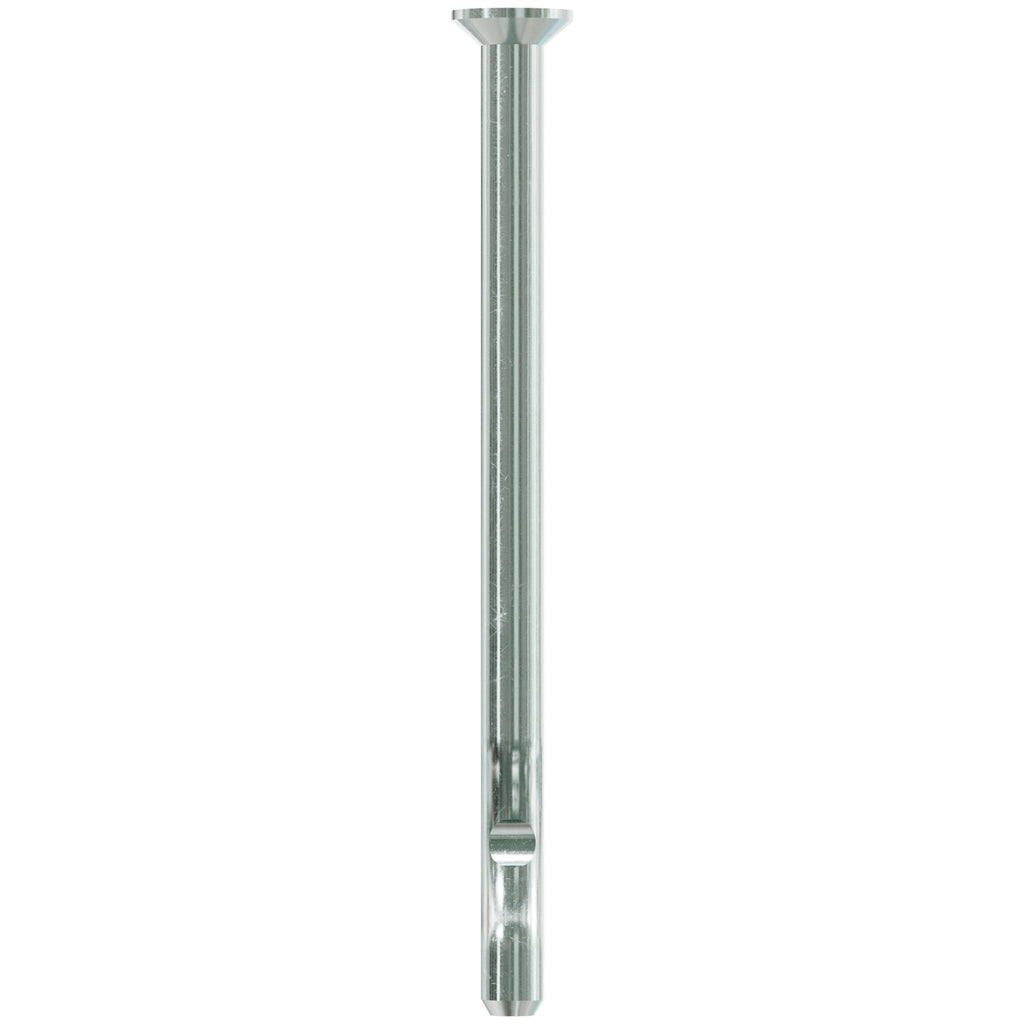

Simpson Strong-Tie CD18300C Crimp Drive 3/16 in. x 3 in. Zinc-Plated Countersunk Head Anchor is an easy-to-install expansion anchor engineered by Simpson Strong-Tie for secure fastening in concrete and grout-filled block. The preformed curvature along the shaft creates a built-in expansion mechanism that locks the anchor firmly in place, eliminating the need for a secondary tightening procedure and significantly speeding up the installation process. The countersunk head delivers a flush, zero-profile finish ideal for applications where a low-profile surface is required.
Key Features
- Unique curved shaft design that provides secure placement
- Speeds up anchor installation by eliminating need for additional tightening
- Countersunk head provides a zero-profile solution
- Zinc-plated carbon-steel anchor
- Size: 3/16 in. x 3 in.
Specifications
- Manufacturer Part Number (MPN): CD18300C
- Brand: Simpson Strong-Tie
- Size: 3/16 in. x 3 in.
- Head Type: Countersunk Head
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Packaging: Packs of 100 and Cartons of 500
- Country of Origin: Taiwan
Approved Applications
- Fastening wood or light-gauge steel to concrete and grout-filled block
- Attaching concrete formwork
- Hanging overhead support for sprinkler pipes
- Suspended ceiling panel support installations
Frequently Asked Questions
- What base materials is the Simpson Strong-Tie CD18300C designed for?
- The CD18300C Crimp Drive anchor is designed for use in concrete and grout-filled block, making it suitable for a wide range of structural and mechanical fastening tasks in masonry construction.
- Does the CD18300C require tightening after installation?
- No. The preformed curvature along the shaft acts as a built-in expansion mechanism that secures the anchor firmly in place upon driving, eliminating the need for any secondary tightening procedure.
- What is the benefit of the countersunk head on this anchor?
- The countersunk head provides a zero-profile solution, meaning the anchor sits flush with or below the surface of the fixture material. This is ideal for applications where a clean, low-profile finish is required.
- What material and finish is the CD18300C made from?
- The CD18300C is constructed from zinc-plated carbon steel, which provides corrosion resistance and durability suited for concrete and grout-filled block fastening applications.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
