Product Description

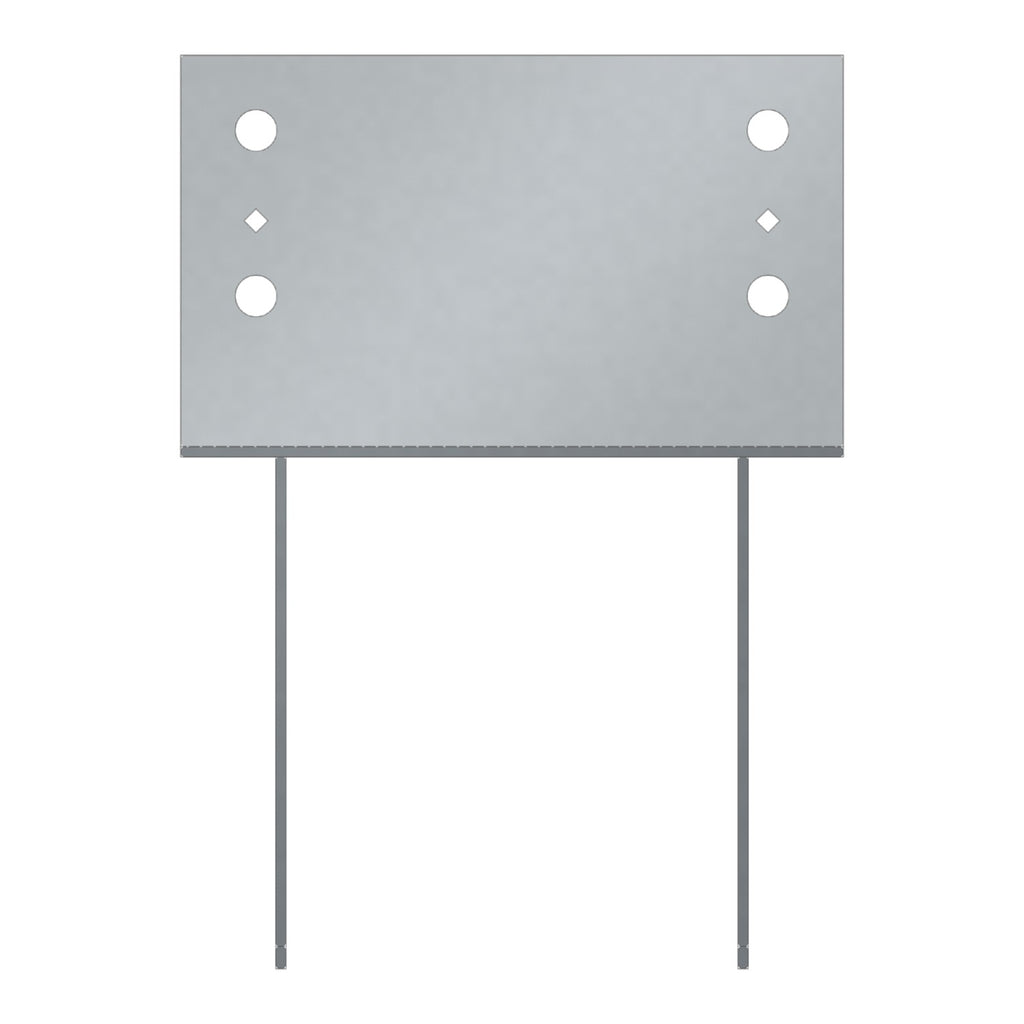

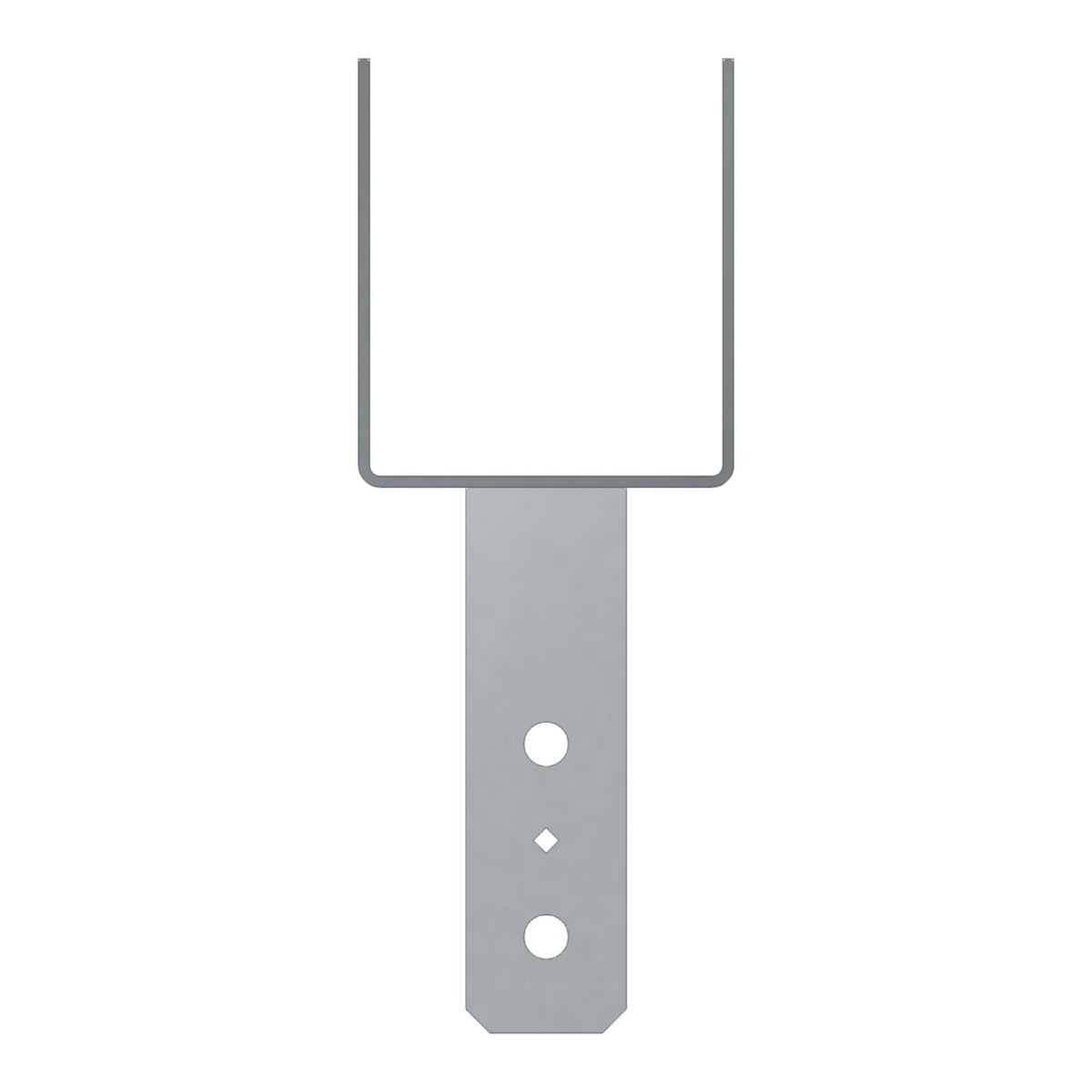

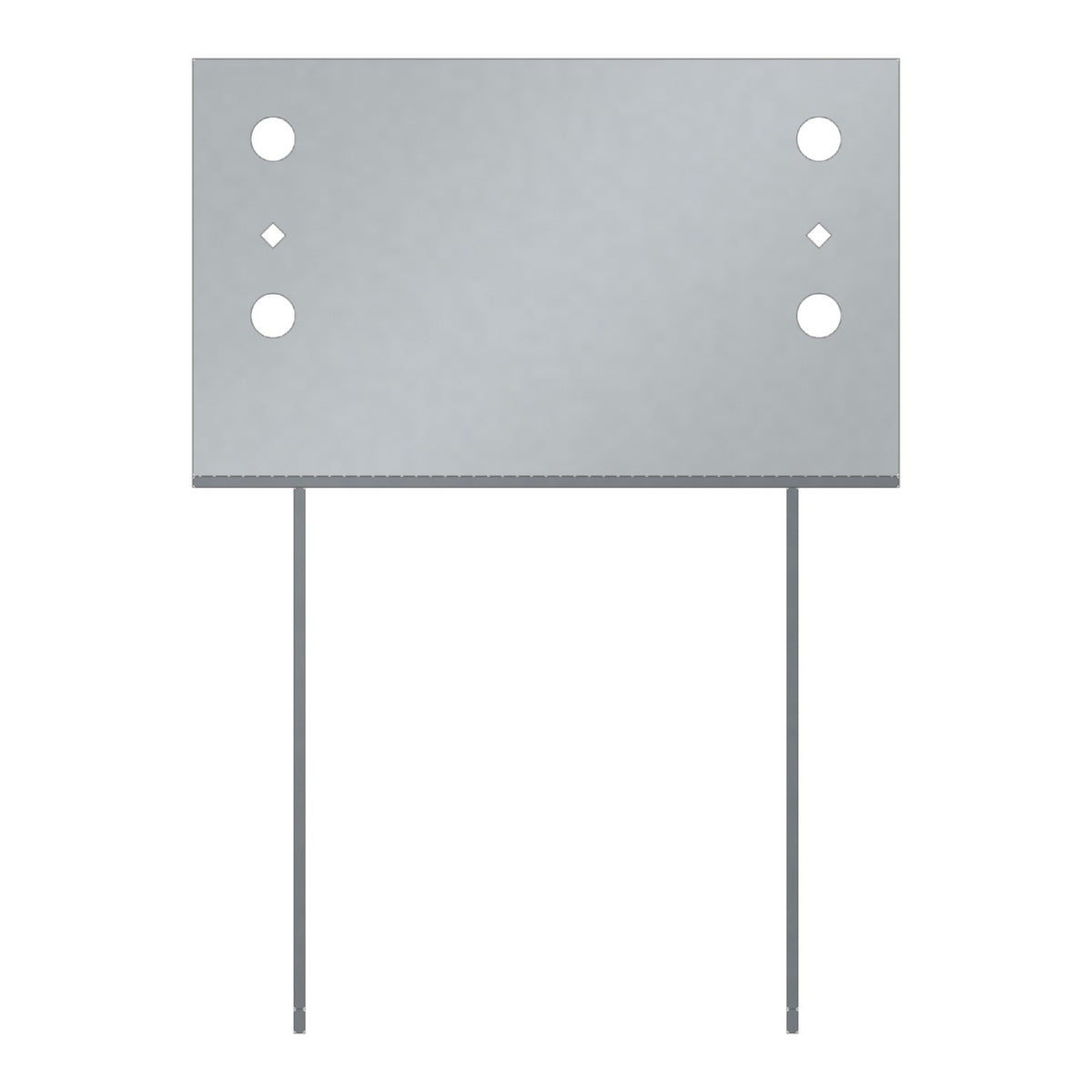

The Simpson CC68 CC Column Cap for 6x Beam, 8x Post by Simpson Strong-Tie is engineered to deliver strong, reliable column-beam connections in wood construction. The seat of the column cap provides additional surface area of bearing that extends beyond each side of the column, helping to distribute the load from the beam and provide dependable support for the connection - making it a trusted choice for demanding structural applications including those subject to earthquake or wind loading.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 6x
- Nominal post size: 8x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- Model Number: CC68
- Member Size: 6x Beam, 8x Post
- Beam Width: 5-1/4 in. or 5-1/2 in.
- Width 1: 5-1/2 in.
- Width 2: 7-1/2 in.
- Length 1: 11 in.
- Height 1: 6-1/2 in.
- Gauge: 7
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: Install with (6) 5/8-in. diameter bolts (sold separately)
- Post Size: 6x8
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg.
- For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Material
CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge
Downloads and Resources
- Straps may be rotated 90 (See Spec Sheet) and for CC5 1/4-6.
Frequently Asked Questions
- What size beam and post is the CC68 designed for?
- The CC68 is designed for a nominal 6x beam width and a nominal 8x post size, making it the correct column cap selection for that specific beam-to-post combination in wood construction.
- How is the CC68 installed and what fasteners are required?
- The CC68 is installed using (6) 5/8-in. diameter bolts. The bolt spacing is designed to meet NDS code requirements to ensure optimal performance. Diamond holes are also included to allow for temporary fastening during installation.
- What makes the CC68 suitable for high-wind or seismic applications?
- The CC68 features uplift loads that are increased for earthquake or wind loading, along with certified welds that provide confidence in strength and load capacity. These characteristics make it well suited for use in areas subject to elevated lateral or uplift forces.
- What material and finish is the CC68 made from?
- The CC68 is constructed from 7-gauge steel and features a Simpson Strong-Tie gray paint finish, providing a durable and consistent protective coating for structural use.
Note: Product dimensions and/or Screw/Bolt holes may differ from picture.
