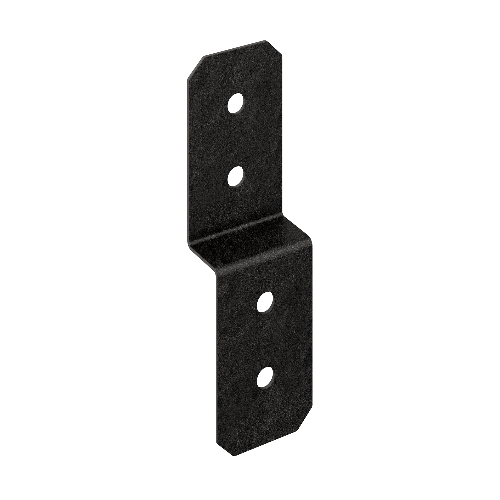

The Simpson Outdoor Accents Avant Collection 3-in. ZMAX Black Powder-Coated Deck Joist Tie is a decorative structural connector engineered to attach 2x joists to the side of 4x or larger support posts in custom outdoor living structures. Built on Simpson's Outdoor Accents platform, this deck joist tie pairs genuine structural performance with a refined, finished appearance - making it a practical choice for exposed framing connections on decks, pergolas, and similar exterior builds. When installed with the matching Outdoor Accents structural wood screws and hex-head washers, it delivers the look of a bolted connection without sacrificing structural integrity.

Key Features

• Avant Collection design with straight edges and chamfered corners - gives exposed joist connections a clean, timeless aesthetic that complements finished outdoor living structures rather than detracting from them
• Connects 2x joists to 4x or larger support posts - provides a code-compatible, structurally sound attachment point sized for common deck and post framing configurations
• 12-gauge steel construction - delivers the rigidity and load-bearing durability expected of a structural connector in demanding exterior applications
• ZMAX galvanization with black powder coat finish - the dual-layer protection addresses both corrosion resistance for exterior and treated-wood environments and a bold decorative appearance once installed
• Installs with Outdoor Accents structural wood screws and STN22 hex-head washers - the hex-head washer system creates the visual impression of a bolted connection, elevating the finished look of the joint (fasteners sold separately)

Why This Product

• Structural performance meets decorative finish - unlike standard joist hardware that is meant to be hidden, this connector is designed to be seen, combining 12-gauge steel strength with a black powder-coated appearance suited for visible framing on outdoor structures
• Dual-layer corrosion protection built for the outdoors - ZMAX galvanization paired with a black powder coat provides an enhanced level of resistance against the moisture, UV exposure, and chemical contact that treated lumber and exterior conditions present
• Part of a coordinated hardware system - as a member of the Avant Collection within the Outdoor Accents line, this connector is designed to match other Simpson decorative connectors and fasteners, making it easier to achieve a consistent, unified look across an entire outdoor project
• Quick, straightforward installation with a finished result - the connector installs with a defined fastener specification using Outdoor Accents structural wood screws and hex-head washers, producing a clean, bolted appearance without requiring specialty tools or complex techniques

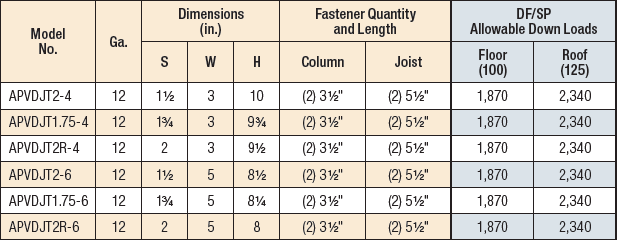

Specifications

• MPN: APVDJT2-4
• Width: 3 inches
• Height: 10 in.
• Depth: 1-1/2 inches
• Gauge: 12
• Member Size: 2x joist, 4x or larger post
• Coating: ZMAX
• Finish: ZMAX Galvanized with Black Powder Coat
• Country of Origin: United States
• Installation Fasteners: Install with Outdoor Accents structural wood screws: (2) SDWS22312DBB and (2) SDWS22512DBB, and (4) STN22 hex-head washers (sold separately)

Frequently Asked Questions

What lumber sizes is the APVDJT2-4 compatible with?

This deck joist tie is designed for a nominal 2x joist connecting to a nominal 4x or larger post.

What fasteners are required to install the APVDJT2-4?

Installation requires Outdoor Accents structural wood screws - specifically (2) SDWS22312DBB and (2) SDWS22512DBB screws - along with (4) STN22 hex-head washers. These fasteners are sold separately and are not included with the connector.

Why does the APVDJT2-4 feature both ZMAX galvanization and a black powder coat?

The ZMAX galvanization provides an enhanced level of corrosion resistance suited for exterior conditions and contact with treated wood, while the black powder coat adds a decorative finish that gives the connector a bold, finished appearance once installed.

What makes the Avant Collection distinct from other Outdoor Accents connectors?

The Avant Collection is characterized by straight edges and chamfered corners, delivering a clean, timeless design aesthetic. When installed with the matching Outdoor Accents structural wood screws and hex-head washers, the hardware achieves the appearance of a bolted connection for a polished, custom outdoor living look.

Related Products

• STN22 Washers
• SDWS22512DBB Screws
• SD10112DBB Outdoor Accents Structural Wood Screws

Note: The structural screws, hex head washers, and concrete anchors are not included.
