The Simpson Outdoor Accents Avant Collection Deck Joist Tie by Simpson is a decorative structural connector built to attach 1-3/4-in. wide by 5-1/2-in. or taller joists to the side of nominal 4x or larger support posts in custom outdoor living structures and decks. Finished with ZMAX galvanization and a black powder coat, this connector delivers lasting corrosion resistance for exterior and treated-wood applications while keeping the look clean and intentional - making structural hardware a visible design element rather than something to hide.

Key Features

• Avant Collection design with straight edges and chamfered corners - gives your deck framing a clean, timeless appearance that complements modern and transitional outdoor builds
• Fits 1-3/4-in. joists paired with nominal 4x or larger support posts - matches common deck framing dimensions so the connector integrates naturally into your structure without modification
• Formed from 12-gauge steel - provides reliable structural performance at the joist-to-post connection where load transfer matters most
• ZMAX galvanization with a black powder coat - combines two layers of corrosion protection, making this connector suitable for exposed exterior conditions and contact with treated wood where standard finishes can break down over time
• Installs using Outdoor Accents structural wood screws and STN22 hex-head washers - the hex-head washer fastener system creates the appearance of a bolted connection, reinforcing the hardware-forward aesthetic of the Avant Collection

Why This Product

• Structural and decorative in one connector - rather than concealing your framing hardware, this deck joist tie is designed to be seen, bringing a refined, hardware-forward look to pergolas, decks, and other outdoor living structures without sacrificing the strength the connection requires
• Two-layer corrosion protection for long-term exterior performance - the combination of ZMAX galvanization and black powder coat is specifically engineered for outdoor and treated-wood environments, so the finish holds up where moisture and chemical exposure would degrade standard connectors
• Part of a coordinated hardware collection - the Avant Collection spans connectors and fasteners with a consistent design language, allowing builders and homeowners to carry the same straight-edge, chamfered-corner aesthetic across an entire outdoor structure
• Fastener system creates a finished, intentional look - installation with Outdoor Accents structural wood screws and hex-head washers produces the visual weight of a bolted connection, giving custom outdoor builds a crafted appearance that exposed standard fasteners cannot achieve

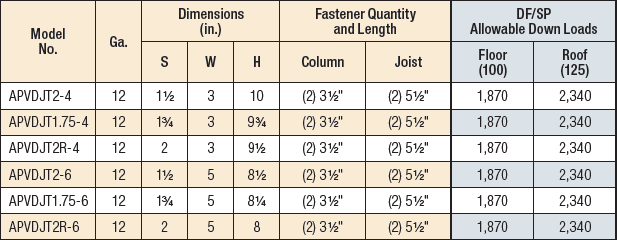

Specifications

• MPN: APVDJT1.75-4
• Brand: Simpson Strong-Tie
• Collection: Outdoor Accents - Avant Collection
• Width: 3 in.
• Height: 9-3/4 in.
• Depth: 1-3/4 in.
• Gauge: 12
• Member Size: 1-3/4 in. joist, 4x or larger post
• Coating: ZMAX
• Finish: ZMAX Galvanized with Black Powder Coat
• Country of Origin: United States

Approved Applications

• Attaching 1-3/4-in. wide by 5-1/2-in. or taller deck joists to the side of 4x or larger support posts
• Exterior outdoor living structures and decks
• Applications involving treated wood where enhanced corrosion resistance is required

Downloads and Resources

• View Spec Sheet?

Frequently Asked Questions

What size joist and post is the APVDJT1.75-4 designed for?

This deck joist tie is designed for 1-3/4-in. wide by 5-1/2-in. or taller joists attaching to the side of a nominal 4x or larger support post.

What fasteners are required to install this deck joist tie?

Install with Outdoor Accents structural wood screws: (2) SDWS22312DBB and (2) SDWS22512DBB, and (4) STN22 hex-head washers. These fasteners are sold separately and are not included with the connector.

Why does this connector use ZMAX galvanization with a black powder coat?

The ZMAX galvanization combined with a black powder coat provides extra corrosion resistance, making it suitable for exterior applications and use with treated wood where moisture and chemical exposure can degrade standard finishes over time.

What makes the Avant Collection distinct from other Simpson Outdoor Accents hardware?

The Avant Collection is distinguished by its straight edges and chamfered corners, delivering a clean, timeless aesthetic that complements custom outdoor living structures while maintaining structural integrity.
