Product Features
Product Description

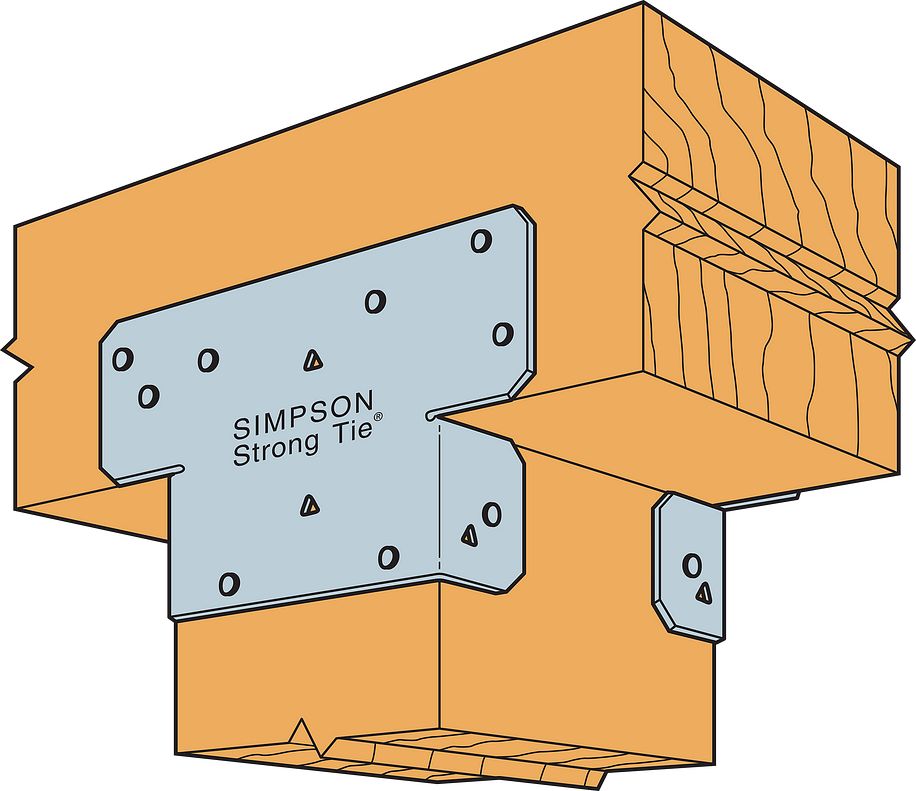

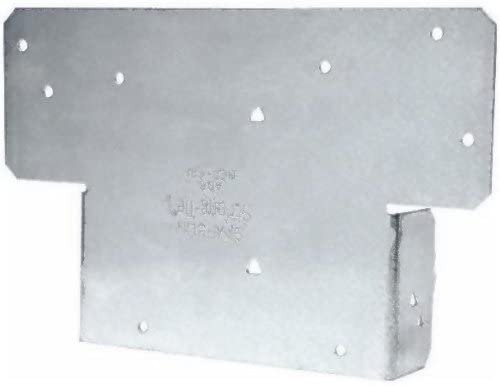

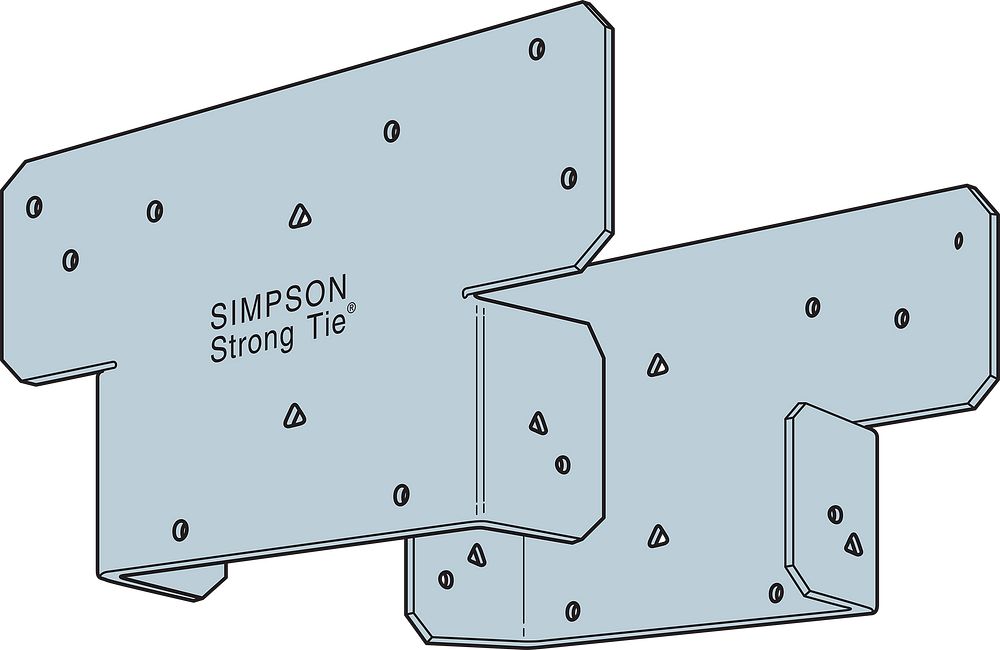

The Simpson AC6SS AC Stainless-Steel Adjustable Post Cap for 6x Lumber is a heavy-duty structural connector engineered by Simpson Strong-Tie to provide a positive, secure connection between a beam and the top of a post. Designed for both new construction and retrofit applications where structural support is needed, this post cap eliminates the weakness of end-grain nailing and delivers a stronger connection than angled nailing or screw fastening. Fabricated from 18-gauge stainless steel, it offers high and severe corrosion resistance, making it an excellent choice for demanding exterior environments.
Key Features
- Eliminates nailing into end grains
- Stronger than angled nailing or screw fastening
- Length: 8-1/2 in.
- For use with nominal 6x lumber
- Made from 18-gauge steel
- Stainless steel for high/severe corrosion resistance
- Ideal for new or retrofit applications where structural support is needed
- Always installed in pairs to provide a positive beam-to-post connection
- Made in the United States
Specifications
- MPN: AC6SS
- Material: Stainless Steel
- Finish: Stainless Steel
- Gauge: 18
- Length: 8-1/2 in.
- Member Size: 6x
- Install With: 0.162 in. x 3-1/2 in. stainless-steel nails
- Country of Origin: United States
Frequently Asked Questions
- What lumber size is the AC6SS post cap designed to work with?
- The AC6SS is specifically designed for use with nominal 6x lumber, making it the correct choice when working with standard 6x posts and beams.
- Why should the AC6SS be used instead of angled nailing or screw fastening?
- The AC6SS post cap is engineered to be stronger than angled nailing or screw fastening and eliminates the structural weakness caused by nailing into end grains, resulting in a more reliable and secure beam-to-post connection.
- Why does the AC series always need to be installed in pairs?
- The AC series is designed to provide a positive connection between a beam and a post, and these connectors are always installed in pairs to ensure balanced load transfer and structural integrity at the connection point.
- What type of fasteners are required to install the AC6SS post cap?
- The AC6SS should be installed with 0.162 in. x 3-1/2 in. stainless-steel nails to maintain compatibility with the stainless-steel construction and ensure corrosion resistance throughout the connection.
Note: Product dimensions and/or nail or screw holes may differ from picture. Please see item description for specifications.
