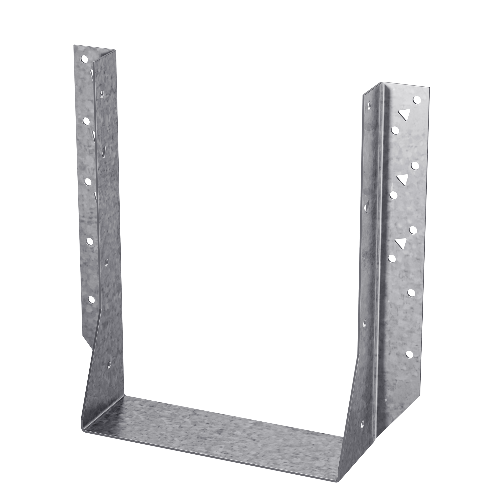

The Simpson 8 x 12 Face-Mount Joist Hanger is a heavy-duty framing connector engineered by Simpson Strong-Tie for structures requiring additional strength and safety factors. Built from 14-gauge steel with a Zinc Galvanized G90 finish, this face-mount hanger is designed to deliver dependable performance in demanding load applications where a large-member connection is critical. Its "U" design offers placement flexibility on the header, making it a go-to solution for engineers and contractors tackling heavy timber framing and commercial or residential structural work.

Key Features

• "U" design allows for flexibility of placement on the header - makes it easier to position and align the hanger accurately during installation, reducing frustration and saving time on the job.
• Nominal joist size: 8x12 - purpose-built for large-member framing applications where a standard hanger simply will not carry the load.
• Made from 14-gauge steel - provides the structural integrity and load-bearing capacity that heavy-duty framing projects demand.
• Galvanized (G90) for extra corrosion resistance - the Zinc Galvanized G90 coating helps extend the service life of the connector across a wide range of environments, including moisture-prone conditions.

Why This Product

• Engineered for heavy-duty framing - Simpson Strong-Tie designed the HU series specifically for structures requiring additional strength and safety factors, giving builders confidence when the stakes are high.
• Flexible installation on the header - the "U" design lets you adjust placement to suit field conditions, reducing the need for rework and keeping the project moving.
• Built to meet the demands engineers and contractors rely on - Simpson Strong-Tie connectors are engineered, tested, and manufactured to high quality standards, making this hanger a trusted choice on projects where code compliance and structural performance matter.
• Long-term corrosion protection included - the G90 Zinc Galvanized coating is integrated into the product, so the connector arrives ready to perform in challenging environments without additional treatment.

Specifications

• MPN: HU812
• Member Size: 8x12
• Height: 10-1/8 in.
• Width: 7-1/2 in.
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU812 designed to support?

The HU812 is designed for a nominal joist size of 8x12, making it suitable for heavy-duty framing applications that require a larger member connection.

What type of nails should be used to install the HU812?

The HU812 should be installed with 0.162 in. x 3-1/2 in. nails, as specified by Simpson Strong-Tie for proper load performance.

What corrosion protection does the HU812 have?

The HU812 features a Zinc Galvanized G90 coating, which provides extra corrosion resistance to help extend the service life of the connector in various environments.

What is the advantage of the "U" design on the HU812?

The "U" design of the HU812 allows for flexibility of placement on the header, making it easier to position and align the hanger correctly during installation.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
