Product Features
Product Description

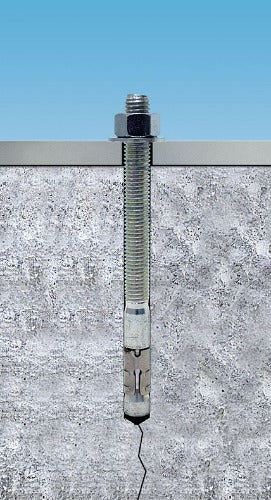

Simpson Strong-Bolt 2 Wedge Anchor - 5/8" x 8-1/2" Mechanically Galvanized is a heavy-duty wedge-type expansion anchor from Simpson Strong-Tie, engineered for high-load applications in exterior environments. The mechanically galvanized carbon steel construction delivers reliable corrosion resistance, making it well suited for demanding outdoor concrete and masonry installations.
Key Features
- Wedge-type expansion anchor with dual undercutting embossments on each clip segment for enhanced holding performance
- Mechanically galvanized finish provides corrosion resistance for exterior and exposed applications
- Tested in uncracked concrete in accordance with AC193
- Tested in uncracked masonry in accordance with AC01
- Suitable for horizontal, vertical, and overhead installations
- 5/8" diameter anchor body with a 5/8" required drill bit diameter for precise fit
- 5-inch thread length provides substantial fastening depth
Specifications
- Model Number: STB2-62812MG
- Size: 5/8 in. x 8-1/2 in.
- Drill Bit Diameter: 5/8 in.
- Thread Length: 5 in.
- Coating / Material: Mechanically Galvanized / Carbon Steel
- Anchor Body Material: Mechanically Galvanized Carbon Steel
- Nut Material: Carbon Steel ASTM A 563, Grade A
- Washer Material: Carbon Steel ASTM F844
- Clip Material: Carbon Steel ASTM A 568
- Packaging: Packs of 20 and Cartons of 40
Approved Applications
- Exterior concrete fastening applications requiring high load resistance
- Uncracked concrete installations (tested per AC193)
- Uncracked masonry installations (tested per AC01)
- Horizontal anchor installations
- Vertical anchor installations
- Overhead anchor installations
Frequently Asked Questions
- What finish does the STB2-62812MG anchor have, and why does it matter?
- The anchor features a mechanically galvanized finish on its carbon steel body. This coating is specifically designed to provide corrosion resistance, making the anchor appropriate for exterior and exposed applications where uncoated steel would be at risk of degradation.
- What drill bit size is required to install this anchor?
- A 5/8-inch diameter drill bit is required to create the properly sized hole for this anchor. Using the correct drill bit diameter ensures the wedge expansion mechanism functions as intended for a secure hold.
- Has this anchor been independently tested for performance?
- Yes. The Strong-Bolt 2 mechanically galvanized anchor has been tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01, providing verified load-resistance data for engineering and installation purposes.
- Can this anchor be used in overhead or horizontal orientations, or only vertically?
- This anchor is suitable for horizontal, vertical, and overhead applications, giving installers flexibility across a wide range of structural fastening scenarios.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
