Product Features
Product Description

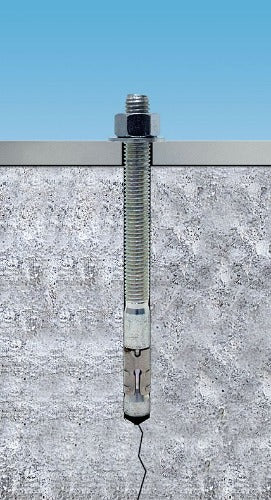

Simpson Strong-Bolt 2 Wedge Anchor - Mechanically Galvanized, 5/8" x 6" is a heavy-duty wedge-type expansion anchor from Simpson Strong-Tie, engineered for high-load applications in exterior environments. The mechanically galvanized carbon steel construction provides corrosion resistance suited for outdoor use, while the dual undercutting embossments on each clip segment deliver reliable holding strength in both concrete and masonry substrates.
Key Features
- Wedge-type expansion anchor with mechanically galvanized finish for exterior applications
- Dual undercutting embossments on each clip segment for enhanced load resistance
- Suitable for horizontal, vertical, and overhead installations
- Tested in uncracked concrete in accordance with AC193
- Tested in uncracked masonry in accordance with AC01
- Anchor body constructed of mechanically galvanized carbon steel
- Includes carbon steel nut (ASTM A 563, Grade A), washer (ASTM F844), and clip (ASTM A 568)
Specifications
- Model Number: STB2-62600MG
- Size: 5/8 in. x 6 in.
- Drill Bit Diameter: 5/8 in.
- Thread Length: 4 in.
- Anchor Body Material: Mechanically Galvanized Carbon Steel
- Nut Material: Carbon Steel ASTM A 563, Grade A
- Washer Material: Carbon Steel ASTM F844
- Clip Material: Carbon Steel ASTM A 568
- Finish/Coating: Mechanically Galvanized
- Packaging: Packs of 20 and Cartons of 80
Approved Applications
- Exterior applications requiring high-load-resisting anchor performance
- Uncracked concrete installations tested per AC193
- Uncracked masonry installations tested per AC01
- Horizontal installations
- Vertical installations
- Overhead installations
Frequently Asked Questions
- What type of base material is the Strong-Bolt 2 Mechanically Galvanized anchor designed for?
- This anchor is tested and suitable for use in uncracked concrete in accordance with AC193 and in uncracked masonry in accordance with AC01, making it appropriate for a range of structural base materials in exterior settings.
- What drill bit diameter is required for installation?
- A 5/8 in. diameter drill bit is required to prepare the hole for this anchor.
- Why is a mechanically galvanized finish specified for this anchor?
- The mechanically galvanized finish provides corrosion resistance that makes this anchor suitable for exterior applications where exposure to the elements is a concern, unlike standard zinc-electroplated versions intended for interior use.
- Can this anchor be installed in orientations other than vertical?
- Yes. The STB2-MG anchor is suitable for horizontal, vertical, and overhead applications, providing installation flexibility across a variety of structural connection scenarios.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
