Product Features
Product Description

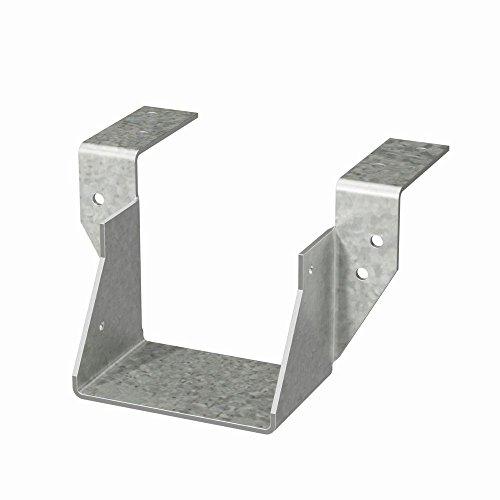

The Simpson Strong-Tie HU44TF HUTF Galvanized Top-Flange Joist Hanger for 4x4 is a heavy-duty hybrid connector engineered to deliver maximum downward load capacity with a minimum number of fasteners. Combining the advantages of both face-mount and top-mount hanger designs, this Simpson Strong-Tie hanger features face-nailing that allows it to be securely attached to the header member, making it an integral component for structural framing applications requiring reliable joist support.
Key Features
- Hybrid design incorporates the advantages of both face-mount and top-mount hangers for versatile installation
- Face-nailing allows the hanger to be securely attached to the member
- The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg.
- HUTF-series hangers are tested, load rated and code compliant
- Made from 12-gauge steel for heavy-duty structural performance
- Galvanized (G90) for extra corrosion resistance
- Seat width: 3-9/16 in.
- Nominal joist size: 4x4
- Rough beam sizes are available by special order
Specifications
- MPN: HU44TF
- Brand: Simpson Strong-Tie
- Member Size: 4x4
- Seat Width: 3-9/16 in.
- W (in.): 3.5625
- H (in.): 3-7/16
- B (in.): 2.5
- TF (in.): 2.5
- Steel Gauge: 12
- Coating/Finish: Zinc Galvanized, G90
- Installation Fasteners (sold separately): Install with (8) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 3 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
- What makes the HU44TF a hybrid hanger?
- The HU44TF is considered a hybrid hanger because it incorporates the advantages of both face-mount and top-mount hanger designs. This allows it to provide maximum downward load capacity while also supporting top-flange installation, giving contractors greater flexibility during framing.
- What fasteners are required to install the HU44TF?
- Installation requires (8) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 3 in. nails in the joist. This fastener schedule is designed to achieve the hanger's rated load performance with a minimum number of fasteners.
- Can the HU44TF be used at an angle?
- Yes. The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg., providing installation flexibility for angled framing applications.
- Is the HU44TF suitable for outdoor or high-moisture environments?
- The HU44TF features a Zinc Galvanized G90 coating that provides extra corrosion resistance, making it well suited for applications where exposure to moisture is a concern. Always verify compatibility with your specific project requirements and any treated lumber being used.
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
