Product Features
Product Description

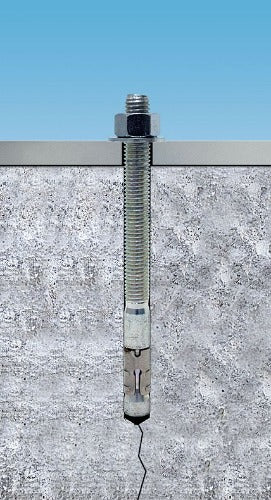

Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor - Mechanically Galvanized, 1/2" x 4-1/4" is a wedge-type expansion anchor engineered for high-load-resisting performance in exterior concrete and masonry applications. Manufactured by Simpson Strong-Tie from carbon steel with a mechanically galvanized finish, this anchor delivers dependable holding strength where corrosion resistance and structural reliability are both required.
Key Features
- Wedge-type expansion anchor designed to resist high loads in demanding exterior applications
- Mechanically galvanized finish on the anchor body provides corrosion resistance for outdoor use
- Features the same dual undercutting embossments on each clip segment as the zinc-electroplated version, ensuring consistent performance
- Suitable for horizontal, vertical, and overhead installations
- Tested in uncracked concrete in accordance with AC193
- Tested in uncracked masonry in accordance with AC01
Specifications
- Model Number: STB2-50414MG
- Size: 1/2 in. x 4-1/4 in.
- Drill Bit Diameter: 1/2 in.
- Thread Length: 2-4/7 in.
- Anchor Body Material: Mechanically Galvanized Carbon Steel
- Nut Material: Carbon Steel ASTM A 563, Grade A
- Washer Material: Carbon Steel ASTM F844
- Clip Material: Carbon Steel ASTM A 568
- Coating/Finish: Mechanically Galvanized
- Packaging: Packs of 25 and Cartons of 100
Approved Applications
- Exterior concrete applications requiring high-load resistance
- Uncracked concrete installations tested per AC193
- Uncracked masonry installations tested per AC01
- Horizontal, vertical, and overhead anchor installations
Frequently Asked Questions
- What size drill bit is required to install the STB2-50414MG anchor?
- A 1/2 in. diameter drill bit is required for installation of this wedge anchor.
- Is this anchor suitable for outdoor or exterior use?
- Yes. The mechanically galvanized finish on the anchor body makes it appropriate for exterior applications where corrosion resistance is needed.
- What base materials has this anchor been tested and approved for?
- The STB2-MG anchor has been tested in uncracked concrete in accordance with AC193 and in uncracked masonry in accordance with AC01.
- Can this anchor be installed in orientations other than vertical?
- Yes. The Strong-Bolt 2 wedge anchor is suitable for horizontal, vertical, and overhead applications.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
