Product Description

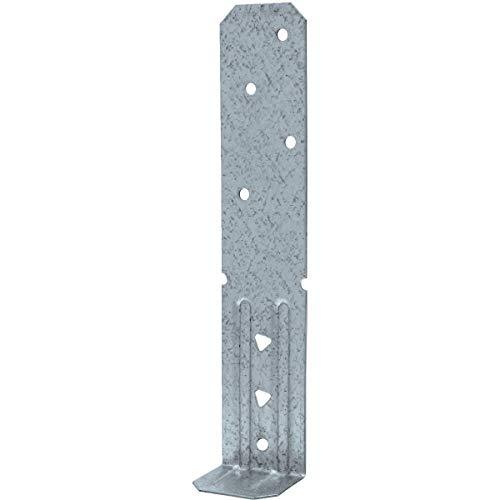

The Simpson Strong-Tie SSPZ ZMAX Single-Stud-Plate Connector is an 18-gauge steel prebent strap engineered to connect a single stud to either the top or bottom plate, helping create a continuous load path for uplift resistance in wall framing applications. Built with Simpson Strong-Tie's ZMAX galvanization, this connector delivers enhanced corrosion resistance that makes it well-suited for exterior environments and treated-wood applications.
Key Features
- Can be used to make a connection to either the top or bottom plate
- Embossment in the angle reinforces the plate, providing added strength at the bend
- Sill plate installation: fill all round holes
- Made from 18-gauge steel for reliable structural performance
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Width: 1-3/8 in.
- Height: 6-11/16 in.
- Depth: 1-1/8 in.
Specifications
- Model Number: SSPZ
- Brand: Simpson Strong-Tie
- Gauge: 18
- Width: 1-3/8 in.
- Height: 6-11/16 in.
- Depth: 1-1/8 in.
- Coating/Finish: ZMAX
- Installation Fasteners (sold separately): Install with 10d common nails or 10d x 1-1/2 in. nails
- Country of Origin: United States
Approved Applications
- Connecting a single stud to the top plate in wood-framed wall construction
- Connecting a single stud to the bottom or sill plate in wood-framed wall construction
- Exterior framing and treated-wood applications where enhanced corrosion resistance is required
- Light repairs and heavy-duty framing projects requiring stud-to-plate connections
Frequently Asked Questions
- Can the SSPZ be used with both the top plate and the bottom sill plate?
- Yes. The SSPZ can be used to make a connection to either the top or bottom plate, making it a versatile solution for various wall framing configurations.
- What fasteners should be used to install the SSPZ?
- Install with 10d common nails or 10d x 1-1/2 in. nails. For sill plate installations, fill all round holes to achieve the full rated connection.
- Why does the SSPZ feature ZMAX galvanization?
- ZMAX galvanization offers extra corrosion resistance, making the SSPZ suitable for exterior applications and installations involving treated wood, where standard galvanization may not provide adequate protection.
- What does the embossment on the SSPZ do?
- The embossment in the angle reinforces the plate, adding structural strength at the bend to help maintain the integrity of the stud-to-plate connection under load.
