Product Description

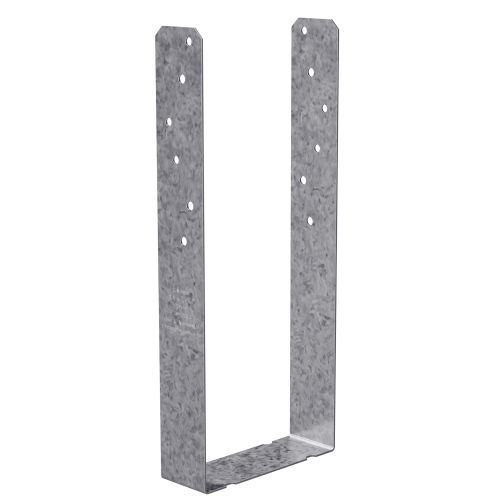

The Simpson SPH6R Heavy Duty Rough Stud Plate Tie by Simpson is an 18-gauge, zinc galvanized heavy U-shaped strap engineered as a stud-to-plate connection to resist roof uplift. Its horizontal portion bears directly against the wood wall top plates or sill plates while two vertical legs are nailed to the edges of a wood stud, making it a cost-effective and reliable solution when installed before wall placement.
Key Features
- Load rated for dependable structural performance
- Designed to resist wind and seismic forces
- Does not require top or bottom track attachment
- Heavy U-shaped strap profile for a secure stud-to-plate connection
- Horizontal bearing portion seats firmly against wood wall top plates or sill plates
- Two vertical legs nail directly to the edges of a wood stud
- Cost-effective option when properly installed prior to wall placement
- 18-gauge steel construction with G90 zinc galvanized coating for corrosion resistance
Specifications
- Model No.: SPH6R
- Gauge: 18
- Width (in.): 6 1/16
- Length (in.): 9
- Coating/Material: Zinc Galvanized, G90
- Fasteners Required: (10-12) 0.148 in. x 1-1/2 in. nails
- Country of Origin: United States
Frequently Asked Questions
- What is the primary purpose of the Simpson SPH6R?
- The SPH6R is designed as a stud-to-plate connection to resist roof uplift. Its heavy U-shaped strap profile allows it to connect wood studs to wall top plates or sill plates, providing resistance against wind and seismic forces.
- What gauge steel is used in the SPH6R, and what coating does it have?
- The SPH6R is constructed from 18-gauge steel and features a Zinc Galvanized, G90 coating, which provides corrosion resistance for long-term durability in structural applications.
- What fasteners are required to install the SPH6R?
- Installation of the SPH6R requires (10-12) 0.148 in. x 1-1/2 in. nails. The vertical legs of the strap are nailed to the edges of a wood stud while the horizontal portion bears against the plate.
- Does the SPH6R require attachment to a top or bottom track?
- No, the SPH6R does not require top or bottom track attachment. It is designed for installation before the placement of the wall, making it a straightforward and cost-effective stud-to-plate connection option.
