Product Description

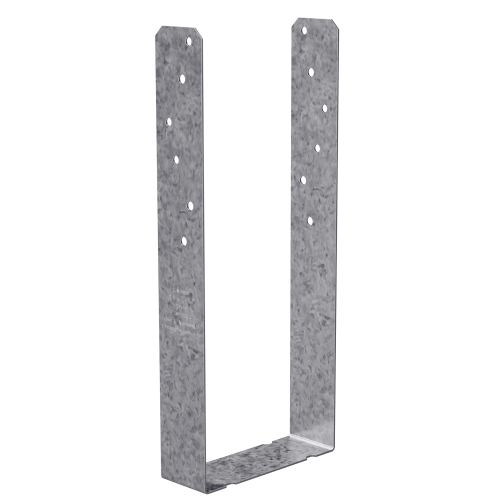

The Simpson SPH6 Heavy-Duty Stud Plate Tie by Simpson Strong-Tie is a heavy U-shaped strap engineered as a stud-to-plate connection to resist roof uplift. This tie features a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. Fabricated from 18-gauge steel with a G90 galvanized finish, the SPH6 is a cost-effective option when properly installed before the placement of the wall.
Key Features
- Load rated
- Designed to resist wind and seismic forces
- Does not require top or bottom track attachment
- Nominal stud size: 2x
- Nominal plate width: 6x
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: SPH6
- Width: 5-9/16 in.
- Length: 9-1/4 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Member Size: 2x stud; 6x plate
- Fasteners Required: (10-12) 0.148 in. x 1-1/2 in. nails
- Country of Origin: United States
Frequently Asked Questions
- What is the primary purpose of the Simpson SPH6 Stud Plate Tie?
- The SPH6 is designed as a stud-to-plate connection to resist roof uplift. Its U-shaped form allows the horizontal portion to bear against wood wall top plates or sill plates while the two vertical legs are nailed to the edges of a wood stud.
- What type of forces is the SPH6 rated to resist?
- The SPH6 is load rated and specifically designed to resist wind and seismic forces, making it suitable for applications where structural uplift resistance is required.
- What fasteners are needed to install the SPH6?
- Installation requires 10 to 12 nails measuring 0.148 in. x 1-1/2 in. The tie does not require top or bottom track attachment, simplifying the installation process.
- What material and corrosion protection does the SPH6 offer?
- The SPH6 is made from 18-gauge steel and features a Zinc Galvanized, G90 coating, which provides extra corrosion resistance for demanding job site environments.
