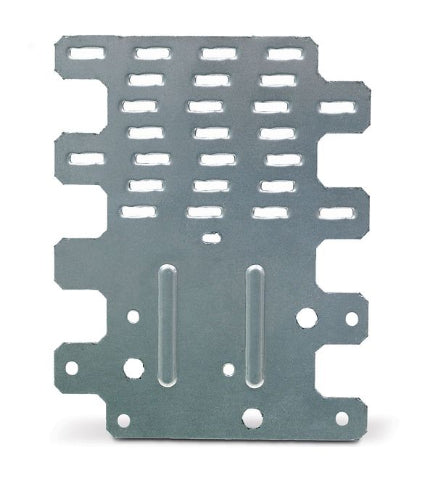

Simpson Strong-Tie RBCP Roof Boundary Clip with Teeth is a Simpson Strong-Tie engineered connector designed to aid installation and transfer shear loads between the roof diaphragm and wall. Featuring integral prongs (teeth) on one side for pre-attachment to blocking at the truss plant, the RBCP streamlines the construction process while delivering reliable structural performance across a wide range of roof pitches and wall types.

Key Features

• Designed to aid installation and transfer shear loads between the roof diaphragm and wall
• Locator tabs make proper placement of the clip easy and accurate
• Compatible with both wood and masonry walls for versatile application
• Handles roof pitches from 0/12 to 12/12, covering flat to steep roof configurations
• Prongs (teeth) on one side allow pre-attachment to blocking at the truss plant, saving on-site labor
• Field bendable to desired angle - one time only - for precise fit
• Constructed from 20-gauge steel with a galvanized finish for corrosion resistance
• Made in the United States

Specifications

• Model Number: RBCP
• Material: 20 Gauge steel
• Finish: Galvanized
• Country of Origin: United States

Approved Applications

• Transferring shear loads between roof diaphragm and wall assemblies
• Installations on wood walls
• Installations on masonry walls
• Roof pitches ranging from 0/12 (flat) to 12/12 (steep)
• Pre-attachment to blocking at the truss plant prior to field installation

Frequently Asked Questions

What is the difference between the RBC and the RBCP?

The RBCP is the version of the RBC roof boundary clip that includes prongs (teeth) on one side, specifically designed for pre-attachment of the part to a block at the truss plant before it arrives on the job site. The standard RBC does not include these prongs.

What fasteners should be used to install the RBCP?

The RBCP should be installed with 10d x 1-1/2 in. nails or Titen screws, depending on the type of connection being made.

Can the RBCP be field bent to match a specific roof pitch?

Yes. The RBCP can be field bent to the desired angle to accommodate roof pitches from 0/12 to 12/12. However, this bending should only be performed one time - it is not designed to be bent back and forth repeatedly.

Should the RBCP be hammered onto the blocking during installation?

No. The RBCP should be pressed onto the blocking rather than hammered. Pressing ensures the prongs seat correctly without damaging the clip or the blocking material.
