Product Description

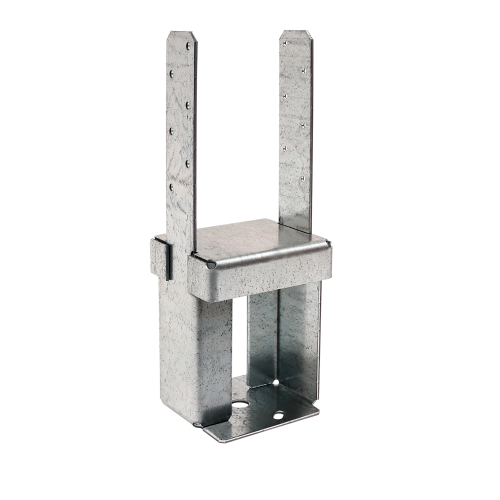

The Simpson Strong-Tie PPB44-6Z PPBZ Porch Post Base for 4x4 Post and 6 in. Slab by Simpson Strong-Tie delivers a simplified, one-time installation designed to support permanent porch framing throughout all stages of construction. Built from 12-gauge steel with ZMAX galvanization for superior corrosion resistance, this post base eliminates the need for temporary vertical support and streamlines subcontractor scheduling - making it an efficient solution for exterior porch and overhang framing projects where treated wood and concrete slabs are involved.
Key Features
- Stiffened embedded side stirrups provide temporary vertical download support without being embedded into concrete
- 1 in. standoff reduces the potential for decay at post or column ends
- Pre-pour installation eliminates temporary support
- No disruption in scheduling
- Eliminates additional move-ins by trades and certain inspection call backs
- Sized to fit a nominal 4x4 post and 6 in. slab thickness
- Made from 12-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- MPN: PPB44-6Z
- Brand: Simpson Strong-Tie
- Member Size: 4x4
- Slab Depth: 6 in.
- Width 1: 3-5/8 in.
- Width 2: 3-3/8 in.
- Height: 5-3/4 in.
- Gauge: 12
- Coating: ZMAX
- Finish: ZMAX
- Country of Origin: United States
Install With
- Install with (12) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Model: 10DHDG) and (2) 1/4 in. x 1-1/4 in. Titen Turbo concrete screws (Model: TNT25114H)
Frequently Asked Questions
- What size post is the PPB44-6Z designed to fit?
- The PPB44-6Z is sized to fit a nominal 4x4 post and is designed for use with a 6 in. slab thickness.
- How does the PPBZ porch post base eliminate the need for temporary vertical support?
- The stiffened embedded side stirrups provide temporary vertical download support without being embedded into concrete. The base is fastened to the footing with two Titen Turbo masonry screws during porch roof framing, allowing the concrete contractor to pour and complete the slab later - without any temporary support structures in the way and without requiring the framer to return to the jobsite after the slab has hardened.
- Why is ZMAX galvanization important for this product?
- ZMAX galvanization provides extra corrosion resistance, making the PPB44-6Z well-suited for exterior applications and use with treated wood - environments where standard galvanization may not offer sufficient long-term protection.
- What fasteners are recommended for installing the PPB44-6Z?
- Installation is recommended with (12) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Model: 10DHDG) and (2) 1/4 in. x 1-1/4 in. Titen Turbo concrete screws (Model: TNT25114H).
Note: Product dimensions may differ from picture.
