Product Description

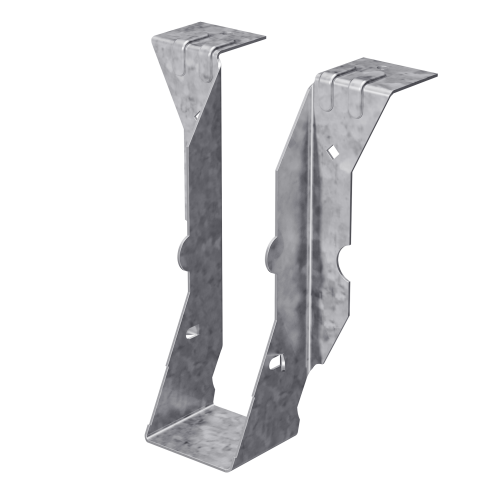

Simpson Strong-Tie PF24 PF 18-Gauge Galvanized Post Frame Hanger for 2x4 is a top-flange joist hanger engineered by Simpson Strong-Tie for common light-frame applications. Featuring a patented double-shear nailing design, this economical connector distributes the load through two points on each joist, delivering greater strength with fewer nails. Made from 18-gauge steel with a G90 zinc galvanized finish, the PF24 is built for reliable performance in 2x4 framing connections.
Key Features
- Self-jigging design for automatic vertical alignment provides quick installation
- Diamond holes to temporarily fasten the connector for easy alignment and attachment
- Patented double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails
- Top-flange design suited for common light-frame applications
- Made from 18-gauge steel for consistent structural performance
- Galvanized (G90) for corrosion resistance
- Seat width: 1-9/16 inches
- Cannot be modified
- Made in the United States
Specifications
- Model No.: PF24
- Nominal Joist Size: 2x4
- Gauge: 18
- Seat Width: 1-9/16 in.
- Height: 3-3/8 in.
- B: 1-1/2 in.
- TF: 1-1/16 in.
- Coating/Finish: Zinc Galvanized, G90
- Install With: (4) 0.148-in. x 3-in. nails
- Country of Origin: United States
Frequently Asked Questions
- What size member is the Simpson PF24 designed to support?
- The PF24 is designed for use with nominal 2x4 members, featuring a seat width of 1-9/16 inches to accommodate that member size.
- What fasteners are required to install the PF24?
- Installation requires (4) 0.148-in. x 3-in. nails. The nails must be driven at an angle through the purlin into the header. Top nails should be combined to achieve table loads.
- How does the double-shear nailing design benefit this hanger?
- The patented double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails compared to single-shear designs.
- What is the purpose of the diamond holes on the PF24?
- The diamond holes allow you to temporarily fasten the connector during installation, making it easier to align and attach the hanger before driving the final fasteners. Combined with the self-jigging design, this helps ensure automatic vertical alignment for quick and accurate installation.
Note: Product dimensions may differ from picture. Please see item description for specifications.
