Product Description

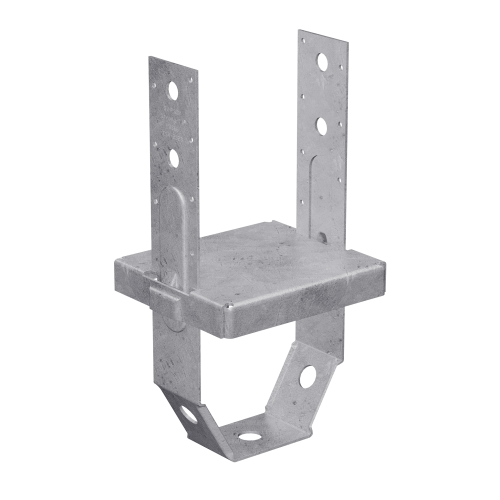

The Simpson Strong-Tie PBS66HDG 6x6 Hot-Dip Galvanized Standoff Post Base is a heavy-duty 12-gauge post base engineered to provide a secure, code-compliant connection between a 6x6 post or column and concrete. Featuring a 1" standoff design and a hot-dip galvanized coating for superior corrosion resistance, this post base is ideal for decks, patio covers, and other top-supported structures where long-term durability and moisture protection are essential.
Key Features
- Provides a 1" standoff between post and concrete that meets code requirements
- Elevates the wood post 1" above the concrete surface to avoid contact with standing water, helping to prevent rot at the post end
- Embeds in wet concrete before the concrete has cured and is designed to install flush with the concrete surface
- Embossment in the vertical straps provides increased strength
- Optional fastening with either nails or bolts
- Hot-dip galvanized coating for lasting corrosion resistance
- 12-gauge steel construction for a robust, reliable connection
Specifications
- Model Number: PBS66HDG
- Nominal Post Size: 6x6
- Gauge: 12
- Coating / Material: Hot-Dip Galvanized
- Required Fasteners: (14) 0.162" x 3-1/2" Nails or (2) 1/2" Bolts
- Standoff Height: 1"
- Minimum Side Cover: 2" to obtain full load
Approved Applications
- Decks
- Patio covers
- Other top-supported structures
Frequently Asked Questions
- Why does this post base have a 1" standoff?
- The 1" standoff elevates the wood post above the concrete surface to avoid contact with standing water. This helps prevent rot at the post end and meets applicable code requirements for standoff post bases.
- How is the PBS66HDG installed?

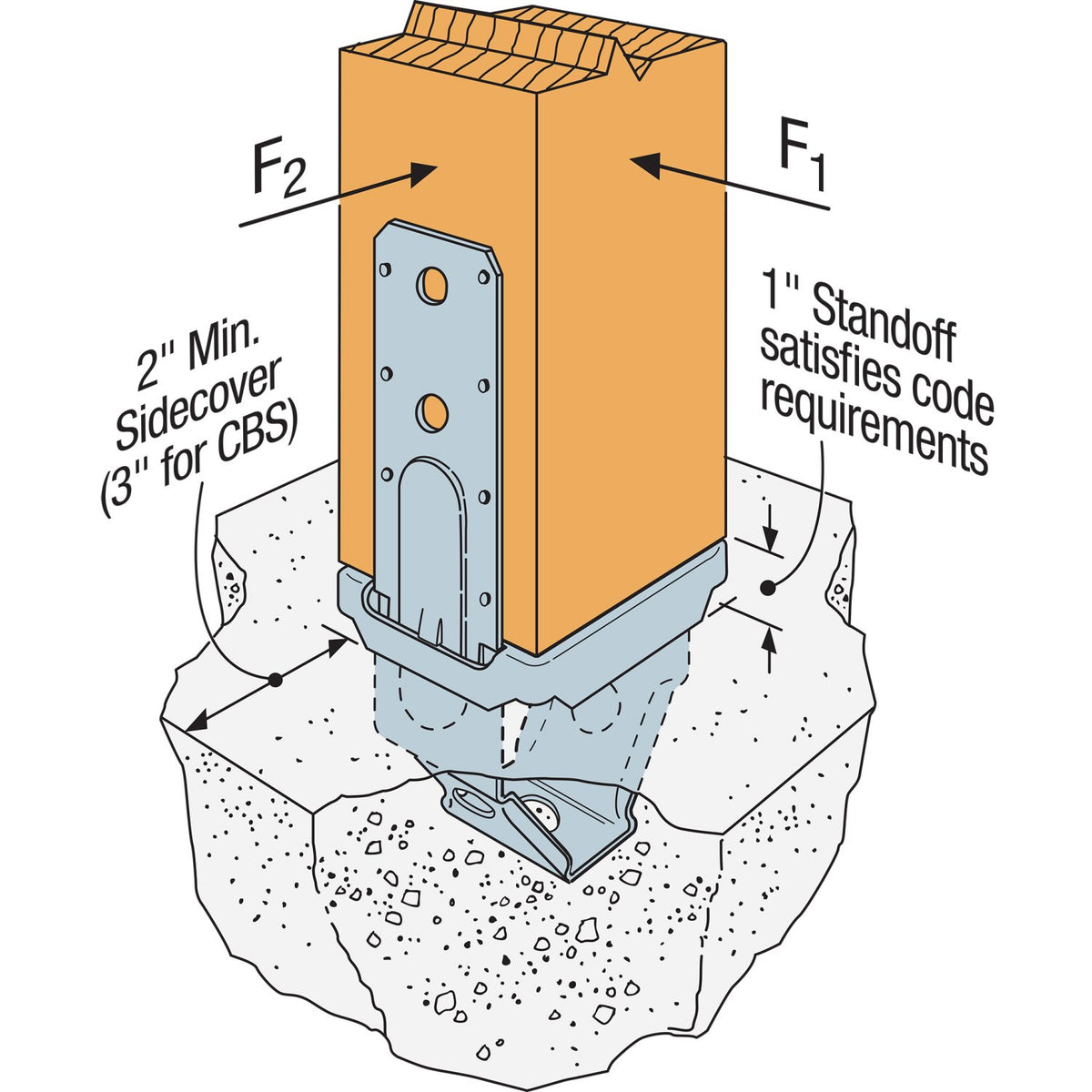

- The post base is embedded into wet concrete before it has cured, ensuring complete consolidation up to the bottom of the 1" standoff base plate. It is designed to install flush with the concrete surface. A 2" minimum side cover is required to obtain the full load capacity.
- What fasteners are required for this post base?
- Installation requires either (14) 0.162" x 3-1/2" nails or (2) 1/2" bolts. The design allows for optional fastening with either nails or bolts depending on your project requirements.
- Can the PBS66HDG be used for fences or unbraced carports?
- No. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations, such as fences or unbraced carports. This product is intended for top-supported structures only.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
