Product Features
Product Description

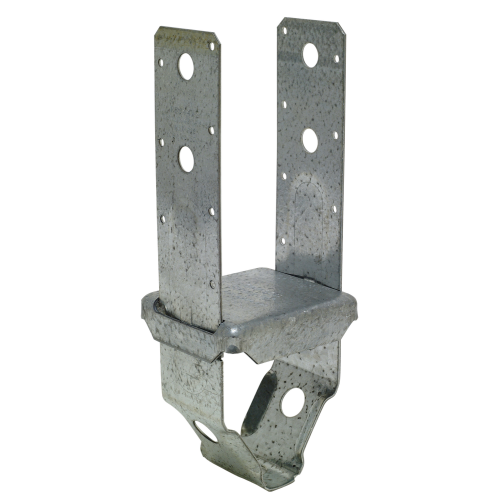

Simpson PBST44Z PBST ZMAX Galvanized Standoff Post Base for 4x4 is a cast-in-place post base from Simpson Strong-Tie engineered to deliver high-performance wood-to-concrete connections for decks, patio covers, porches, and other outdoor structures. Featuring a protective ZMAX galvanized coating and innovative S-shaped stiffening tabs, this post base provides superior corrosion resistance and enhanced load-bearing capacity for dependable, long-lasting outdoor installations.
Key Features
- Provides a 1 in. standoff between post and concrete that meets code requirements
- S-shaped stiffening tabs enhance load-bearing performance and provide increased download capacity
- Compatible with nails, bolts or Strong-Drive SD Connector screws for installation flexibility
- Designed for flush installation in wet concrete with a shallow embedment depth
- Embossed vertical straps increase overall strength and stability
- Base 12 ga. steel; strap 14 ga. steel
- ZMAX galvanized coating offers superior corrosion resistance for outdoor applications
Specifications
- Model Number: PBST44Z
- Member Size: 4x4
- Coating/Finish: ZMAX
- Gauge: Base 12 ga.; strap 14 ga.
- W1: 3 9/16 in.
- W2: 3 1/2 in.
- H: 6 1/4 in.
- D: 3 1/2 in.
- Install With: Install with (14) 0.162 in. x 3-1/2 in. nails, (14) #10 x 1-1/2 in. Strong-Drive SD Connector screws (SD10112) or (2) 1/2 in. diameter bolts
- Country of Origin: United States
Approved Applications
- Decks
- Patio covers
- Porches
- Other outdoor wood-to-concrete structural connections
Frequently Asked Questions
- What size post is the PBST44Z designed to fit?
- The PBST44Z is specifically designed for use with 4x4 nominal lumber posts, making it ideal for standard deck, porch, and patio cover post applications.
- Why is the 1 in. standoff between the post and concrete important?
- The 1 in. standoff helps protect the base of the wood post from direct contact with moisture that can accumulate on concrete surfaces, reducing the risk of moisture-related rot. This standoff distance also meets applicable code requirements for post base installations.
- What fastener options are compatible with the PBST44Z?
- The PBST44Z offers installation flexibility and is compatible with (14) 0.162 in. x 3-1/2 in. nails, (14) #10 x 1-1/2 in. Strong-Drive SD Connector screws (SD10112), or (2) 1/2 in. diameter bolts.
- What makes the ZMAX coating suitable for outdoor use?
- The ZMAX galvanized coating provides a thicker zinc layer than standard G90 galvanizing, offering superior corrosion resistance for post bases exposed to weather and outdoor conditions - making it well-suited for decks, patio covers, porches, and similar exterior structures.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
