Product Description

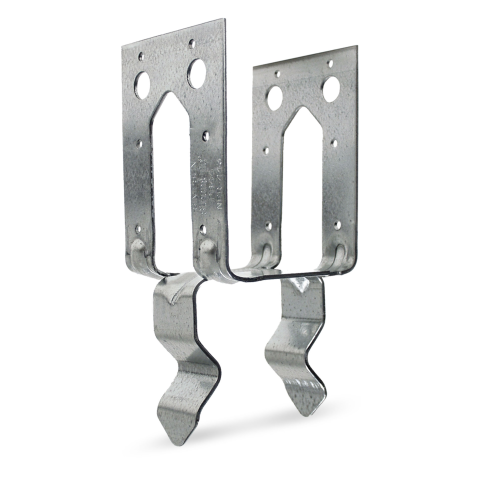

Simpson PB66R 6x6 Rough Cut Galvanized Post Base by Simpson Strong-Tie is a heavy-duty structural connector engineered to provide a secure, code-worthy connection between a 6x6 rough cut post or column and a concrete foundation for decks, patio covers, and other top-supported structures. Featuring a Zinc Galvanized G90 coating, this post base delivers reliable corrosion resistance suited for outdoor and treated-wood applications.
Key Features
- Designed for 6x6 rough cut post or column connections to concrete foundations
- Zinc Galvanized G90 coating provides corrosion resistance for outdoor and treated-wood environments
- 12-gauge steel construction for dependable structural strength
- Compatible with 0.162" x 3-1/2" nails or 1/2" bolts for flexible installation options

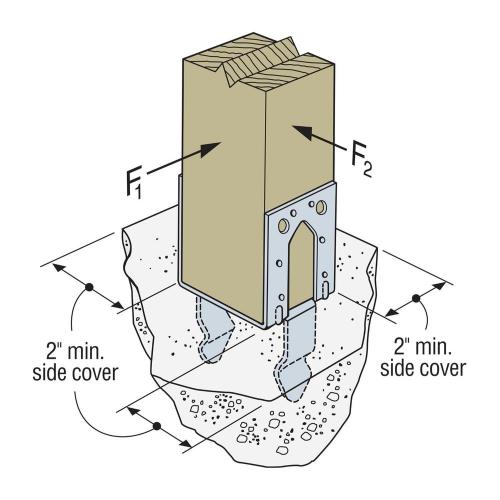

- Requires a 2" minimum sidecover to achieve full rated load capacity
- Ideal for decks, patio covers, and other top-supported structural applications
- Made in the United States
Specifications
- Model Number: PB66R
- Width: 6 in.
- Length: 5-1/4 in.
- Gauge: 12
- Coating/Material: Zinc Galvanized, G90
- Fastener Options: 0.162" x 3-1/2" nails or 1/2" bolts
- Country of Origin: United States
Approved Applications
- Deck post-to-foundation connections
- Patio cover post or column bases
- Other top-supported structural installations
Frequently Asked Questions
- What post size is the PB66R designed to fit?
- The PB66R is designed specifically for 6x6 rough cut posts or columns, with a width of 6 inches and a length of 5-1/4 inches to accommodate rough cut lumber dimensions.
- What fasteners are compatible with the PB66R post base?
- The PB66R can be installed using either 0.162" x 3-1/2" nails or 1/2" bolts, giving installers flexibility based on project requirements and local code specifications.
- Is the PB66R suitable for use with pressure-treated wood outdoors?
- Yes. The PB66R features a Zinc Galvanized G90 coating, which provides corrosion resistance appropriate for outdoor applications and use with treated wood.
- Can the PB66R be used for fences or unbraced carports?
- No. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations such as fences or unbraced carports. The PB66R is intended for top-supported structures only, such as decks and patio covers.
Note: Product dimensions and/or screw or bolt holes may differ from picture. A 2" minimum sidecover is required to obtain the full load.
