Product Description

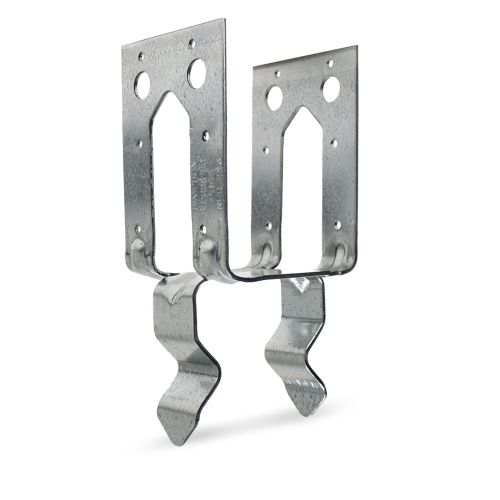

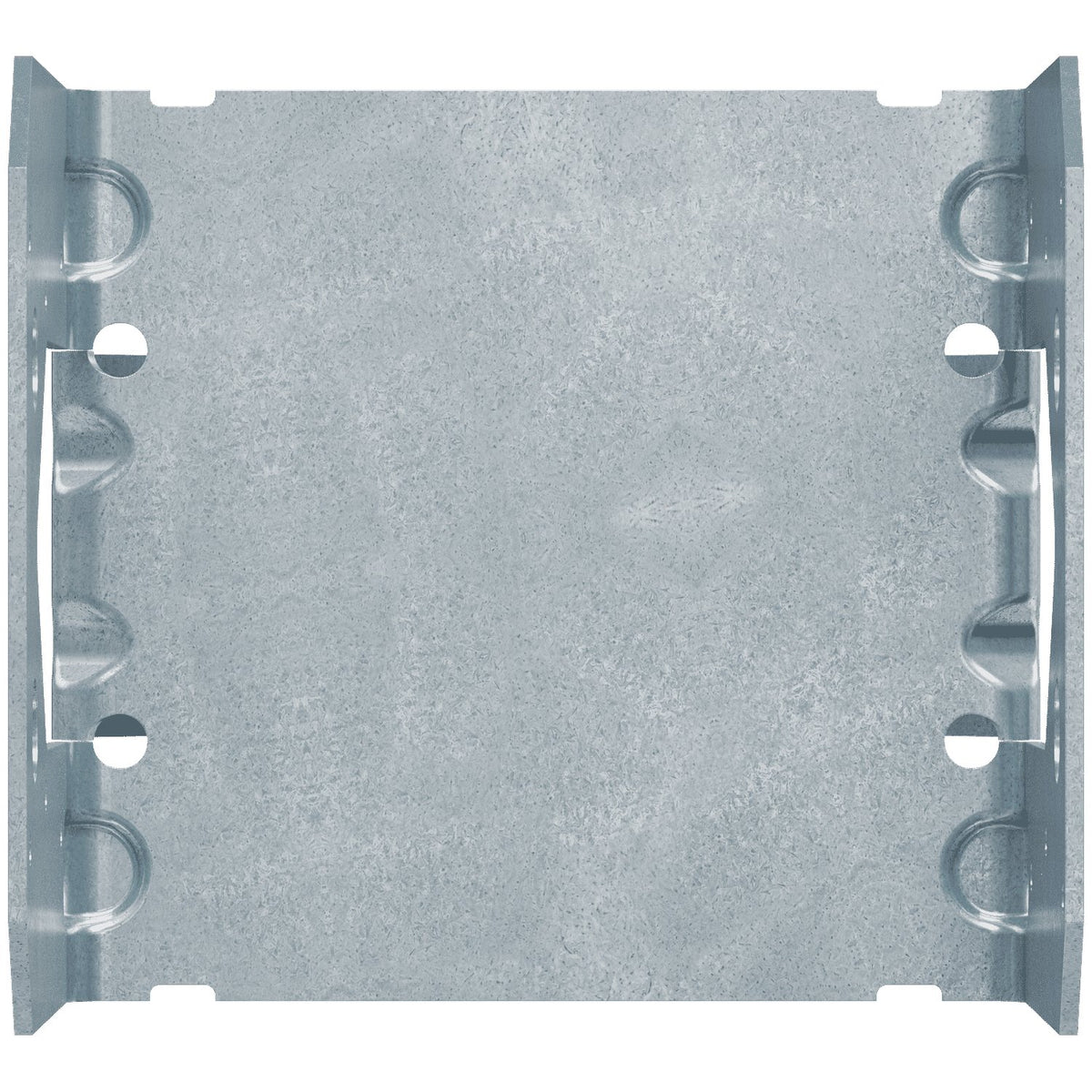

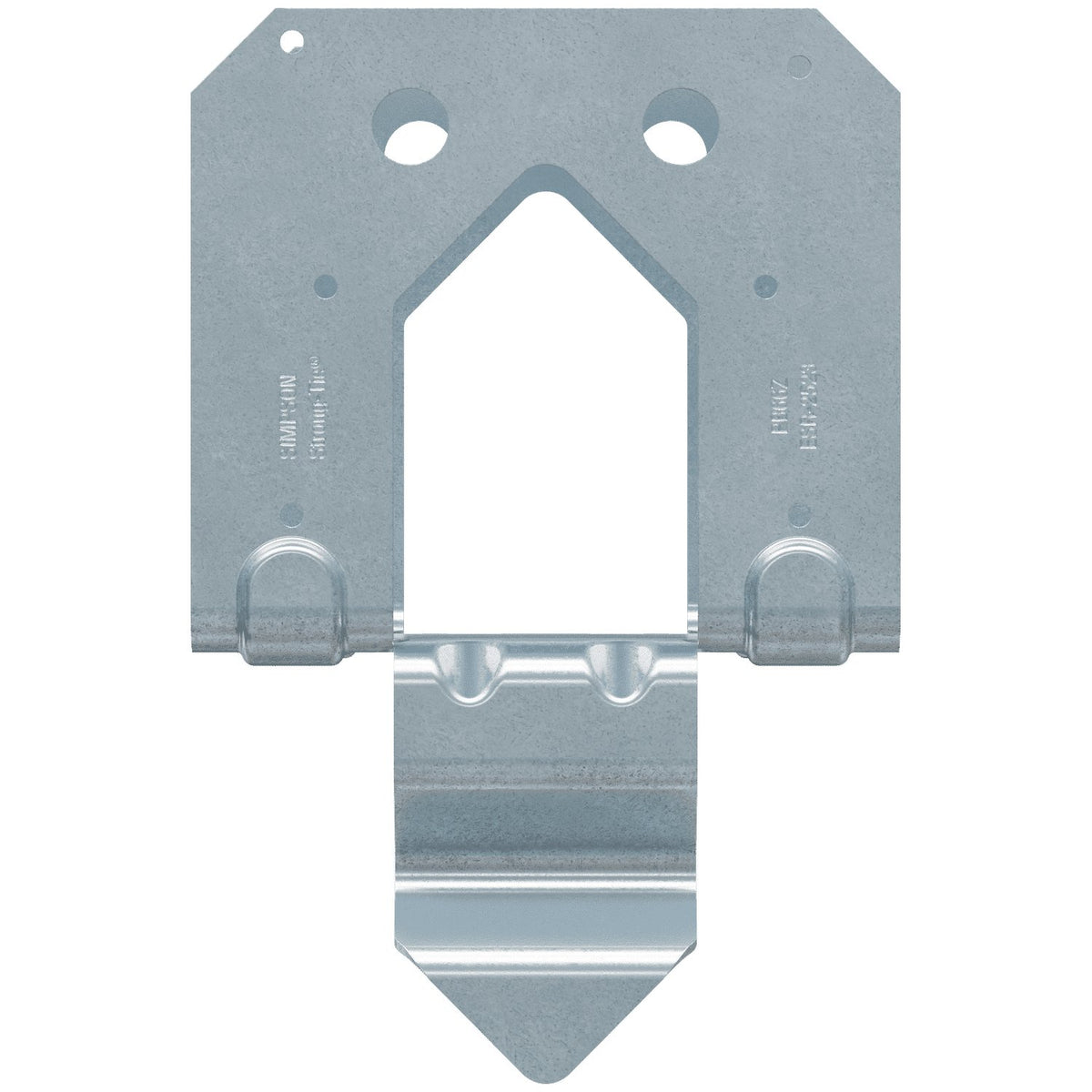

Simpson PB66HDG 6x6 Hot-Dip Galvanized Post Base by Simpson Strong-Tie is a heavy-duty post base connector engineered to provide a secure connection between a post or column and a supporting surface for decks, patio covers, and other top-supported structures. Constructed from 12-gauge steel with a hot-dip galvanized coating, this post base delivers enhanced corrosion resistance, making it well suited for outdoor environments and applications involving treated wood.
Key Features
- Hot-dip galvanized coating provides extra corrosion resistance for outdoor and treated-wood applications
- 12-gauge steel construction for reliable strength and durability
- Designed to connect posts or columns for decks, patio covers, and other top-supported structures
- Accommodates installation with either 0.162" x 3-1/2" nails or 1/2" bolts

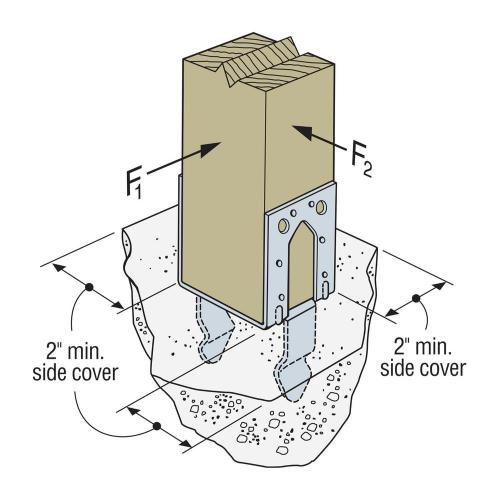

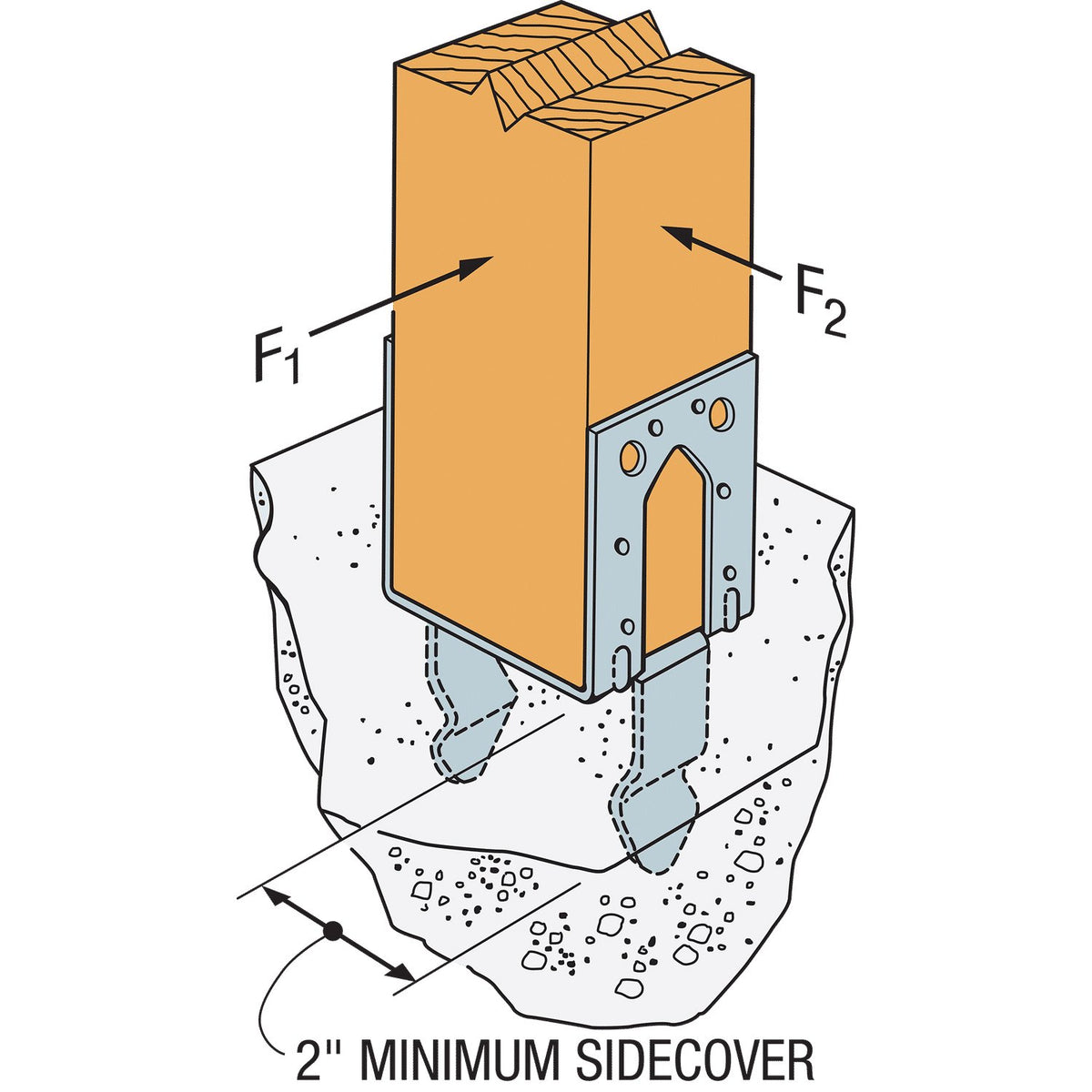

- Requires a 2" minimum sidecover to obtain full load capacity
- Made in the United States
Specifications
- Model Number: PB66HDG
- Width: 5-1/2 in.
- Length: 5-1/4 in.
- Gauge: 12
- Coating/Material: Hot-Dip Galvanized
- Country of Origin: United States
Approved Applications
- Deck post-to-foundation connections
- Patio cover column bases
- Top-supported structural post installations
Frequently Asked Questions
- What types of fasteners can be used to install the PB66HDG?
- The PB66HDG post base can be installed using either 0.162" x 3-1/2" nails or 1/2" bolts, giving installers flexibility depending on the application and structural requirements.
- Is this post base suitable for outdoor or treated-wood applications?
- Yes. The hot-dip galvanized coating on the PB66HDG provides extra corrosion resistance, making it well suited for outdoor use and applications involving treated wood where moisture and chemical exposure are a concern.
- Can the PB66HDG be used for fences or unbraced carports?
- No. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations such as fences or unbraced carports. This connector is designed for top-supported structures only.
- Is there a minimum sidecover requirement for this post base?
- Yes. A 2" minimum sidecover is required in order to obtain the full rated load capacity of the PB66HDG post base.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
