Product Description
The Simpson Strong-Tie PB46 PB Galvanized Non-Standoff Post Base is a heavy-duty connector designed to secure 4x6 posts or columns to concrete foundations for decks, patio covers, and other top-supported structures. Engineered by Simpson Strong-Tie from 12-gauge steel with a G90 zinc galvanized finish, this post base embeds flush into wet concrete to deliver a clean, strong, and corrosion-resistant connection built to last in demanding outdoor environments.
Key Features

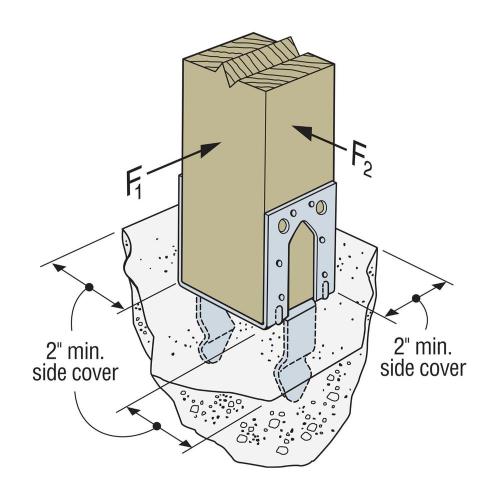

- Embeds in wet concrete after pour and is made to install flush with the concrete surface
- Embossment in the seat of the base gives increased strength
- Stress relief holes under the base resist tearing during loading
- Nominal post size: 4x6
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: PB46
- Member Size: 4x6
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Approved Applications
- Deck post-to-concrete connections
- Patio cover post or column bases
- Other top-supported structural post installations
Frequently Asked Questions
- What size post is the PB46 designed for?
- The PB46 is designed for a nominal 4x6 post or column size.
- How is the PB46 installed in concrete?
- The PB46 embeds in wet concrete after the pour and is made to install flush with the concrete surface. It is installed with 16d common nails to secure the post to the base.
- What type of corrosion protection does the PB46 have?
- The PB46 features a G90 zinc galvanized coating, providing extra corrosion resistance that makes it well suited for outdoor and treated-wood applications.
- Is the PB46 suitable for use in fences or unbraced carports?
- No. Post bases in the PB series do not provide adequate resistance to prevent members from rotating about the base and are therefore not recommended for non-top-supported installations such as fences or unbraced carports. They are intended for decks, patio covers, and other top-supported structures.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
