Product Description

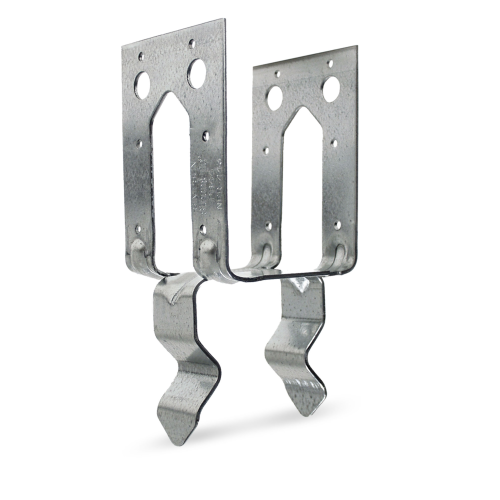

Simpson PB44R 4x4 Rough Cut Galvanized Post Base by Simpson Strong-Tie is a structural connector designed to provide a secure connection between a post or column and a concrete or structural base for decks, patio covers, and other top-supported structures. Finished with Zinc Galvanized G90 coating, this post base delivers reliable corrosion resistance suited for outdoor and treated-wood applications.
Key Features
- Designed for 4x4 rough cut post dimensions, ensuring a proper fit for standard lumber
- Zinc Galvanized G90 coating provides corrosion resistance for outdoor and treated-wood environments
- 12-gauge steel construction for durable, long-lasting performance
- Creates a reliable post-to-base connection for decks, patio covers, and other top-supported structures
- Installs using 0.162" x 3-1/2" nails for straightforward on-site installation

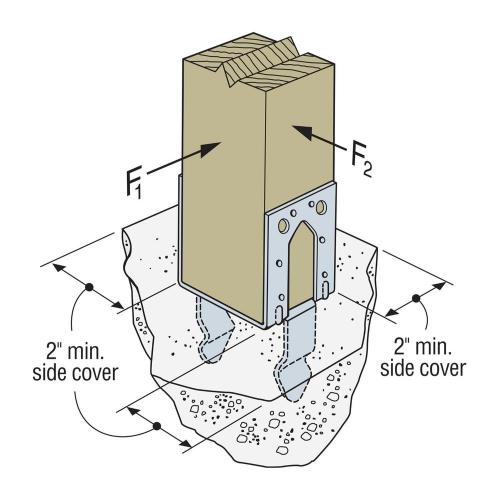

- Requires a 2" minimum side cover to achieve full rated load capacity
- Made in the United States
Specifications
- Model Number: PB44R
- Width: 4 in.
- Length: 3-1/4 in.
- Gauge: 12
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Deck post-to-footing connections
- Patio cover post bases
- Top-supported structural columns
- Outdoor structures using pressure-treated lumber
Frequently Asked Questions
- What post size is the PB44R designed for?
- The PB44R is specifically designed to fit a 4x4 rough cut post, providing a proper structural connection between the post and its base.
- Can the PB44R be used for fences or unbraced carports?
- No. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations such as fences or unbraced carports.
- What fasteners are required to install the PB44R?
- The PB44R installs using 0.162" x 3-1/2" nails. A 2" minimum side cover is also required to obtain the full rated load.
- What type of galvanization does the PB44R have, and is it suitable for treated wood?
- The PB44R features a Zinc Galvanized G90 coating, which provides corrosion resistance well-suited for outdoor applications and use with pressure-treated wood.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
