Product Description

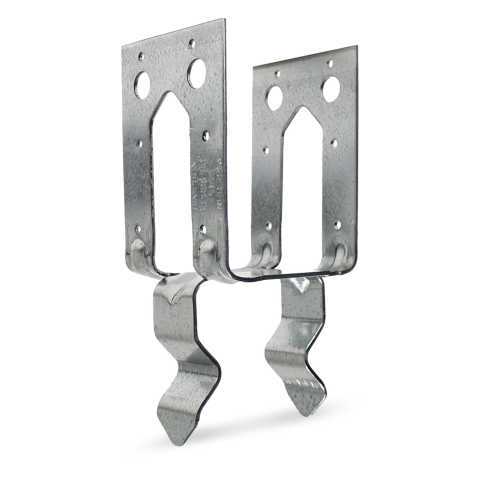

The Simpson PB44HDG Post Base is a hot-dip galvanized structural connector engineered to provide a secure, reliable connection between a post or column and a supporting surface for decks, patio covers, and other top-supported structures. Built to a 12-gauge steel standard and finished with hot-dip galvanization for enhanced corrosion resistance, this post base is well-suited for outdoor and treated-wood applications where moisture exposure is a concern.
Key Features
- Hot-Dip Galvanized Finish: Provides extra corrosion resistance, making it ideal for outdoor environments and installations involving treated lumber.
- 12-Gauge Steel Construction: Delivers robust structural integrity for top-supported load applications.

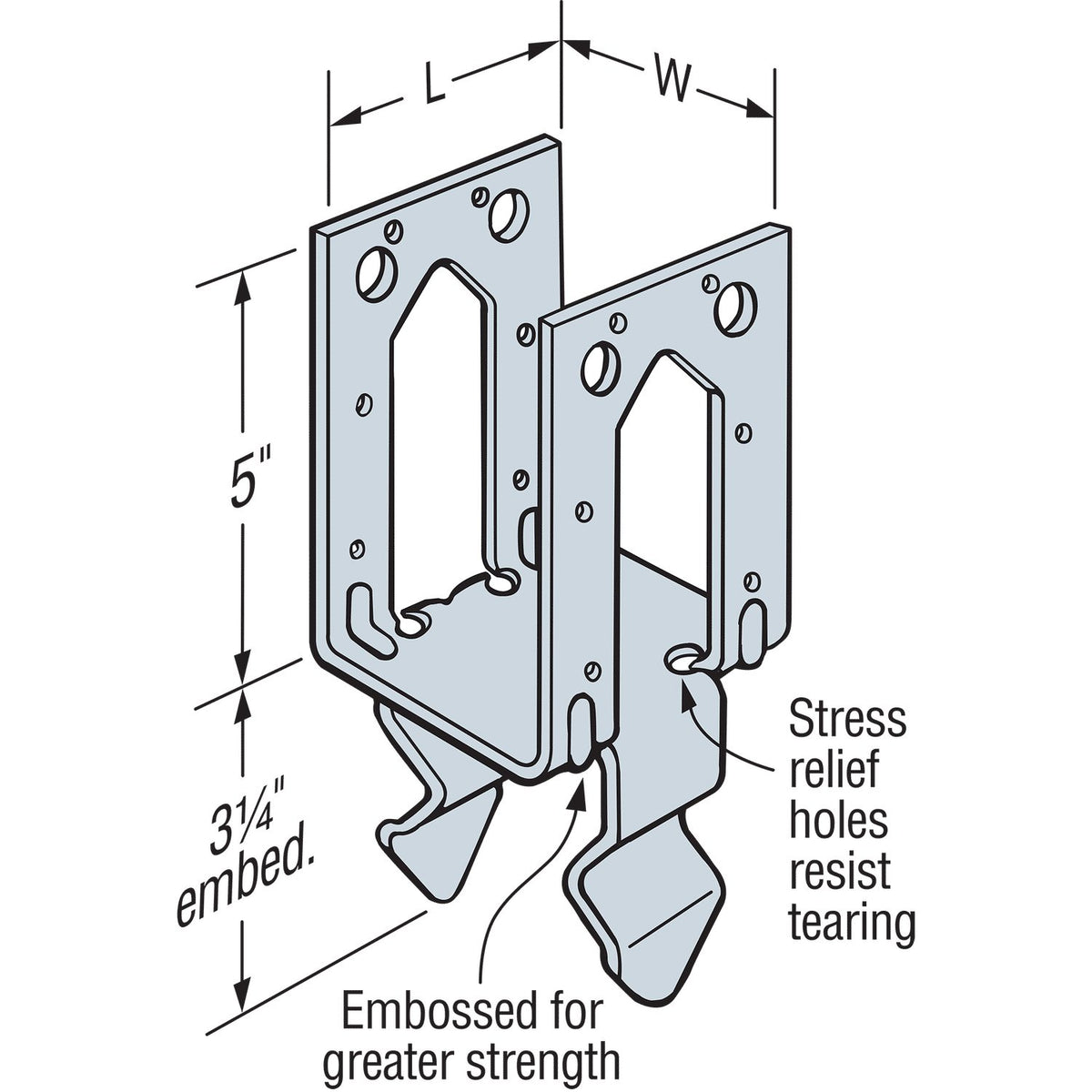

- Compact Profile: At 3-9/16 in. wide and 3-1/4 in. long, the PB44HDG is sized specifically for 4x4 posts and columns.
- Nail Installation: Designed for installation with 0.162" x 3-1/2" nails for a straightforward, field-ready process.
- Minimum Sidecover Requirement: A 2-inch minimum sidecover is required to achieve the full rated load capacity.
- Made in the United States: Manufactured domestically to consistent quality standards.
Specifications
- Model Number: PB44HDG
- Width: 3-9/16 in.
- Length: 3-1/4 in.
- Gauge: 12
- Coating / Material: Hot-Dip Galvanized
- Country of Origin: United States
Approved Applications
- Decks and deck framing systems
- Patio covers and pergolas
- Other top-supported structural applications requiring a post-to-base connection

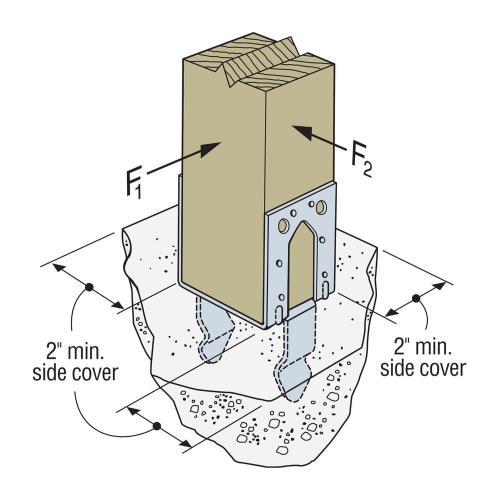

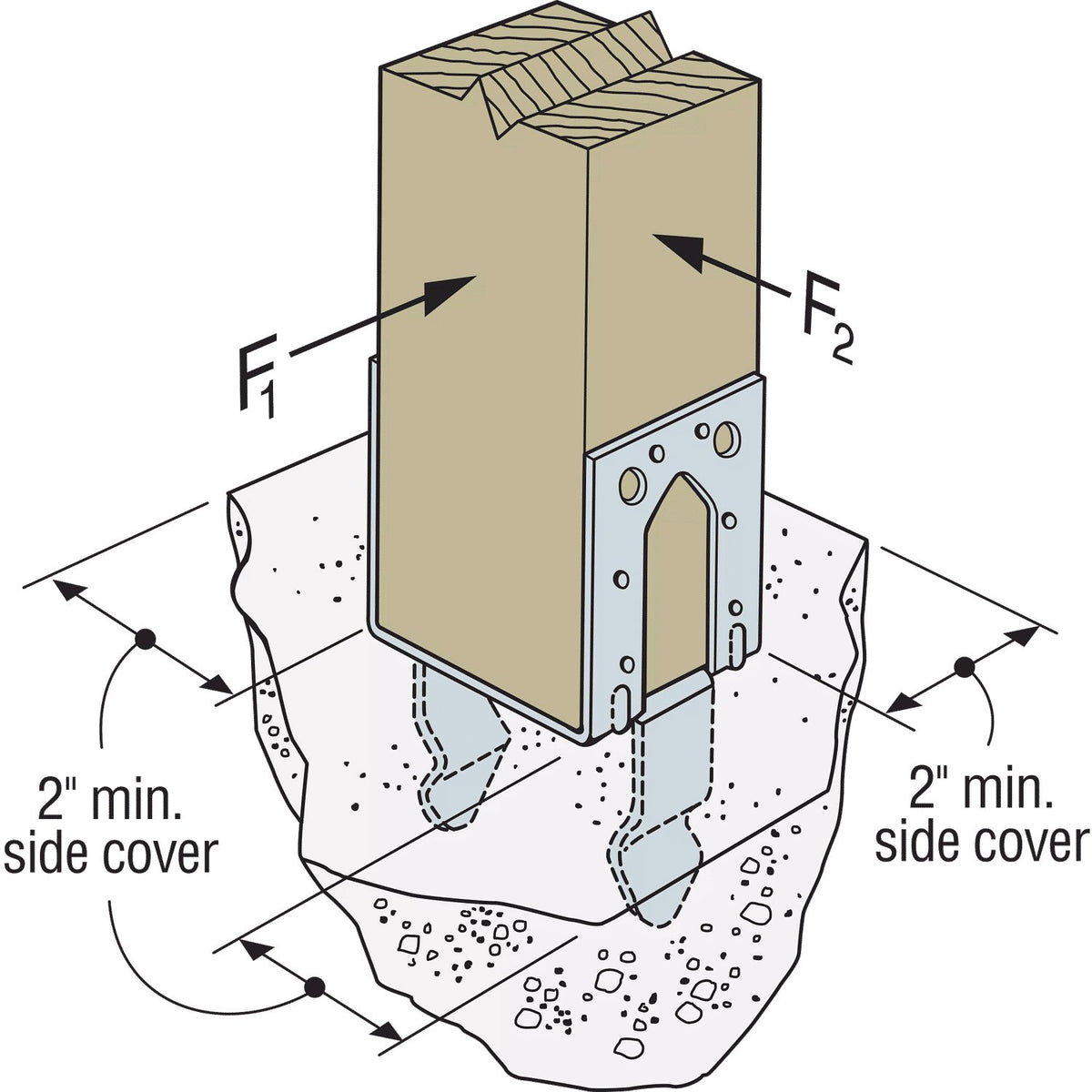

Important Installation Note: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations such as fences or unbraced carports. Installation with 0.162" x 3-1/2" nails is required. A 2-inch minimum sidecover is required to obtain the full load.
Disclaimer: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
- What post size is the PB44HDG designed to fit?
- The PB44HDG is sized specifically for 4x4 posts and columns. Its dimensions - 3-9/16 in. wide and 3-1/4 in. long - are engineered to provide a proper fit for standard 4x4 lumber used in decks, patio covers, and similar top-supported structures.
- Is the PB44HDG suitable for use with pressure-treated lumber outdoors?
- Yes. The hot-dip galvanized finish provides enhanced corrosion resistance, making the PB44HDG well-suited for outdoor environments and installations involving treated lumber where moisture exposure is a concern.
- What fasteners are required to install the PB44HDG?
- The PB44HDG is designed for installation with 0.162" x 3-1/2" nails, making it straightforward to install in the field without specialty tools or hardware beyond what is specified.
- Are there any clearance requirements to achieve the full rated load capacity?
- Yes. A minimum sidecover of 2 inches is required to achieve the full rated load capacity of the PB44HDG. Installations that do not meet this minimum sidecover requirement may not perform to the connector's rated specifications.
