Product Description

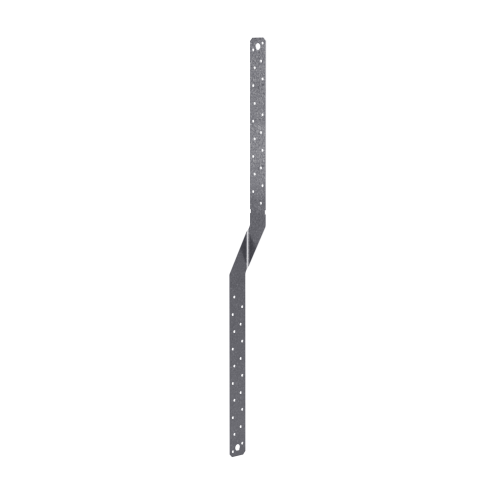

The Simpson MTS20-REV 20" Medium Twist Strap - Reverse Bend is a Simpson Strong-Tie engineered tension connector designed to provide a reliable tension connection between two structural members. With its reverse bend configuration, this economical twist strap resists moderate uplift loads at the rafter or heel of a truss, offering contractors and builders a versatile, code-compliant solution without requiring the strap to be wrapped over the truss to achieve the allowable load.
Key Features
- Available with the bend reversed - specify "-REV" after the model number, such as MTSXX-REV
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Features a small bend section to reduce interference at the transition points between two members
- Resists moderate uplift loads at the rafter or heel of a truss
- Versatile with many lengths offered to fit the specific application
- Zinc Galvanized G90 coating provides corrosion resistance
- Manufactured in the United States
Specifications
- Model No.: MTS20-REV (Reverse Bend)
- Thickness (mil): 54
- Gauge: 16
- Length (in.): 20
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Tension connection between two structural members
- Uplift load resistance at the rafter
- Uplift load resistance at the heel of a truss
- Applications where the reverse bend configuration reduces interference at member transition points
Frequently Asked Questions
- What is the difference between the MTS20-REV and the standard MTS20?
- The MTS20-REV features a reverse bend configuration, meaning the bend direction is reversed compared to the standard model. This allows the strap to be used in installations where the standard bend orientation would create interference, while still achieving the allowable load without needing to wrap the strap over the truss.
- Does the MTS20-REV need to be wrapped over the truss to achieve the allowable load?
- No. One of the key benefits of the MTS twist strap design is that straps do not need to be wrapped over the truss to achieve the allowable load, simplifying installation.
- What fasteners should be used to install the MTS20-REV?
- Install with 10d common nails, 10d x 1-1/2 in. nails, or #9 x 1-1/2 in. Strong-Drive SD screws.
- What is the gauge and coating of the MTS20-REV?
- The MTS20-REV is a 16-gauge strap with a 54 mil thickness and features a Zinc Galvanized G90 coating for corrosion resistance.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
