Product Description

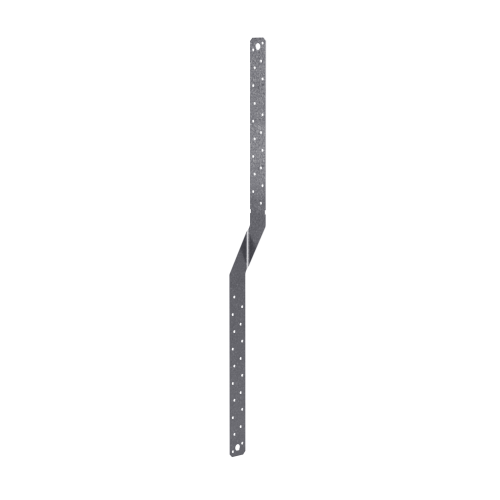

The Simpson MTS16-REV 16" Medium Twist Strap - Reverse Bend is a zinc galvanized, G90-coated structural connector engineered by Simpson Strong-Tie to provide a reliable tension connection between two framing members. Designed to resist moderate uplift loads at the rafter or heel of a truss, this 16-gauge, 16-inch strap features a reverse bend configuration that reduces interference at transition points between members - making it a smart, economical solution for roof and truss applications.
Key Features
- Available with the bend reversed for greater installation flexibility
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Small bend section reduces interference at the transition points between two members
- Provides a tension connection between two framing members
- Resists moderate uplift loads at the rafter or heel of a truss
- Economical design suited for a wide range of framing applications
- Zinc galvanized G90 coating for corrosion resistance
- Versatile - many lengths offered to fit the specific application
Specifications
- Model Number: MTS16-REV
- Length: 16 in.
- Gauge: 16
- Thickness: 54 mil
- Coating/Material: Zinc Galvanized, G90
- Bend: Reverse Bend
- Country of Origin: United States
Approved Applications
- Tension connection between two framing members
- Uplift resistance at the rafter
- Uplift resistance at the heel of a truss
- Applications where the bend must be reversed to reduce interference at member transition points
Frequently Asked Questions
- What fasteners are required to install the MTS16-REV?
- The MTS16-REV should be installed with 10d common nails, 10d x 1-1/2 in. nails, or #9 x 1-1/2 in. Strong-Drive SD screws.
- What does the "-REV" designation mean on this strap?
- The "-REV" designation indicates a reverse bend configuration. Specifying "-REV" after the model number, such as MTSXX-REV, means the bend direction is reversed compared to the standard version, which helps reduce interference at transition points between framing members.
- Does the MTS16-REV need to be wrapped over the truss to achieve the allowable load?
- No. One of the key advantages of the MTS series is that the straps do not need to be wrapped over the truss to achieve the allowable load, simplifying installation.
- What type of coating does the MTS16-REV have, and why does it matter?
- The MTS16-REV features a Zinc Galvanized, G90 coating. This coating provides corrosion resistance, making the strap suitable for use in framing environments where moisture exposure is a consideration.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
