Product Description

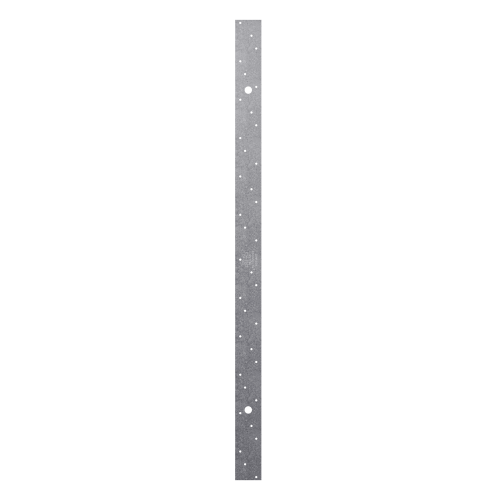

The Simpson MSTI72 MSTI 72 in. 12-Gauge Galvanized Medium Strap Tie by Simpson Strong-Tie is a high-capacity steel tension strap engineered to resist tension loads across a wide range of structural connections. Designed for use on wood I-joists as well as vertical applications on composite wood products where applicable, this load-rated, precut strap delivers optimal performance with a staggered nail pattern that minimizes the risk of wood splitting during installation.
Key Features
- High-capacity steel tension strap for use on wood I-joists as well as for vertical use on composite wood products where applicable
- Designed with a 3 in. nail spacing to minimize the chance of splitting the wood
- Staggered nail pattern reduces wood splitting
- Width: 2-1/16 in.
- Length: 72 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Special sizes can be
Specifications
- MPN: MSTI72
- Brand: Simpson Strong-Tie
- Length: 72 in.
- Width: 2-1/16 in.
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Country of Origin: United States
Approved Applications
- Wood I-joist tension strap connections
- Vertical use on composite wood products where applicable
- Designed to resist wind and seismic forces
- Suitable for diaphragm decking and wood chord open-web trusses where pneumatic nailing is necessary
- Light repairs and heavy-duty structural projects
- Wide or narrow face lumber connections
Options
- Special sizes can be made to order. Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners are recommended for installing the MSTI72?
- Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws for proper performance and load-rated connections.
- Why does the MSTI72 feature a staggered nail pattern?
- The staggered nail pattern is specifically designed to reduce the risk of wood splitting during installation. Additionally, the 3 in. nail spacing further minimizes the chance of splitting the wood, making it suitable for both I-joists and composite wood products.
- What type of corrosion protection does the MSTI72 have?
- The MSTI72 is coated with a Zinc Galvanized G90 finish, which provides extra corrosion resistance for long-lasting performance in a variety of environments.
- Can the MSTI72 be used on both the wide and narrow face of lumber?
- Yes. Simpson Strong-Tie straps and plates, including this medium strap tie, can be used on the wide or narrow face of lumber for a versatile range of connection applications, from light repairs to heavy-duty structural projects.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
