Product Description

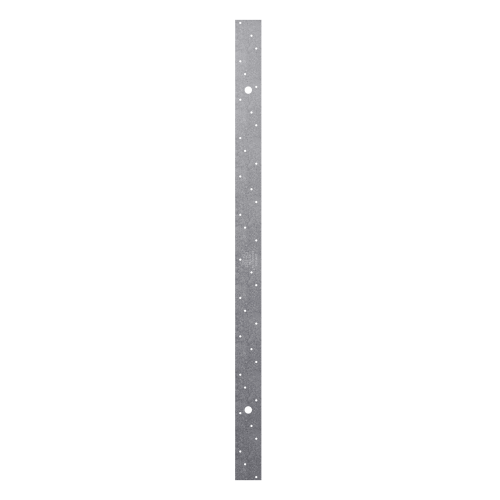

The Simpson Strong-Tie MSTI60 Medium Strap Tie is a high-capacity, load-rated steel tension strap engineered to resist tension loads across a wide range of structural connections. Built from 12-gauge steel with a G90 zinc galvanized finish for superior corrosion resistance, this 60-inch strap is designed for use on wood I-joists as well as vertical applications on composite wood products where applicable. Its staggered nail pattern and 3-inch nail spacing work together to minimize the risk of splitting the wood during installation, making it a reliable choice for both light repairs and heavy-duty structural projects.
Key Features
- High-capacity steel tension strap for use on wood I-joists as well as for vertical use on composite wood products where applicable
- Designed with a 3 in. nail spacing to minimize the chance of splitting the wood
- Staggered nail pattern reduces wood splitting
- Width: 2-1/16 in.
- Length: 60 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Special sizes can be
Specifications
- MPN: MSTI60
- Brand: Simpson Strong-Tie
- Length: 60 in.
- Width: 2-1/16 in.
- Gauge: 12
- Coating/Finish: Zinc Galvanized, G90
- Installation Fasteners (sold separately): Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Country of Origin: United States
Approved Applications
- Tension load resistance in structural framing connections
- Use on wood I-joists for high-capacity strap tie applications
- Vertical use on composite wood products where applicable
- Designed to resist wind and seismic forces
- Suitable for diaphragm decking and wood chord open-web trusses where pneumatic nailing is necessary
Options
- Special sizes can be made to order. Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners should be used to install the MSTI60?
- The MSTI60 should be installed with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws for optimal performance.
- Why does the MSTI60 use a staggered nail pattern?
- The staggered nail pattern is specifically designed to reduce wood splitting during installation. Combined with the 3 in. nail spacing, this design minimizes the chance of splitting the wood as fasteners are driven in.
- What materials is the MSTI60 compatible with?
- The MSTI60 is a high-capacity steel tension strap suitable for use on wood I-joists as well as for vertical use on composite wood products where applicable.
- What corrosion protection does the MSTI60 have?
- The MSTI60 features a Zinc Galvanized G90 coating, which provides extra corrosion resistance, making it well-suited for applications where exposure to moisture or the elements is a concern.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
