Product Description

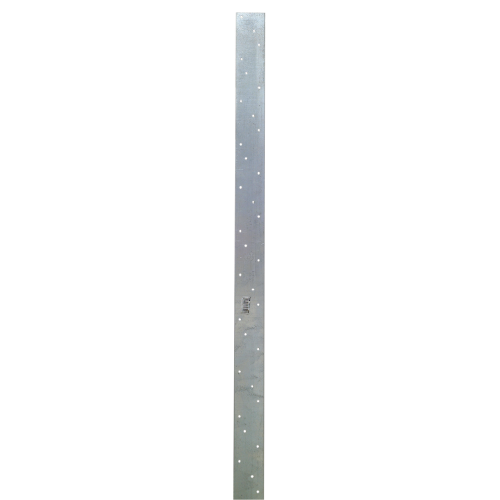

Simpson MSTI48 MSTI 48 in. 12-Gauge Galvanized Medium Strap Tie by Simpson Strong-Tie is a high-capacity steel tension strap engineered to resist tension loads across a wide range of structural connections. Constructed from 12-gauge steel with a G90 zinc galvanized finish for enhanced corrosion resistance, this 48-inch precut strap is designed for use on wood I-joists as well as for vertical applications on composite wood products where applicable. Its staggered nail pattern and 3-inch nail spacing are specifically engineered to minimize the risk of splitting the wood during installation, making it a dependable choice for both light repairs and heavy-duty structural projects.
Key Features
- High-capacity steel tension strap for use on wood I-joists as well as for vertical use on composite wood products where applicable
- Designed with a 3 in. nail spacing to minimize the chance of splitting the wood
- Staggered nail pattern reduces wood splitting
- Width: 2-1/16 in.
- Length: 48 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Designed to resist wind and seismic forces
- Suitable for diaphragm decking and wood chord open-web trusses where pneumatic nailing is necessary
- Special sizes can be Contact us for Configurable Options and Special orders
Specifications
- Model Number: MSTI48
- Length: 48 in.
- Width: 2-1/16 in.
- Gauge: 12
- Thickness: 97 mil
- Coating/Finish: Zinc Galvanized, G90
- Install With: 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Country of Origin: United States
Approved Applications
- Wood I-joist connections requiring high-capacity steel tension strapping
- Vertical use on composite wood products where applicable
- Diaphragm decking where pneumatic nailing is necessary
- Wood chord open-web trusses where pneumatic nailing is necessary
- Applications designed to resist wind and seismic forces
- Light repairs and heavy-duty structural connection projects
- Wide or narrow face of lumber applications
Frequently Asked Questions
- What fasteners should be used to install the MSTI48?
- The MSTI48 should be installed with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws for optimal performance.
- Why does the MSTI48 feature a staggered nail pattern?
- The staggered nail pattern is specifically designed to reduce the risk of wood splitting during installation. Combined with the 3 in. nail spacing, it minimizes the chance of splitting the wood when fastening the strap.
- What type of corrosion protection does the MSTI48 have?
- The MSTI48 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and helps extend the service life of the strap in demanding environments.
- Can the MSTI48 be used on composite wood products?
- Yes. In addition to its use on wood I-joists, the MSTI48 is designed for vertical use on composite wood products where applicable, making it a versatile solution for a wide range of structural connections.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
