Product Description

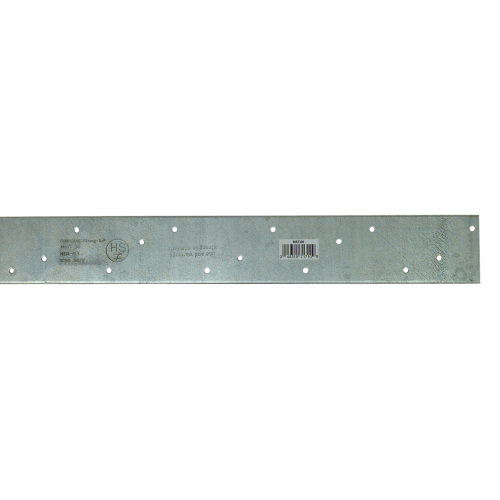

The Simpson Strong-Tie MSTI36 Medium Strap Tie is a high-capacity steel tension strap engineered to resist tension loads across a variety of structural connections. Built from 12-gauge steel with a G90 galvanized coating for superior corrosion resistance, this 36-inch strap is ideal for use on wood I-joists as well as for vertical applications on composite wood products where applicable. Its staggered nail pattern and 3-inch nail spacing work together to minimize the risk of wood splitting, making it a reliable choice for both light repairs and heavy-duty structural projects.
Key Features
- High-capacity steel tension strap for use on wood I-joists as well as for vertical use on composite wood products where applicable
- Designed with a 3 in. nail spacing to minimize the chance of splitting the wood
- Staggered nail pattern reduces wood splitting
- Width: 2-1/16 in.
- Length: 36 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Designed to resist wind and seismic forces
- Suitable for diaphragm decking and wood chord open-web trusses where pneumatic nailing is necessary
- Can be used on the wide or narrow face of lumber
Specifications
- Model Number: MSTI36
- Gauge: 12
- Width: 2-1/16 in.
- Length: 36 in.
- Thickness: 97 mil
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Install With: 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
Approved Applications
- Wood I-joist tension strap connections
- Vertical use on composite wood products where applicable
- Diaphragm decking applications where pneumatic nailing is necessary
- Wood chord open-web truss connections where pneumatic nailing is necessary
- Connections requiring resistance to wind and seismic forces
- Wide or narrow face lumber connections for light repairs or heavy-duty projects
Options
- Special sizes can be made to order. Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners are recommended for installing the MSTI36?
- The MSTI36 is designed to be installed with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws for optimal performance.
- How does the MSTI36 help prevent wood splitting during installation?
- The MSTI36 features a staggered nail pattern combined with a 3 in. nail spacing, both of which work together to minimize the chance of splitting the wood during fastening.
- What type of corrosion protection does the MSTI36 have?
- The MSTI36 is coated with a G90 zinc galvanized finish, which provides an extra level of corrosion resistance to help extend the life of the connector in demanding environments.
- Can the MSTI36 be used on both faces of lumber?
- Yes, Simpson Strong-Tie straps, including the MSTI36, can be used on the wide or narrow face of lumber, and many are designed to be used back-to-back on a piece of lumber without fastener interference.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
