Product Description

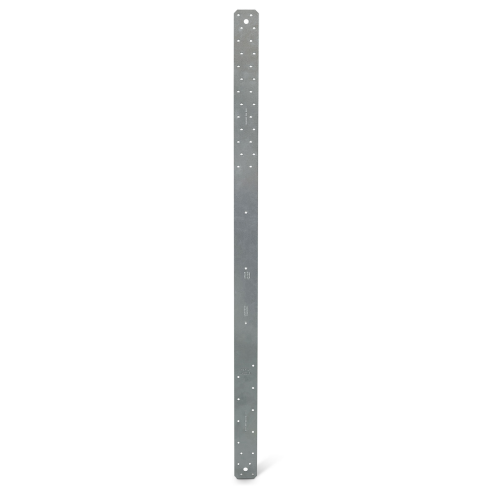

The Simpson MSTCM60 MSTCM 59-1/2 in. 16-Gauge Galvanized Medium Strap Tie for Masonry is a heavy-duty wood-to-masonry connection solution engineered by Simpson Strong-Tie to resist tension loads in uplift applications involving concrete or grout-filled concrete masonry units (GFCMU). At nearly five feet in length, this load-rated, precut strap delivers high-capacity performance with a staggered nail pattern that helps minimize wood splitting, making it a reliable choice for floor-to-floor clear span and structural framing connections.
Key Features
- MSTC series has countersunk nail slots for a lower nailing profile
- Attaches to grouted concrete block and wood framing
- Minimum end and edge distance for Titen screws is 1-1/2 in.
- Length: 59-1/2 in.
- Width: 3 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Designed to resist wind and seismic forces
- Load-rated and precut for quick installation and optimal performance
- Staggered nail pattern helps minimize wood splitting
Specifications
- Model Number: MSTCM60
- Length: 59-1/2 in.
- Width: 3 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Wood-to-masonry uplift applications using concrete or grout-filled concrete masonry units (GFCMU)
- Attaches wood framing to concrete or grout-filled concrete masonry units
- Floor-to-floor clear span applications
- Connections requiring resistance to wind and seismic forces
Frequently Asked Questions
- What type of fasteners are required to install the MSTCM60?
- Install with 16d sinkers and (a) 1-1/4 in. x 2 in. Titen 2 screws for GFCMU or (b) 1-1/4 in. x 1-3/4 in. Titen 2 screws for Concrete.
- What is the minimum end and edge distance required for Titen screws?
- The minimum end and edge distance for Titen screws is 1-1/2 in.
- What corrosion protection does the MSTCM60 offer?
- The MSTCM60 features a G90 zinc galvanized coating, which provides extra corrosion resistance suitable for demanding installation environments.
- What is the purpose of the countersunk nail slots on the MSTCM60?
- The countersunk nail slots on the MSTC series are designed to create a lower nailing profile, allowing for a cleaner and more flush installation against framing and masonry surfaces.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
