Product Description

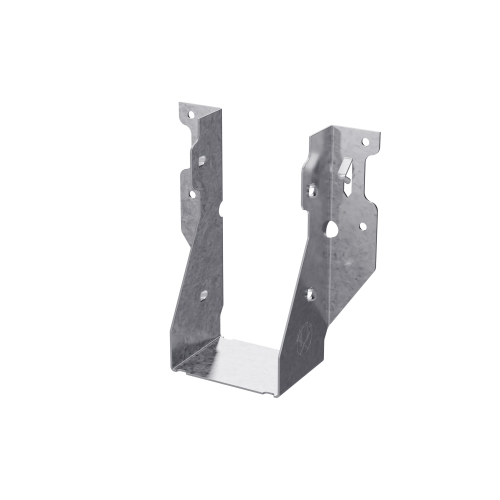

Simpson LUS36SS LUS Stainless-Steel Face-Mount Joist Hanger for 3x6 is a Simpson Strong-Tie engineered connector designed to provide reliable support underneath joists, rafters, or beams for a strong, secure connection. Built from 18-gauge stainless steel, this face-mount hanger delivers exceptional corrosion resistance for exterior and treated-wood applications while featuring a double-shear nailing design that distributes load through two points on each joist nail for greater strength with fewer fasteners.
Key Features
- Works for a wide range of applications
- Double-shear nailing design provides greater strength with fewer nails
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- Angled joist nailing easier in tight spaces
- LUS-series hangers are tested, load rated and code compliant
- Nominal joist size: 3x6, 3x8
- Seat width: 2-9/16 in.
- Made from 18-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
- Manufactured in the United States
Specifications
- MPN: LUS36SS
- Member Size: 3x6 and 3x8
- Seat Width: 2-9/16 in.
- Height: 5-1/4 in.
- B Dimension: 2 in.
- Gauge: 18
- Material: Stainless Steel
- Finish: Stainless Steel
- Country of Origin: United States
- Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D)
Frequently Asked Questions
- Why is stainless steel important for this joist hanger?
- Stainless steel offers extra corrosion resistance, making the LUS36SS well suited for exterior and treated-wood applications where standard steel connectors may be prone to corrosion over time.
- What is the benefit of the double-shear nailing design?
- The double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.
- What fasteners must be used with this stainless-steel hanger?
- Stainless-steel connectors require stainless-steel fasteners. Install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D).
- What lumber sizes is the LUS36SS compatible with?
- The LUS36SS is compatible with nominal joist sizes of 3x6 and 3x8 lumber, making it versatile for common framing applications.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
