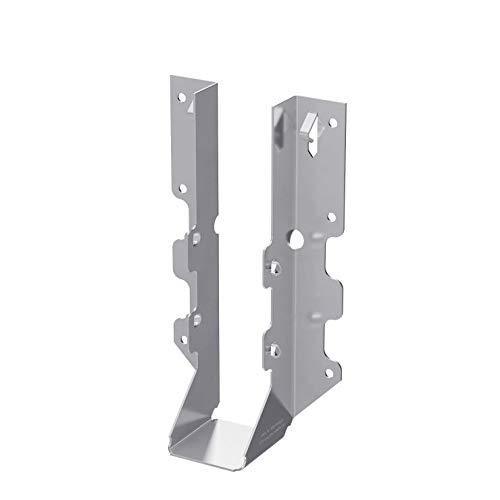

The Simpson LUS28SS LUS Stainless-Steel Face-Mount Joist Hanger from Simpson is an economical, easy-to-install structural connector engineered to provide reliable support beneath joists, rafters, or beams for a strong, lasting connection. Designed for nominal 2x8 and 2x10 lumber, this face-mount hanger features a patented double-shear nailing design that distributes the load through two points on each joist nail, delivering greater strength with fewer fasteners and faster installation. Built from 18-gauge stainless steel, it provides high and severe corrosion resistance, making it a dependable choice for demanding environments where standard galvanized connectors fall short.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, so you get a stronger connection with fewer nails and less installation time
• Speed prongs - hold the hanger in position during installation, reducing the need for extra hands and speeding up the fastening process
• Angled joist nailing - allows fasteners to be driven at an angle, making installation practical even in tight or confined spaces
• 18-gauge stainless steel construction - delivers high and severe corrosion resistance, keeping structural integrity intact in coastal, high-humidity, and other harsh environments
• Compatible with common lumber sizes - fits nominal 2x8 and 2x10 members, making it a versatile option for a wide range of framing and deck-building applications
• Accepts all common nails and specified screws - works with standard fasteners so you are not forced into specialty hardware, while still meeting the connection requirements

Why This Product

• Strength without overbuilding - the patented double-shear nailing design achieves greater load distribution through two contact points per joist nail, meaning fewer fasteners are needed to hit the same performance target, which saves time and materials on every install
• Built for severe corrosion environments - stainless steel construction goes beyond standard galvanized protection, making this hanger a reliable long-term choice for decks, docks, coastal structures, and other high-moisture applications where corrosion is a real concern
• Designed to speed up the job - speed prongs and angled joist nailing work together to simplify placement and fastening, reducing the number of steps needed to complete a secure connection, even when working in tight framing bays
• A trusted connector from an established structural hardware brand - Simpson engineered this hanger for common lumber dimensions and paired it with clear fastener specifications, giving builders and contractors a straightforward path to a code-consistent connection

Specifications

• MPN: LUS28SS
• Brand: Simpson Strong-Tie
• Material: Stainless Steel
• Finish: Stainless Steel
• Gauge: 18
• Member Size: 2x8 and 2x10
• Seat Depth: 1-3/4 in.
• Width: 1-9/16 in.
• Height: 6-5/8 in.
• Country of Origin: United States

Installation

• Use all specified fasteners; see Load Tables
• Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads
• Not designed for welded or nailer applications
• Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.148 in. x 3 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA10D)

Frequently Asked Questions

What makes the double-shear nailing design beneficial?

The patented double-shear nailing design distributes the load through two points on each joist nail, which provides greater overall strength. This means fewer nails are required for the same connection, resulting in faster installation without sacrificing structural integrity.

Is this hanger suitable for use in coastal or high-moisture environments?

Yes. The LUS28SS is constructed from stainless steel, which provides high and severe corrosion resistance, making it well-suited for coastal, high-humidity, or other environments where corrosion is a significant concern.

What fasteners are required for installing the LUS28SS?

Because this is a stainless-steel connector, it requires stainless-steel fasteners. It can be installed with Simpson Strong-Tie Strong-Drive SD Connector SS screws - (6) #9 x 1-1/2 in. in the header and (4) #9 x 2-1/2 in. in the joist - or with (10) 0.148 in. x 3 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA10D).

Can the tabs on the LUS28SS be bent or removed to fit a specific application?

No. The tabs on the LUS28SS must not be bent or removed. Modifying the hanger in this way could compromise its structural integrity and load-rated performance.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
