Product Description

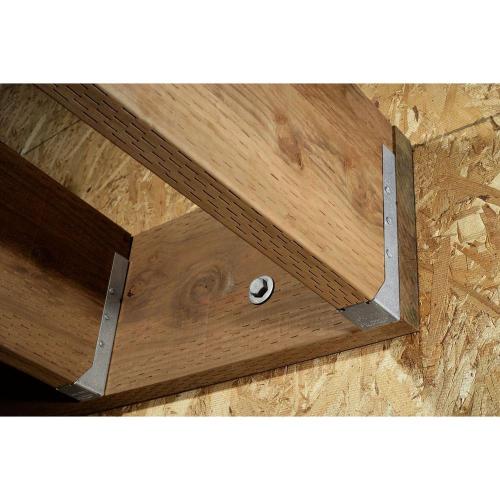

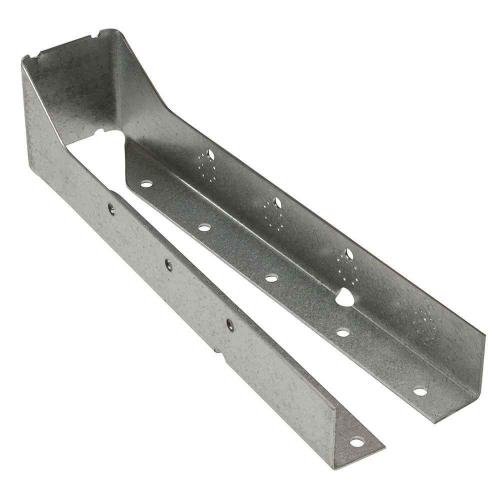

The Simpson LUC210SS LUC Stainless-Steel Face-Mount Concealed-Flange Joist Hanger is engineered by Simpson to deliver a strong, reliable connection by providing support underneath the joist, rafter, or beam. The concealed header flanges produce cleaner visible lines in exposed framing conditions, making this face-mount hanger a practical choice wherever aesthetics and structural performance both matter. Value engineered for strength and economy, the LUC210SS is designed for easier and faster installation without sacrificing load capacity.
Key Features
- Tested, load rated, and code compliant - gives builders and inspectors confidence that every connection meets required performance standards, reducing risk on the job site.
- Multiple fastener options with tested allowable loads - the flexibility to choose between Strong-Drive SD Connector SS screws or Strong-Drive SCNR Ring-Shank Connector Nails means installers can work with the fastener type that best suits the application while maintaining verified load ratings.
- Compatible with nominal 2x10 and 2x12 lumber - supports a range of common framing member sizes, adding versatility across residential and light-commercial framing projects.
- Constructed from 18-gauge stainless steel - the heavier-gauge material provides structural integrity, while the stainless steel finish delivers extra corrosion resistance for exterior and treated-wood applications where standard steel connectors may degrade prematurely.
- Concealed header flanges - keep the hanger out of the visible sight line in exposed conditions, resulting in a cleaner, more finished appearance without requiring additional trim or cover work.
Why This Product
- Built for exposed and exterior conditions - the stainless steel construction resists corrosion in outdoor environments and when paired with treated lumber, making it a dependable long-term solution where moisture and chemical exposure are concerns.
- Clean aesthetics without compromising strength - the concealed-flange design hides the header connection in visible framing situations, so contractors can meet both structural and architectural requirements with a single connector.
- Faster installation with design-to-code confidence - value-engineered for quicker placement and compatible with multiple tested fastener selections, the LUC210SS helps speed up workflow while keeping the connection fully code compliant and load rated.
- Trusted Simpson engineering - the LUC series comes from Simpson, a brand recognized for connector products that are independently tested and carry verified allowable load values, giving project teams a reliable specification to stand behind.
Specifications
- Model Number: LUC210SS
- Material: Stainless Steel
- Finish: Stainless Steel
- Gauge: 18
- Width: 1-9/16 in.
- Height: 7-3/4 in.
- Member Size: 2x10, 2x12
- Seat Depth: 1-3/4 in.
- Country of Origin: United States
Approved Applications
- Face-mount joist, rafter, and beam connections requiring concealed flanges
- Exterior applications where corrosion resistance is required
- Connections involving treated lumber where stainless steel fasteners are necessary
- Exposed framing conditions where clean, finished visible lines are desired
Frequently Asked Questions
- What fasteners are required to install the LUC210SS?
- Installation requires stainless-steel fasteners. You may use Strong-Drive SD Connector SS screws: (16) #9 x 1-1/2 in. OR Strong-Drive SCNR Ring-Shank Connector Nails: (10) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist.
- Why is stainless steel important for this hanger?
- Stainless steel offers extra corrosion resistance, making the LUC210SS well suited for exterior applications and installations involving treated wood where standard steel connectors may be prone to accelerated corrosion.
- What lumber sizes is the LUC210SS compatible with?
- The LUC210SS is suitable for nominal 2x10 and 2x12 lumber, providing flexibility across common framing member sizes.
- Is the LUC210SS tested and code compliant?
- Yes. LUC-series hangers are tested, load rated, and code compliant, giving builders and inspectors confidence that the connection meets required structural standards.
