Product Description

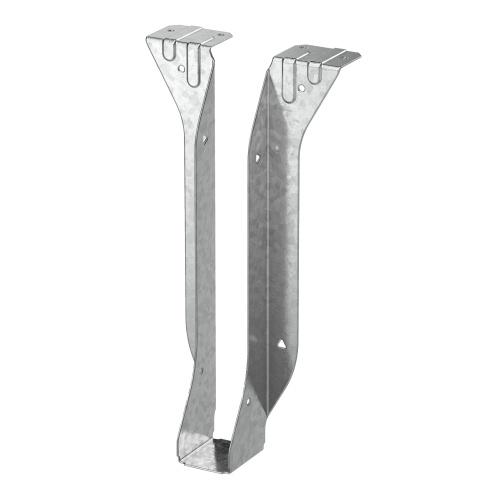

Simpson JB212A JBA Galvanized Top-Flange Hanger for 2x12 is a Simpson Strong-Tie top-flange joist hanger engineered for solid sawn lumber applications. Designed to support light-to-medium loads while providing uplift, this cost-effective hanger is built from 18-gauge steel with a G90 zinc galvanized finish for reliable corrosion resistance. Optional triangular nail holes allow for maximum nailing to increase allowable loads, making the JB212A a dependable choice for framing projects that demand performance under earthquake or high-wind loading conditions.
Key Features
- Unique two-level embossment provides added stiffness to the top flange
- Nail locations that enable effective use with nailers
- Additional load rating for a 2x or 3x nailer
- Engineered with increased uplift loads for earthquake or high-wind loading
- Seat width: 1-9/16 in.
- Nominal joist size: 2x12
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: JB212A
- Member Size: 2x12
- Gauge: 18
- Seat Width: 1-9/16 in.
- Height: 11-1/8 in.
- Coating / Finish: Zinc Galvanized, G90
- Country of Origin: United States
Frequently Asked Questions
- What size joist is the JB212A designed to support?
- The JB212A is designed for a nominal 2x12 joist size, with a seat width of 1-9/16 in. and a height of 11-1/8 in., making it specifically sized for standard 2x12 solid sawn lumber applications.
- What nails are required to install the JB212A?
- Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist. Ledgers must be evaluated for each application separately - check top-flange dimension, nail length, and nail location on ledger.
- Is the JB212A suitable for high-wind or seismic applications?
- Yes. The JB212A is engineered with increased uplift loads specifically for earthquake or high-wind loading conditions, providing reliable structural performance in demanding environments.
- What corrosion protection does the JB212A offer?
- The JB212A features a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it suitable for applications where moisture exposure is a concern.
