Product Description

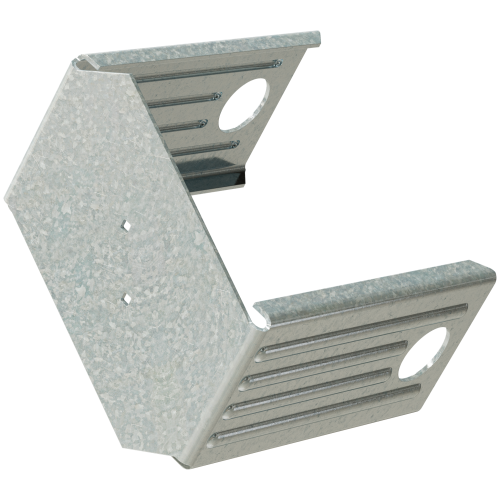

The Simpson ICFVL8 ICFVL Ledger Connector with 8-in. Legs by Simpson is engineered to meet the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. Designed to provide both vertical and lateral in-plane performance, the ICFVL8 offers significant advantages over traditional anchor bolting - including better on-center spacing in most cases, faster installation, and no protrusions.
Key Features
- Model ICFVL8 accommodates up to 4 1/2-in. thick ICF wall forms
- Embossments on the 8-in. embedded legs for additional stiffness
- Two diamond-shaped holes located in the center of the connector allow screw installation to hold it in place during concrete pour and to aid in proper alignment during installation; remove center screws prior to ledger installation
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- Model Number: ICFVL8
- Gauge: 14
- Leg Length: 8 in.
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Attaching wood ledgers to insulated concrete form (ICF) walls
- Attaching steel ledgers to insulated concrete form (ICF) walls
- Applications requiring both vertical and lateral in-plane performance at ICF wall connections
- ICF wall forms up to 4 1/2 in. thick
Frequently Asked Questions
- What ICF wall thickness does the ICFVL8 support?
- The ICFVL8 accommodates ICF wall forms up to 4 1/2 in. thick, making it suitable for a wide range of standard ICF construction applications.
- Do I need any additional components to attach a wood ledger using the ICFVL8?
- Yes. For wood ledger applications, the ICFVL-W (for single 2x ledger sizes) or the ICFVL-CW (for single LVL ledger sizes) is required and sold separately.
- What is the purpose of the diamond-shaped holes in the center of the connector?
- The two diamond-shaped holes allow screw installation to hold the connector in place during the concrete pour and to aid in proper alignment. These center screws must be removed prior to ledger installation.
- How does the ICFVL8 compare to traditional anchor bolting methods?
- The ICFVL8 offers several advantages over traditional anchor bolting, including better on-center spacing in most cases, faster installation, and no protrusions extending from the wall face.
Related Products
Note: For wood ledger applications, the ICFVL-W or ICFVL-CW is required (sold separately).
