Product Description

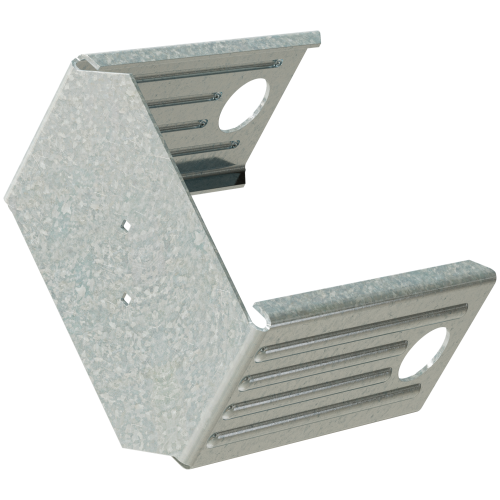

The Simpson ICFVL6 ICFVL Ledger Connector with 6-in. Legs by Simpson is engineered to meet the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. Designed to provide both vertical and lateral in-plane performance, the ICFVL6 offers significant advantages over traditional anchor bolting, including better on-center spacing in most cases, faster installation, and no protrusions.
Key Features
- Model ICFVL6 accommodates up to 3 1/4-in. thick ICF wall forms
- Embossments on the 6-in. embedded legs for additional stiffness
- Two diamond-shaped holes located in the center of the connector allow screw installation to hold it in place during concrete pour and to aid in proper alignment during installation; remove center screws prior to ledger installation
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- Model Number: ICFVL6
- Gauge: 14
- Leg Length: 6 in.
- Max ICF Wall Thickness: 3 1/4 in.
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Mounting wood ledgers to insulated concrete form (ICF) walls
- Mounting steel ledgers to insulated concrete form (ICF) walls
- Applications requiring both vertical and lateral in-plane performance at the ledger connection
Frequently Asked Questions
- What is the maximum ICF wall thickness the ICFVL6 can accommodate?
- The ICFVL6 accommodates up to 3 1/4-in. thick ICF wall forms.
- What additional components are needed for wood ledger applications?
- For wood ledger applications, the ICFVL-W is required for single 2x ledger sizes, or the ICFVL-CW is required for single LVL ledger sizes. Both are sold separately.
- What is the purpose of the diamond-shaped holes in the center of the connector?
- The two diamond-shaped holes allow screw installation to hold the connector in place during the concrete pour and to aid in proper alignment during installation. The center screws must be removed prior to ledger installation.
- How does the ICFVL6 improve upon traditional anchor bolting methods?
- The ICFVL6 system offers better on-center spacing in most cases, faster installation, and no protrusions compared to traditional anchor bolting methods.
Related Products
Note: For wood ledger applications, the ICFVL-W or ICFVL-CW is required (sold separately).
