Product Description

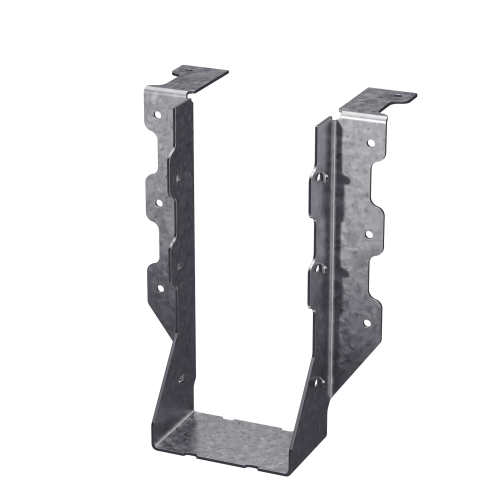

The Simpson Strong-Tie HUS48TF Top-Flange Face Mount Hanger is a heavy-duty hybrid joist hanger engineered to combine the structural advantages of both face-mount and top-mount hanger designs. Built for 4x8 lumber, this 14-gauge galvanized hanger delivers exceptional load performance through double-shear nailing, where each nail is installed into both the joist and header to distribute the load across two points per joist nail for greater strength and reliability in demanding framing applications.
Key Features
- Heavy-duty hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers
- Features an embossed top flange that provides additional connection strength
- Designed with double-shear nailing combined with face-nailing for high loads
- HUSTF-series hangers are tested, load rated and code compliant
- Zinc Galvanized G99 coating for corrosion resistance
- This economical joist hanger cannot be modified
- Not acceptable for nailer or welded applications
Specifications
- Model No.: HUS48TF
- Joist Size: 4x8
- Gauge: 14
- Width: 3-9/16 in.
- Height: 7-1/4 in.
- TF: 1-11/16 in.
- Coating/Material: Zinc Galvanized, G99
- Country of Origin: United States
Approved Applications
- Standard framing applications using 4x8 dimensional lumber joists
- High-load connections requiring double-shear and face-nailing combinations
- Applications with 3x carrying members using 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist
Options
Contact us for Configurable Options and Special orders. Some products available in HDG. Contact us
Frequently Asked Questions
- What size fasteners are required for installing the HUS48TF?
- The HUS48TF requires 0.162" x 3-1/2" nails. When used with 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist. Always use all specified fasteners for a code-compliant installation.
- What makes the HUS48TF a hybrid hanger?
- The HUS48TF is considered a hybrid hanger because it combines the features of both face-mount and top-mount hanger designs. It uses an embossed top flange for added connection strength along with face-nailing and double-shear nailing to achieve high load capacity.
- Can the HUS48TF be used in nailer or welded applications?
- No. The HUS48TF is not acceptable for nailer or welded applications. It is also not field-modifiable, so it must be installed exactly as specified without any alterations.
- Is the HUS48TF tested and code compliant?
- Yes. HUSTF-series hangers, including the HUS48TF, are tested, load rated, and code compliant, making them suitable for use in construction projects that require verified structural performance.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
